Buell Firebolt XB9R / XB12R 2006 Factory Service Manual (P/N 99493-06Y)
622 Pages • ZIP Download: 30 Printable PDFs • 21.82 MB
Buell Models Covered & Key Technical Specifications
Models: Firebolt XB9R, Firebolt XB12R
Sub-models / Variants: 1203cc, 984cc. Early VIN format (builds before May 2005), position 12: 0 = US Calibration (DOM, CAL, CAN markets), 1 = EU Calibration (EUR, ENG, AUS markets), 2 = US Calibration (Japan Calibration, JPN market).
Model Year: 2006
VIN codes: Positions 4–5 identify the Firebolt (AX). Positions 6–7 identify the engine: XB9R (12) and XB12R (14) in the early VIN format, XB9R (01) and XB12R (03) in the revised format. For builds after May 1, 2005, position 12 identifies the model: XB9R (1) or XB12R (3). In the revised format, position 8 identifies the market, including California (L) and Japan (J).
-
Engine displacement: 984 cc (XB9R) and 1203 cc (XB12R)
-
Fuel tank capacity: 3.82 gallons (14.5 liters)
-
Transmission fluid capacity: 1.0 quart (0.95 liters)
-
Tire pressure (Solo): Front 36 PSI (248 kPa), Rear 38 PSI (262 kPa)
-
Spark plug type: 10R12A
-
Spark plug gap: 0.035 in. (0.9 mm)
-
Engine idle speed: 1050–1150 RPM
Buell Manual Features & Selected Content Preview
This factory service manual covers the 2006 Buell Firebolt XB9R and XB12R. The Buell publication is P/N 99493-06Y, printed in September 2005. The chassis chapter explains the early and revised VIN formats. Its VIN tables also list other Buell families for identification. The service procedures cover the two Firebolt models.
PDF Search and Chapter Navigation
Text search and navigation: All files contain searchable text. The opening file and the service and appendix files have bookmarks. The separate contents files use links, and a few links between files have missing destinations. Small pin numbers and wire-color codes on the denser wiring diagrams are legible when zoomed in.
The ZIP contains 622 pages across 30 printable PDFs. That includes 2 opening pages (the cover and a print-date page), 58 for Maintenance, 100 for Chassis, 108 for Engine, 132 for Fuel System, 24 for Starter, 56 for Drive/Transmission, 76 for Electrical, and 66 for the appendices and their contents. Seven blank backs of contents pages are included in those counts.
Firebolt Overhaul, Chassis Service, and Fault Diagnosis
These are selected topics from the manual. It also includes speedometer testing and hose-routing diagrams.
-

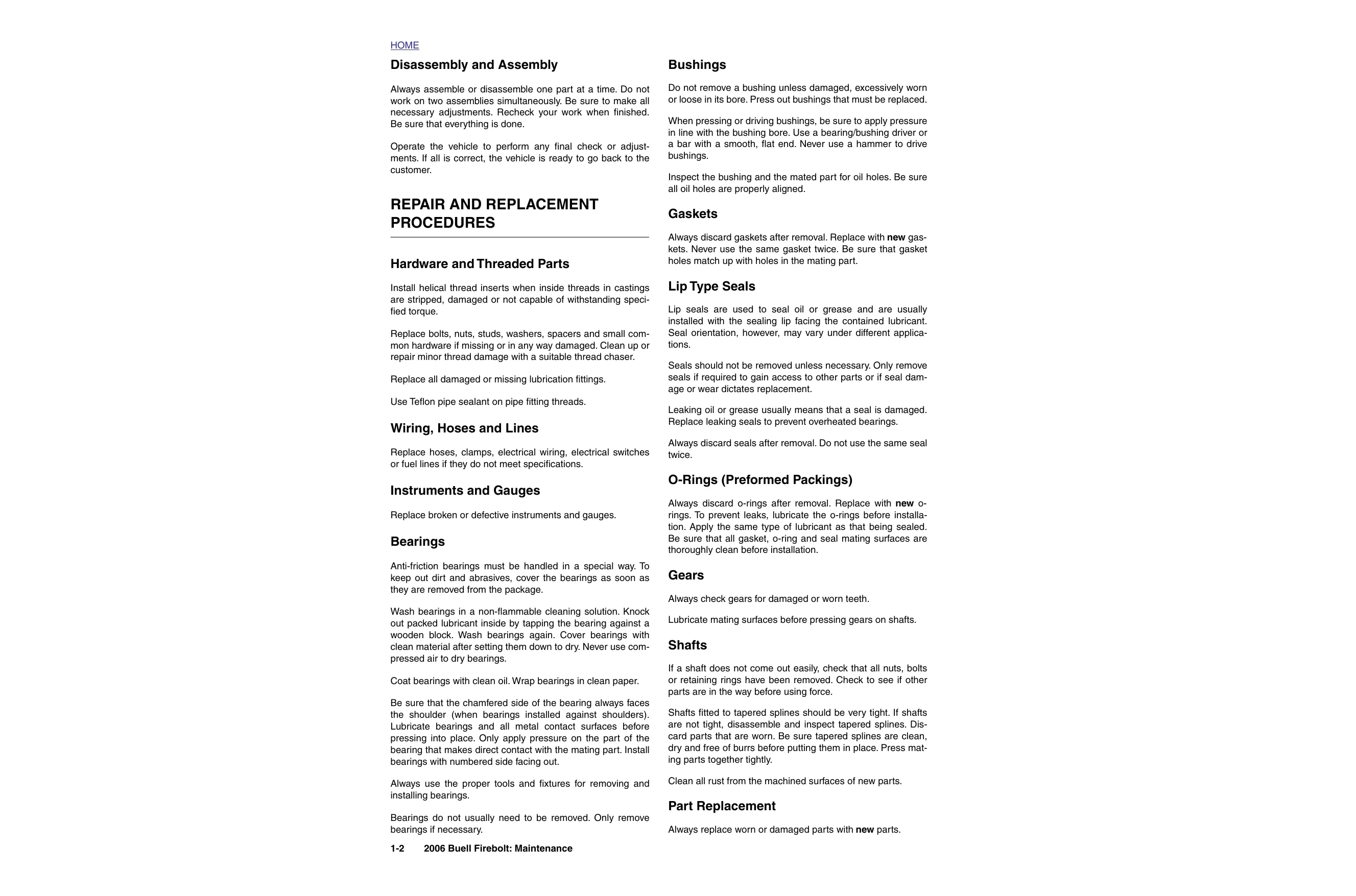

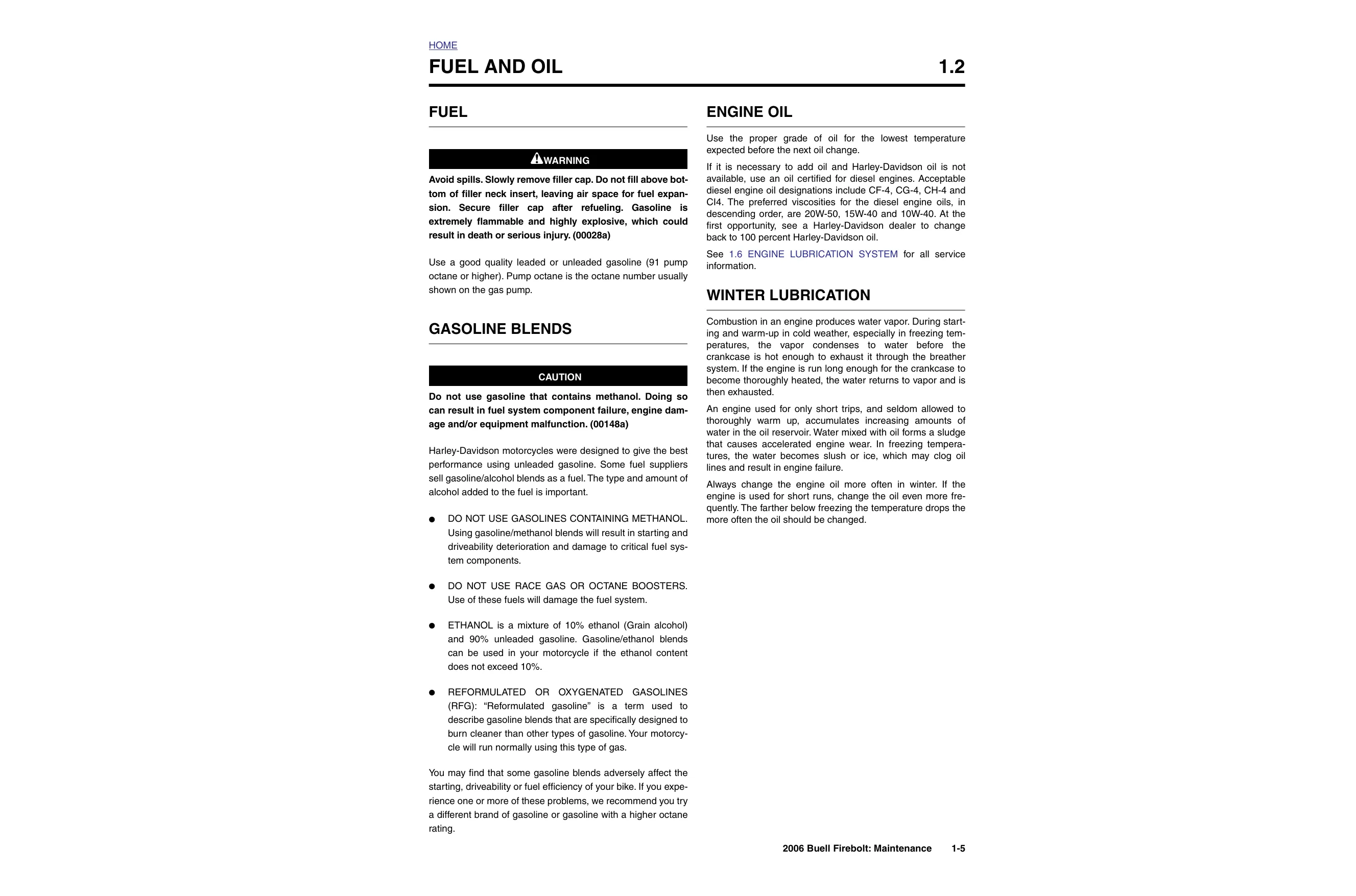

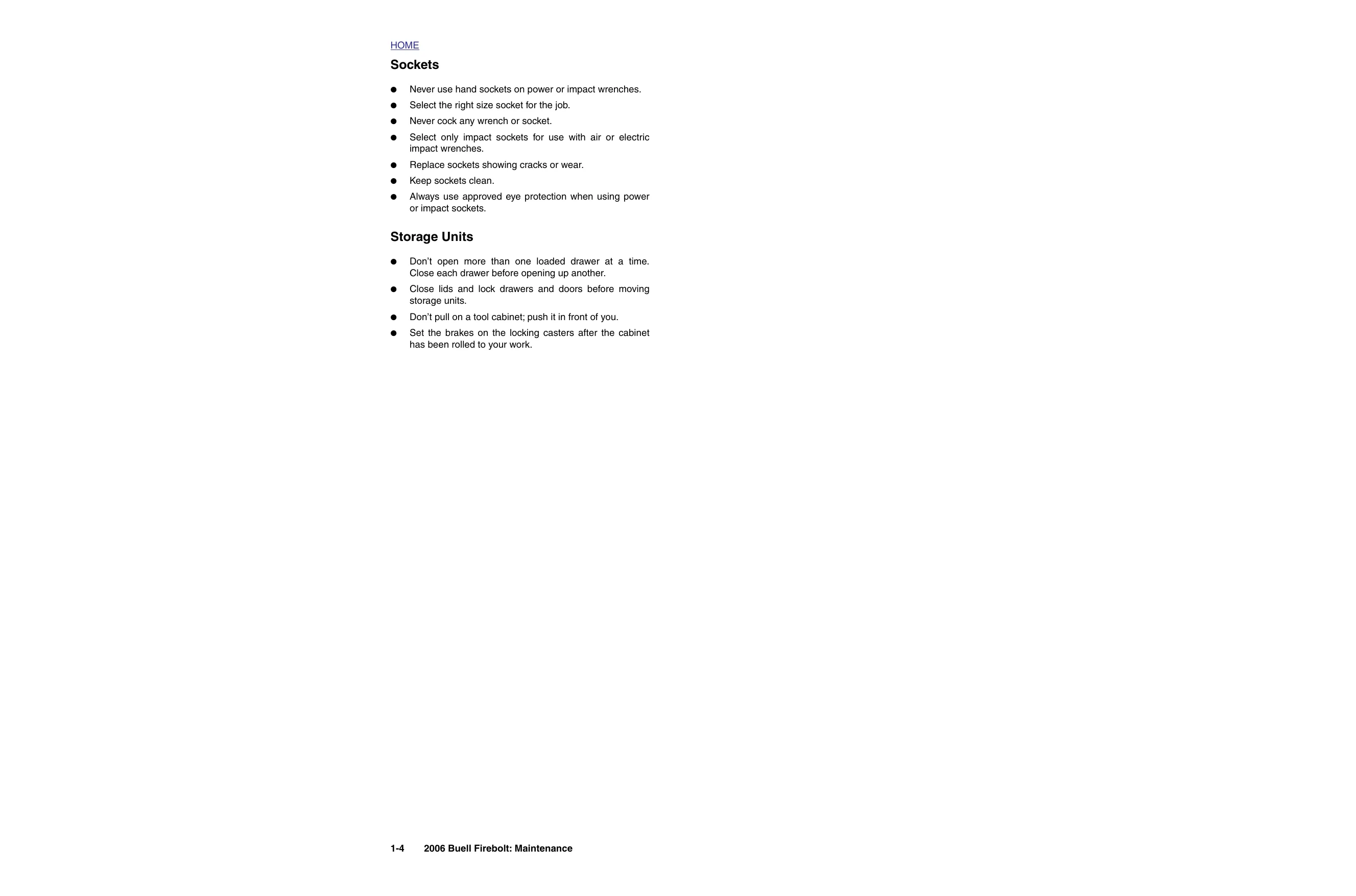

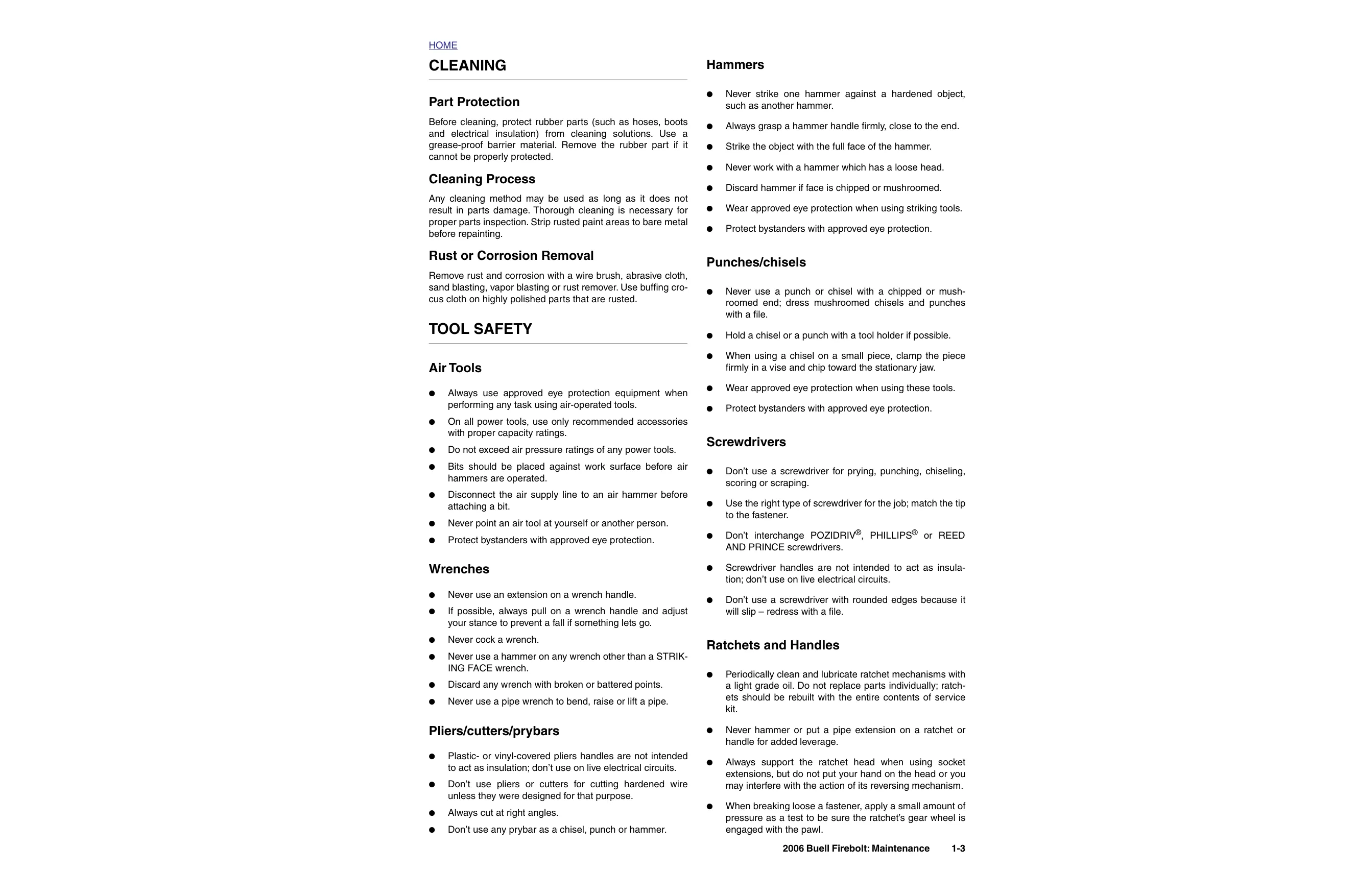

Scheduled maintenance: Engine oil and filter changes, transmission lubrication, battery care, primary-chain and clutch adjustment, spark plugs, air-cleaner and throttle-control service, and storage.
-
Engine work: Engine rotation for top-end access, full engine removal and installation, cylinder-head and piston repair, oil-pump service, cam timing, crankcase separation, and flywheel work.
-
DDFI troubleshooting: No-start and drivability flowcharts, Digital Technician tests, breakout-box checks, wiggle tests for intermittent wiring faults, and fuel-pressure and intake-leak tests.
-
Chassis and brakes: Wheel and bearing service, master-cylinder and caliper repair, brake bleeding, front-fork disassembly, steering-head bearing service, rear shock, isolators, and swingarm work.
-
Clutch and driveline: Clutch and five-speed constant-mesh transmission disassembly and reassembly, primary-drive service, and final-drive belt inspection and replacement.
-
Starting and charging: Starter relay and current-draw tests, voltage-drop checks, alternator and regulator diagnosis, connector repair, and wiring diagrams.
-
Model and market equipment: XB12R interactive-exhaust service, California evaporative-emissions procedures, and a Japan-only active-intake appendix.
The manual suits mechanically qualified technicians and owners with the proper service tools, including the specified fixtures and test equipment for teardown and diagnosis.
Engine Access and Chassis Setup
The aluminum frame doubles as the fuel tank, while the swingarm serves as the oil reservoir. The Engine Mounting System drawings identify the isolators and tie bars. The engine-rotation procedure gives access to the top end with the powertrain still in the chassis. Use the specified lifting, jacking, and restraint arrangements for engine rotation, rear-isolator work, and swingarm removal.
The suspension tables group front and rear preload, compression damping, and rebound damping by rider and cargo weight. Chassis references include tire fitment and inflation data, rotor runout limits, and the Front and Rear Brake Systems, Right Side View. Maintenance also covers ignition timing, headlight aiming, throttle position sensor (TPS) adjustment, and symptom-based troubleshooting.
Fuel Injection, Exhaust, and Wiring
The fuel-system chapter explains open- and closed-loop operation of the returnless DDFI system. It shows how to read stored codes through the check-engine lamp and distinguishes XB9R and XB12R intake hardware and control systems. Separate procedures cover the ECM, sensors, fuel pump, and throttle body.
On the XB12R, the interactive exhaust coverage follows the muffler valve and cable through the actuator, dedicated harness, ECM command, and position-feedback circuit. The Japan-only active-intake appendix covers fault diagnosis, Digital Technician verification, cable and stop adjustment, and solenoid service.
The 2006 XB Firebolt Engine Management Circuit helps trace faults from the ECM to the relevant connector. The connector appendix shows pin and cavity identification and terminal repair for AMP Multilock, Deutsch, and Packard connectors.
Assembly References and Special Tools
Torque tables, fuel and lubricant requirements, engine clearances, wear limits, and electrical test specifications sit alongside the related jobs. Assembly references include Cam and Pinion Gear Location and Timing Mark Indexing, Clutch Pack Stack-Up, and Transmission Power Flow.
The primary-drive procedures specify HD-38362 for the XB9R and HD-46283 for the XB12R, so the correct locking tool can be selected before clutch work. Other listed tools include the HD-43984 crankshaft locking tool, HD-46285 transmission assembly fixture, B-45522 fuel-pressure gauge adapter, HD-42682 breakout box, and HD-44750 Digital Technician.
Reversing the marked clutch mainshaft washer can damage the transmission. Twisting the drive belt or rolling it onto a sprocket while only partly seated can damage the belt.
Selected Compression, Leakdown, and Fuel-Pressure Checks
For either Firebolt, the compression test gives a normal final reading of at least 120 psi (827 kPa) after 5–7 compression strokes, with the throttle wide open and the engine at operating temperature when possible. The warm-engine leakdown test flags 12% or more for further diagnosis, with the throttle wide open and the piston at top dead center on the compression stroke.
The DDFI fuel-pressure test gives a normal range of 49–51 psi (338–352 kPa) at 2,500–3,000 rpm for both models. The accompanying diagnostic flowchart covers readings outside that range.
