2009 Harley-Davidson Softail, Fat Boy, Rocker, Night Train Service Manual

Contains procedures for maintenance, diagnostics, removal, installation, and adjustment for 2009 Harley-Davidson Softail, Fat Boy, Rocker, and Night Train models. Includes part numbers like 99482-09.

4.5starstarstarstarstar_half(2)
visibility Preview Available

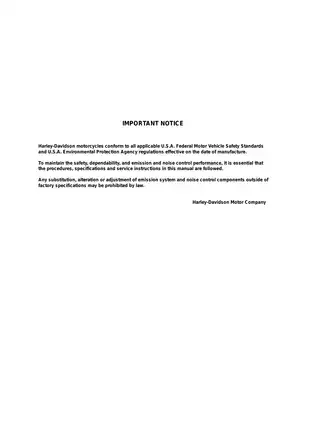

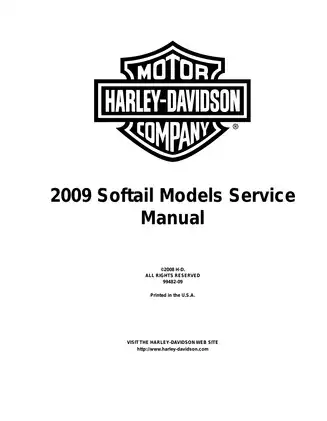

Harley-Davidson 2009 Harley-Davidson Softail, Fat Boy, Rocker, Night Train Service Manual manual page preview - page 1 of

Sample pages from the 2009 Harley-Davidson Softail, Fat Boy, Rocker, Night Train Service Manual manual

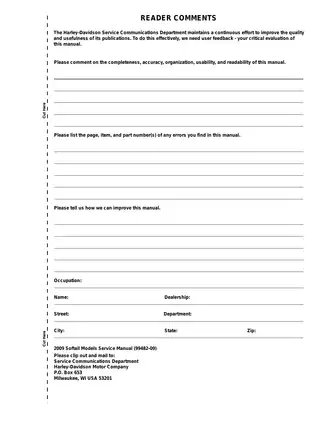

Harley-Davidson 2009 Harley-Davidson Softail, Fat Boy, Rocker, Night Train Service Manual manual preview page 3 - thumbnail
info_outline Click thumbnails to preview different pages
$18.20 (incl. VAT) Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Harley-Davidson Models Covered & Key Technical Specifications

Models: 2009 Harley Davidson Softail, Fat Boy, Rocker, Night Train, FLST Heritage Softail, FLSTC Heritage Softail Classic, FLSTF Fat Boy, FLSTN Softail Deluxe, FLSTSB Softail Cross Bones, FXCW Softail Rocker, FXCWC Softail Rocker C, FXSTB Night Train, FXSTC Softail Custom
Sub-models / Variants: 2WD, Heavy Duty, Touring, Deluxe, Classic, Springer, Laced Wheel, Disc Wheel
Trade Names: Softail, Fat Boy, Rocker, Night Train, Cross Bones
Build Years: 2009
Technical Data:

  • Engine: Twin Cam 96B, 1584 cc air-cooled, fuel-injected, balanced
  • Transmission: 6-speed
  • Oil Capacity (with filter): 3.5 qt (3.31 L)
  • Primary Chaincase Capacity: 32 oz (0.95 L) wet, 40 oz (1.18 L) dry
  • Transmission Lubricant Capacity: 32 oz (0.95 L)
  • Engine Idle Speed: 950-1050 RPM
  • Spark Plug Gap: 0.038-0.043 in (0.97-1.09 mm)
  • Drive System: Belt drive
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27022 / Laura Peterson
File Size:
51.58 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Motorbike
Last updated / verified
Oct 23, 2025

Harley-Davidson Manual Features & Content Preview

2009 Harley-Davidson Softail Coverage Overview

  • Covers 2009 Harley-Davidson Softail motorcycles, including the Fat Boy, Rocker, Night Train, Heritage Softail Classic, and Cross Bones variants
  • Official Harley-Davidson publication P/N 99482-09, 2008 first edition
  • Contains 68 exploded-view diagrams, 17 fastener torque tables, and 2 extensive wiring schematic appendices
  • Accessible from your device as soon as the order is placed
  • Full-text search finds any part number in seconds
  • Laid out for standard letter and A4 printing
  • This 2008 first edition provides the factory-authorized procedures and technical data for the 2009 Softail production line, serving as the primary source for service and maintenance intervals.

Document Content Walkthrough

This 2009 Harley-Davidson Softail service publication details the maintenance and repair procedures for the 1584 cc Twin Cam 96B engine platform. The coverage begins with a comprehensive maintenance schedule, guiding owners and technicians through oil changes, primary chain adjustments, and battery care. Subsequent chapters detail the chassis, including front and rear wheel service, fork oil replacement, and steering head bearing adjustments.

The fuel system section documents EFI troubleshooting and sensor reference values, while the electrical section covers main harness routing, battery maintenance, and lighting alignment. Additionally, the manual describes the disassembly and reassembly of the transmission, engine top end, and internal engine components, with dedicated appendices for connector repairs, conversion tables, and wiring diagrams.

Technical Specification Highlights

  • Engine oil capacity for a wet refill is documented at 3.5 quarts.
  • Transmission drain plug torque is specified at 14–21 ft-lbs.
  • Spark plug gap for the 1584 cc engine is listed at 0.038–0.043 in.
  • Primary chaincase drain plug torque is documented at 14–21 ft-lbs.
  • Maximum brake disc lateral runout is listed at 0.008 in.

Note: This document provides service instructions for the 2009 Harley-Davidson Softail model line, covering engine, chassis, electrical, and maintenance specifications for the factory-authorized repair of these specific motorcycle configurations.

Manual FAQ, Purchase & Download Details

Does this 2009 Softail service manual include detailed chapters for top end and bottom end engine service? keyboard_arrow_down

Yes, this manual includes comprehensive sections covering both top end and bottom end engine service, including detailed information on cylinder heads, pistons, cam support plates, and crankcase components.

What system coverage depth is provided by the document for the Harley-Davidson Softail model line? keyboard_arrow_down

Manual provides extensive coverage across the entire motorcycle, ranging from routine maintenance and chassis components to complex transmission and electrical systems. It also includes specific appendices for wiring diagrams, connector repair, and various technical conversions.

Which specific publication identifiers and model references are included in this service manual? keyboard_arrow_down

Document is identified by publication number 99482-09 and explicitly covers the 2009 Harley-Davidson Softail model family, including variants such as the Fat Boy, Rocker, Night Train, Heritage Softail Classic, Deluxe, Cross Bones, and Custom.

Can I find technical specifications like torque values and fluid capacities in this document? keyboard_arrow_down

Manual contains dedicated sections in each chapter that list fastener torque values for critical components. It also provides reference tables for fluid capacities, service wear limits, and general specifications for the engine, transmission, and chassis systems. This compilation is intended to provide necessary reference data for the 2009 Softail model lineup.
