2004–2006 Yamaha EF1000iS Generator Service Manual, Parts Catalog & Owner’s Manual (P/N LIT-19626-01-19)

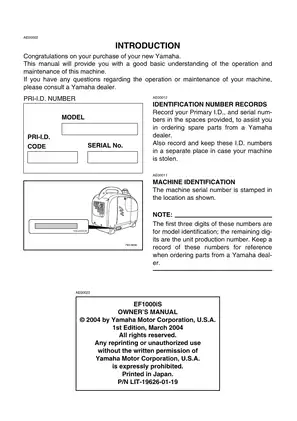

This Yamaha EF1000iS generator manual set for 2004–2006 combines the 7VV2/7VV3/7VV4 Service Manual (cover code 7VV281974000), U.S. Owner’s Manual (P/N LIT-19626-01-19, cover code 7CG-28199-10; first edition March 2004), and USA 7CG2 Parts Catalog (1C7CG-110E1).

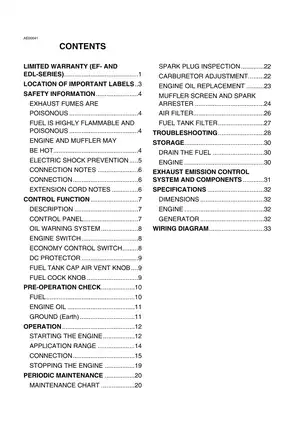

Text search, bookmarks and wiring detail: Most Owner’s Manual and parts-catalog text is searchable; the service procedures are not. Bookmarks cover all three documents, although the service “Front Cover” bookmark opens the contents. Small wiring labels require zooming.

• Engine repair: Engine removal, internal teardown, crankshaft and piston inspection, valve-train service, camshaft timing references, and recoil starter overhaul.

• Generator and ignition: Rotor and stator-coil replacement, TCI ignition testing, AC/DC output diagnosis, and throttle-control troubleshooting.

• Carburetor and fuel system: Carburetor disassembly, float-height inspection, choke-cable and throttle-motor installation, fuel-pump checks, and fuel-tank service.

• Periodic maintenance: Valve-clearance adjustment, compression testing, lubrication intervals, air-filter service, muffler-screen cleaning, and spark-arrester maintenance.

• Control box and wiring: Panel disassembly, switch-continuity checks, market-specific circuit diagrams, connector terminal layouts, and wire-routing drawings.

• USA parts identification: Illustrated parts lists with component numbers and quantities for the engine, generator, frame, covers, and control box.

The repair sections suit technicians familiar with small-engine overhaul and electrical test equipment; the Owner’s Manual supports operation and routine maintenance.

Engine Overhaul and Inspection Data

The document details inspection procedures for the crankshaft, piston, and valve train. Work on the 50cc OHV engine extends to crankcase separation, camshaft and cam follower inspection, and checks of the push rods and rocker arms.

Mechanics get access to wear limits for the cylinder bore and piston ring end gaps, plus crankshaft runout and piston-pin inspection data. Connecting rod oil clearance is checked with Plastigauge; valve service includes spring measurements and valve-seat contact checks.

Component-specific torque tables, lubrication points, and oil-capacity data accompany the repair procedures.

Exploded views for Recoil Starter and Rotor and Crankshaft, Piston and Piston Ring appear beside removal and installation tables. Illustrated symbols identify lubricants and tightening points. Rotor service identifies puller YU-33270.

The bearing service notes warn that spinning dry bearings with compressed air can damage their running surfaces.

Mikuni Carburetor and Fuel Pump Service

The service data identify the Mikuni BV15-11, ID 7VV01. Carburetor procedures extend to the float chamber, needle assembly, main and pilot jets, and passages. Float height is an inspection item; the manual specifies that it is not adjustable.

Choke-cable fitting and throttle control motor installation include cable-position and shaft-alignment illustrations. Fuel-pump inspection and fuel-change-link service are also covered, with a specific caution that excessive force during pump testing can damage the pump.

Ignition, Generator Output and Throttle Diagnosis

The Ignition System Troubleshooting Chart addresses no-spark and weak-spark complaints through spark-plug cap, ignition-coil, engine-switch, oil-level-switch, and wiring checks, with fault paths to the speed limiter and TCI unit. Test equipment references include pocket tester YU-03112 / 90890-03112.

Separate Generator System Troubleshooting Charts address weak or missing AC and DC output, including DC circuit-breaker checks. Winding voltage and resistance tests help distinguish stator-coil faults from rectifier or control-unit problems before replacement parts are selected.

Throttle-control charts cover starting, stalling, uneven speed, and poor speed response, including economy-switch operation and motor-coil checks. The inverter control unit is diagnosed as an assembly; the manual does not provide circuit-board repair procedures.

Voltage-specific circuit diagrams distinguish Canadian, European, Australian, and general-market configurations. Control Box Panel and Behind Control Box and Engine and Generator routing drawings show wire colors, terminal arrangements, grounding leads, and the European noise filter.

Follow the manual’s grounding and electric-shock precautions when testing the generator.

U.S. Operation and 7CG2 Parts Coverage

The Owner’s Manual adds control functions, load-application guidance, AC/DC connections, storage, and identification of exhaust-emission components, including the TCI magneto and PCV system.

The parts catalog is specifically for USA 7CG2, 120V/60Hz, starting at 7CG-0200101. Its exploded views identify replacement parts; they are not assembly instructions. The U.S. Owner’s Manual and parts catalog specify NGK CR4HSB, while the 7VV service data specify CR6HSB, so these references need to stay matched to the correct configuration.

Three Manuals in One Printable PDF

The single English PDF totals 174 pages: Owner’s Manual, 39 pages; warranty registration card, 2 pages; Service Manual, 108 pages; and Parts Catalog, 25 pages. The covers, blank service page, and warranty card are already included in this total.
