1992-1999 Yamaha XJ600S Service Manual
Complete factory service documentation for XJ600S repair and diagnostics. Covers engine, chassis, electrical systems, and parts specifications. Technical reference for mechanics and technicians.
Manual Preview

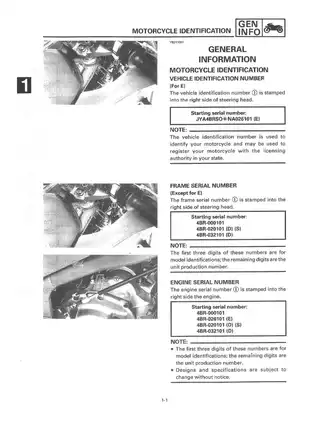

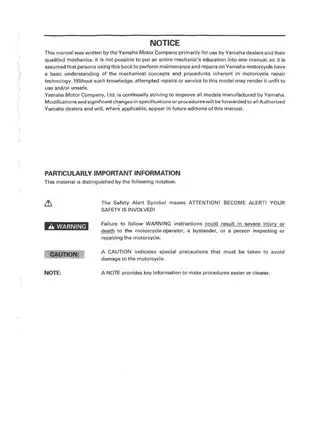

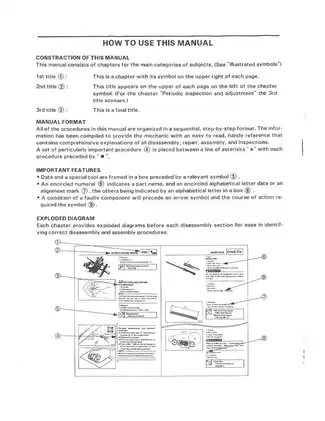

Sample pages from the 1992-1999 Yamaha XJ600S Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Yamaha XJ600S — 1992–1999 Procedural Technical Consolidated Unit.
- Calibrated Rotation Data: Engine displacement achieves 598.8 cm³ (36.6 cu in) as the four-cylinder parallel architecture Margin.
- Rated Shipping Weight: Basic motorcycle weight is calibrated to 197 kg (434 lb) with oil and full fuel tank Protocol.
- Published Maximum Resolution: Compression pressure defines 1,100 kPa (11.0 kg/cm², 156 psi) at standard combustion chamber Architecture.
- Authorized Fluid Levels: The fuel tank capacity requires 17.0 L (3.74 Imp gal, 4.49 US gal) for optimal operation Norms.
- Maximum Wattage Specs: Headlight bulb power is rated at 60W/55W dual filament (quartz halogen) providing peak luminous Bounds.
- Documented Linear Velocity: Engine idle speed is standardized to 1,150–1,250 r/min (revolutions per minute) maintenance Topology.
Professional Workshop Service Manual & Technical Specifications
Unified Technical Manual: 1992-1998 Yamaha XJ600S Motorcycle Service Manual Manual-Nexus
Maintenance-Category: XJ600S (1992-1999) // Technical-Scope: Motorcycle Service Protocols / Engine and Chassis Systems // Calibration-Scope: Specifications and diagnostic procedures for air-cooled 4-stroke DOHC parallel twin-cylinder engines.
| System Overview | Documentation Focus | Coverage Scope |
|---|---|---|
| Engine Architecture | Covers cylinder head, camshaft, valves, timing chain tensioner, and piston assembly procedures | Complete specifications for all engine components |
| Transmission and Drivetrain | Documents clutch operation, primary and secondary reduction systems, transmission gears, and drive sprocket installation | Full assembly and disassembly sequences included |
| Electrical Components | References ignition timing, T.C.I. digital system, A.C. magneto generator, and starter motor operation | Complete electrical specifications and wiring guidance |
The manual presents information on engine disassembly and cylinder head removal, which encompasses timing chain adjustment, camshaft cap installation, and valve spring measurement procedures. Technical specifications are provided for the 598.8 cm³ displacement, which features a 58.5 x 55.7 mm bore and stroke configuration. Accurate documentation identifies clutch assembly components, including friction plates, clutch springs, and pressure plate configurations, supporting both repair and replacement scenarios.
Integrated Standard
Removal procedures are documented for fuel tank, cowling, and side cover assemblies, enabling access to internal engine components and auxiliary systems. The document includes torque specifications for connecting rod nuts, primary drive gear assemblies, and crankcase fastening sequences. Brake system documentation covers front and rear disc brake components, including caliper piston assemblies, master cylinder kits, and brake pad specifications with wear limit references.
Technical Protocol
Factory specifications are documented for the 12V electrical system, including battery capacity (8Ah), charging system output (14V, 21A at 5,000 r/min), and ignition coil resistance values. Suspension components are detailed with front fork travel (140 mm), rear shock absorber preload adjustment positions (1-7 range), and steering head bearing adjustment torque values. The manual documents transmission gear ratios across six speeds, primary reduction ratio (2.225), and secondary chain drive reduction ratio (3.000).
Strategic Methodology
Carburetor synchronization procedures reference vacuum pressure readings (34.58–35.91 kPa), Mikuni BDST28 carburetor jet specifications, and idle speed adjustment at 1,150–1,250 r/min. Wheel specifications include tire sizes (110/80-17 front, 130/70-18 rear), rim runout limits (2.0 mm radial and lateral), and static wheel balance adjustment techniques. The document includes wiring diagrams, cable routing instructions, and electrical connector identification for spark plug leads, AC magneto leads, and neutral/oil level switch assemblies.
Precise Architecture
Inspection and maintenance sections cover valve clearance (0.11–0.15 mm intake, 0.21–0.25 mm exhaust), piston-to-cylinder clearance (0.025–0.045 mm), and main journal bearing oil clearance (0.014–0.053 mm). Clutch friction plate wear limit is specified at 2.7 mm, with complete friction and clutch plate installation sequences provided. Air filter element cleaning procedures and fuel line inspection guidance are documented for periodic maintenance intervals (6,000 km, 12,000 km, and 24,000 km service points).
Systematic Topology
The manual documents torque specifications for the drive sprocket nut to ensure proper power transmission security. Comprehensive brake system information includes DOT #3 or #4 fluid specifications, caliper piston removal techniques, and master cylinder disassembly procedures. Cable and hose routing diagrams show fuel hose, vacuum hose, throttle cable, and clutch cable positioning for correct installation and operation guidance.
