1994–1997 Yamaha WaveRaider RA700 / RA760 / RA1100 Service Manual (LIT-18616-RA-00)

• Covers 1994–1997 Yamaha WaveRaider PWC models including the RA700, RA700A, RA700B, RA760, and RA1100 series

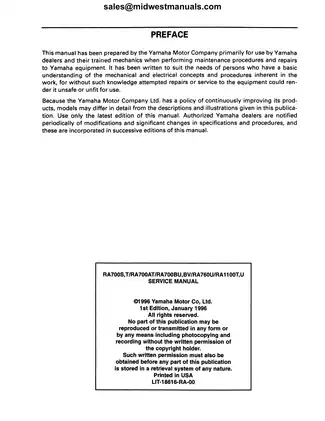

• Official Yamaha publication P/N LIT-18616-RA-00, first edition January 1996
• Contains 43 exploded-view diagrams and 18 technical service charts across 290 pages
• Serves as the primary reference for the 1994–1997 WaveRaider production run, detailing the transition to the 1100 triple-cylinder engine variant
• Delivers step-by-step repair procedures for carburetor synchronization, oil injection pump bleeding, and impeller clearance checks to bypass expensive dealership visits
• Explains complete teardowns for critical assemblies like the intermediate shaft, flywheel magneto, reed valve, exhaust chamber, and electrical unit

Technical Layout and Structure

The PDF documentation provides a comprehensive breakdown of the Yamaha WaveRaider series. It enables mechanics to navigate dedicated chapters covering General Information, Specifications, Periodic Inspection and Adjustment, Fuel System, Power Unit, Jet Pump, Electrical System, Hull and Hood, and Trouble-analysis. Exploded diagrams illustrate exact component placement alongside specific part-identification numbering, while comprehensive wiring diagrams, maintenance interval charts, removal and installation charts, tightening torque charts, and carburetor exploded views support accurate diagnostic routines. Maintenance sections detail lubrication schedules, bolt torque specifications, and system-level troubleshooting for both the engine and drivetrain. This depth of precise factory data directly streamlines bench work and complex teardowns, offering a massive advantage by providing exact multi-stage torque values and component clearances to eliminate guesswork and prevent stripped aluminum threads during reassembly.

Maintenance and Technical Specifications

Engine performance parameters map out a maximum output of 80.9 kW (110 HP) at 6,500 rpm for the RA1100 variant. Cylinder head bolt torque values follow a strict multi-stage sequence. For instance, the engine assembly data lists final-stage specifications of 36 N·m (25 lb-ft) for the RA700 series. The cooling system for the RA1100 requires precise flushing routines to prevent sediment buildup from waterborne contaminants. Additionally, intake screen bolt torque is specified at 11 N·m (8.0 ft-lb) within the jet pump maintenance section, while fuel system carburetor low-speed screw settings are locked in at 1-1/8 ± 1/4 turns out for the RA1100 model. When performing a repair on these specific watercraft, technicians should be aware of a few common pitfalls. For example, turning on the flush water supply before starting the engine will quickly force water back through the muffler directly into the crankcase, causing catastrophic internal damage. Furthermore, failing to completely bleed the oil injection lines after off-season storage frequently results in severe top-end scoring. Always prioritize workplace safety and ensure marine watercraft maintenance is performed by qualified personnel using the accurate factory values found within this complete reference material.
