1994–2002 Honda Magna VF750C/CD models Repair Manual

• Coverage and edition: Covers the 1994-1995 Honda Magna VF750C and VF750CD in 49-state, California, and Canadian configurations. This is a 223-page PDF of the June 1994 base issue with July 1995 revised pages carrying Honda document code MSV 6913 (9504).
• Engine and transmission repair: Details engine removal and installation, camshaft and cylinder-head service, valve and timing work, crankcase separation, piston and connecting-rod service, crankshaft bearing selection, clutch repair, gearshift linkage work, and mainshaft/countershaft disassembly.
• Fuel, lubrication, and cooling systems: Documents CV-carburetor removal, separation, disassembly, combination, synchronization, and pilot-screw adjustment; California-only EVAP and PAIR work; oil-pump overhaul; and thermostat, radiator, and water-pump procedures with cooling-system testing.
• Chassis and brake repair: Covers front and rear wheel service, fork and steering-stem overhaul, shock-absorber and swingarm disassembly, staked drive-chain replacement, front caliper and master-cylinder repair, and rear drum-brake panel service. Hydraulic bleeding is cross-referenced to the Honda Common Service Manual.
• Electrical diagnosis: Provides charging- and ignition-system troubleshooting flowcharts, system-location views, and inspection or replacement procedures for the alternator, regulator/rectifier, ICM, ignition pulse generator, starter motor, starter clutch, lights, meters, and switches.
• Diagrams and factory data: Supplies the full wiring diagram 0030Z-MZ5-6700, Cable & Harness Routing views, Lubrication System Diagram, Cooling System Flow Pattern, and California Vacuum Hose Routing Diagram. Factory reference data covers component-specific torque tables, wear limits, clearances, capacities, bearing selection, and electrical testing.

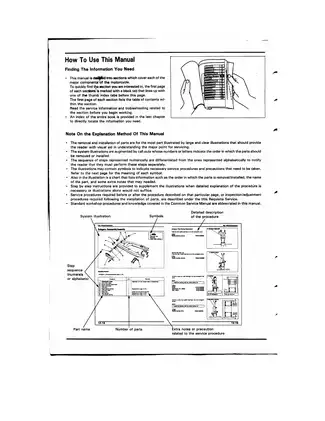

Exact Coverage and Intended Use

The documented powertrain is the 748.1 cc, liquid-cooled, DOHC 90-degree V-4 with CV carburetors, a cable-operated wet clutch, and a five-speed transmission. Honda states that this model-specific manual was written for people who already have basic knowledge of Honda motorcycle maintenance. It is suited to users who understand standard motorcycle service practice and have access to the specified measuring and special tools; general procedures common to other Honda motorcycles are abbreviated and referred to the separate Honda Common Service Manual.

The VF750CD receives its own upper-fairing, windscreen, and headlight-aim coverage. Fuel and emissions information also separates the VP31A 49-state, VP30A California, and VP32D Canadian carburetor configurations. California pages add carburetor-tube routing, EVAP canister service, PAIR control-valve service, and the Vacuum Hose Routing Diagram.

Production Changes and Repair Scope

The revised material flags several production changes instead of treating every motorcycle alike. Oil-system, clutch, and crankshaft pages identify changes after 1994, while the camshaft and mainshaft information distinguishes 1994-1995 parts from later construction and notes exceptions for some early-1996 units. These limited component callouts do not amount to complete 1996-2002 model coverage.

The manual also makes the job boundary clear. The oil pump, carburetors, water pump, camshafts, cylinder heads, clutch, and gearshift linkage can be serviced with the engine in the frame. The same applies to the alternator, ignition pulse generator, starter clutch, and starter motor. Piston, connecting-rod, cylinder, crankshaft, transmission, shift-fork, and shift-drum work requires engine removal and crankcase separation.

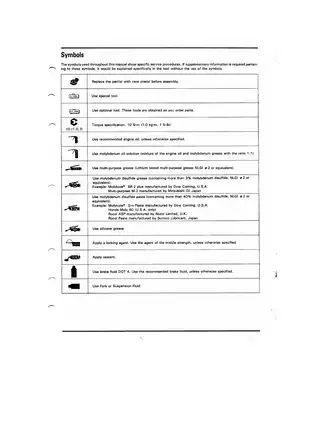

Procedures, Tools, and Assembly Data

The maintenance section shows shim-based valve-clearance inspection, calculation, and adjustment; carburetor synchronization and idle-drop pilot-screw adjustment; staked master-link drive-chain replacement; and post-service checks. Internal-engine repair data covers color-coded crankshaft and connecting-rod bearing selection, Plastigage verification, crankcase sealant areas, and bolt-location diagrams.

Honda identifies the dedicated tooling needed for many jobs. Examples include drive-chain cutter 07HMH-MR10102 / 07HMH-MR1010B, tensioner stopper 07NMG-MY90100, clutch-center holder 07724-0050001, shock-absorber compressor 07959-3290001, rotor puller 07733-0020001, and digital multimeter 07411-0020000, with availability notes where a tool was not sold in the United States.

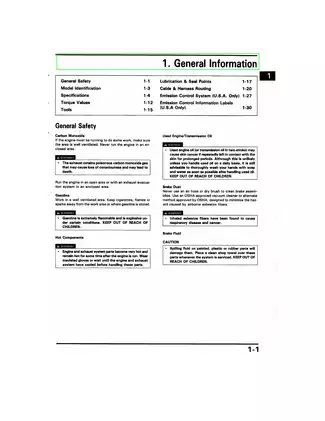

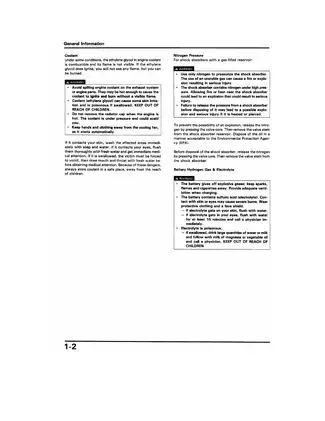

Misplaced crankcase bearing inserts can block oil passages and lead to engine seizure. The CT-bolt section also explains how careless reuse or the wrong replacement bolt can ruin the plastically formed female threads. Engine removal requires the motorcycle to be securely supported, and the fuel, pressurized-coolant, brake, battery, and ignition procedures call for the shop precautions specified in the manual.
