1999 Yamaha WaveRunner XL1200Ltd PWC Service Manual (P/N LIT-18616-01-98 / F0D-28197-Z9-11)

Yamaha's factory service manual for the 1999 WaveRunner XL1200Ltd, first edition March 1999, carries publication identifiers LIT-18616-01-98 / F0D-28197-Z9-11. Coverage includes the 66V three-cylinder, 1,176 cc two-stroke engine with triple MIKUNI BN44 carburetors, variable oil injection, and digital CDI.

Search, bookmarks, and wiring detail: Service text is searchable, but some labels inside illustrations are not. Chapter and section bookmarks are included; “Return” points to a separate index file that is not included. Small wiring and connector labels require enlargement for comfortable reading.

• Power unit repair: Engine removal, cylinder-head and crankcase disassembly, piston and crankshaft inspection, reed-valve service, and coupling alignment.

• Fuel and oil injection: Carburetor and accelerator-pump disassembly, throttle-valve synchronization, diaphragm fuel-pump inspection, oil-pump cable adjustment, and air bleeding.

• Jet pump overhaul: Impeller and drive-shaft removal, bearing and oil-seal replacement, bearing-housing service, and reverse-gate disassembly.

• Electrical diagnosis: Ignition, starting, charging, and indication-system tests, plus starter-motor repair, YPVS servomotor checks, and system-specific wiring diagrams.

• Steering and trim: QSTS grip and steering-master disassembly, remote-control cable replacement, and steering, shift, and trim adjustments.

• Cooling, exhaust, and hull: Water-jacket inspection, exhaust chamber and muffler service, catalyst inspection, and fiberglass hull repair coverage.

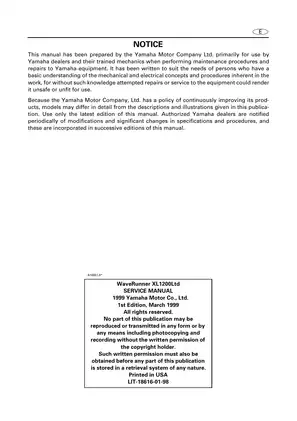

Written primarily for Yamaha dealers and their trained mechanics, this manual assumes a basic understanding of mechanical and electrical service procedures.

Power Unit and Exhaust Repair

Power unit documentation covers inspection limits for cylinder-head warpage, reed-valve bending, piston-to-cylinder clearance, piston rings, and crankshaft deflection. The cylinder-and-piston selection table matches bore identification marks to piston color codes, helping identify the appropriate piston before ordering replacement parts.

Cooling and exhaust coverage extends to the exhaust manifold, catalyst housing, and water lock. Yamaha warns that unsuitable lubricating oil can damage the catalytic converter and other engine components.

Carburetors and Oil Injection

Carburetor repair sections distinguish the accelerator pump on carburetor No. 3 and cover diaphragms, regulator bodies, needle valves, and jets. Trolling-speed adjustment and cable/hose routing views support reassembly of the fuel-delivery and return circuits.

Intake duct and silencer removal charts identify the intake filter. Fuel- and oil-filter inspections and oil-injection check-valve tests are also documented.

Carburetor cleaning cautions explain how steel wire can enlarge jets and affect performance.

Jet Pump, Controls, and Hull

The jet-pump section includes bearing-housing shim selection, oil-seal installation depths, and drive-shaft service. Tool references identify the drive shaft holder YB-06151 / 90890-06519 for impeller work.

Steering and QSTS procedures show cable identification, stopper installation, and nozzle adjustment.

Hull repair covers scratches, cracks, punctures, insert nuts, and graphics. Crack/puncture repairs and an insert-nut procedure refer to the separate Water Vehicle FRP Repair Manual, which is not included.

Electrical Diagnosis and Workshop Data

The Ignition System, Starting System, Charging System, and Indication System wiring diagrams are supplemented by a large-format wiring diagram with connector views. CDI peak-voltage tables distinguish loaded and unloaded cranking from running-speed checks; stator resistance specifications and temperature-sensor tests provide further diagnostic references.

The YPVS servomotor is sealed and must be replaced if faulty. Coverage includes removal, testing, and cable adjustment. Multi-function meter coverage includes removal, display self-checks, warning-indicator tests, and speed-sensor checks.

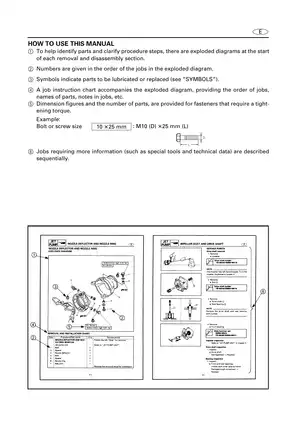

Exploded views and job instruction charts identify fasteners, lubrication points, and replacement items. Workshop references include the maintenance interval chart for items such as spark plugs and fuel filters, a symptom-based trouble-analysis chart, and torque tables for standard fasteners and engine assemblies.

Fuel-system work and CDI tests require the manual's precautions for flammable vapor and electrical shock.

English PDF and Included Pages

One printable English-language PDF contains 244 pages total: 221 numbered chapter pages, 14 chapter contents pages, six introductory/index pages, two covers, and one large-format wiring-diagram page. All are included in the total; no separate supplements are bundled.
