Yamaha YZ250 1992–2006 Service Manual Set (P/N 4EW-28199-80)
7,535 Pages • ZIP Download: 13 Printable PDFs • 247.74 MB
Yamaha Models Covered & Key Technical Specifications
Models: YZ250, YZ250LC, YZ250E
Models & Model Codes:
YZ250(E)/LC — 4EW1 (EUROPE), 4EW2 (USA, CDN, OTHERS), 4EW4 (AUS, NZ)
YZ250(F)/LC — 4JX1 (EUROPE), 4JX2 (USA, CDN, OTHERS), 4JX4 (AUS, NZ)
YZ250(G)/LC — 4MX1 (EUROPE), 4MX2 (USA, CDN, ZA), 4MX4 (AUS, NZ)
YZ250(K)/LC — 5DJ1 (USA, CDN, ZA), 5DJ2 (EUROPE), 5DJ4 (AUS, NZ)
YZ250(L)/LC — 5CU1 (USA, CDN, ZA), 5CU2 (EUROPE), 5CU4 (AUS, NZ)
YZ250(M)/LC — 5HC1 (USA, CDN, ZA), 5HC2 (EUROPE), 5HC4 (AUS, NZ)
YZ250(N)/LC — 5MW1 (USA, CDN, ZA), 5MW2 (EUROPE), 5MW4 (AUS, NZ)
YZ250(P)/LC — 5NX1 (USA, CDN, ZA), 5NX2 (EUROPE), 5NX4 (AUS, NZ)
YZ250(R)/LC — 5UP1 (USA, CDN, ZA), 5UP2 (EUROPE), 5UP4 (AUS, NZ)
YZ250(S)/LC — 5XF1 (USA, CDN, ZA), 5XF2 (EUROPE), 5XF4 (AUS, NZ)
YZ250(T)/T1 — 1P81 (USA, CDN, ZA), 1P82 (EUROPE), 1P84 (AUS, NZ)
YZ250(V) — 1P85 (USA, CDN), 1P86 (EUROPE), 1P88 (AUS, NZ, ZA)
YZ250(W)/W1 — 1P89 (USA, CDN), 1P8A (EUROPE), 1P8C (AUS, NZ, ZA)
Sub-models / Variants: USA, CDN, AUS, NZ, Europe, ZA
Model Years: 1992–2006 (1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006)
Serial Numbers:
YZ250(E)/LC: Starting VINs: JYA4EWW0*PA009101 (USA, CDN), JYA4EWT0*PA021101 (AUS, NZ). Starting frame numbers: 4EW-000101 (EUROPE), 4EW-009101 (OTHERS). Starting engine numbers: 4EW-000101 (EUROPE), 4EW-009101 (USA, CDN, OTHERS), 4EW-021101 (AUS, NZ).
YZ250(F)/LC: Starting VINs: JYA4JXW0*RA009101 (USA, CDN), JYA4JXT0*RA022101 (AUS, NZ). Starting frame numbers: 4JX-000101 (EUROPE), 4JX-009101 (OTHERS). Starting engine numbers: 4JX-000101 (EUROPE), 4JX-009101 (USA, CDN, OTHERS), 4JX-022101 (AUS, NZ).
YZ250(G)/LC: Starting VINs: JYA4MXS0*SA000101 (E), JYA4MXW0*SA006101 (USA, CDN), JYA4MXT0*SA017101 (AUS, NZ). Starting frame numbers: 4MX-000101 (F, D, GB, I), 4MX-006101 (ZA). Starting engine numbers: 4MX-000101 (F, D, GB, I, E), 4MX-006101 (USA, CDN, ZA), 4MX-017101 (AUS, NZ).
-
Engine type: Liquid cooled 2-stroke, single cylinder
-
Displacement: 249 cm3
-
Transmission type: Constant mesh, 5-speed
-
Starting system: Kick starter
-
Carburetor type: MIKUNI TM38SS (YZ250(E)/LC, YZ250(F)/LC); KEIHIN PWK38 (YZ250(G)/LC); KEIHIN PWM38 (YZ250(K)/LC, YZ250(L)/LC); KEIHIN PWK38S (YZ250(M)/LC, YZ250(N)/LC, YZ250(P)/LC, YZ250(R)/LC, YZ250(S)/LC, YZ250(T)/T1, YZ250(V), YZ250(W)/W1)
-
Front suspension: Telescopic fork
-
Rear suspension: Swingarm (Link type monocross suspension)
-
Coolant capacity: 1.14 L (1.00 Imp qt, 1.20 US qt) for YZ250(K)/LC; 1.2 L (1.06 Imp qt, 1.27 US qt) for the other listed variants
-
Tire pressure: 100 kPa (1.0 kg/cm2, 15 psi)
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

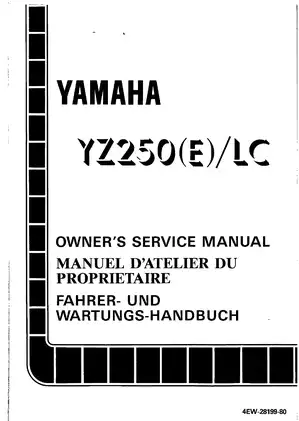

| YZ250(E)/LC Owner’s Service Manual — P/N 4EW-28199-80 | 583 |
| YZ250(F)/LC Owner’s Service Manual — P/N 4JX-28199-80 | 581 |
| YZ250(G)/LC Owner’s Service Manual — P/N 4MX-28199-80 | 578 |
| YZ250(K)/LC Owner’s Service Manual — P/N 5DJ-28199-30 | 536 |
| YZ250(L)/LC Owner’s Service Manual — P/N 5CU-28199-30 | 557 |
| YZ250(M)/LC Owner’s Service Manual — P/N 5HC-28199-30 | 569 |
| YZ250(N)/LC Owner’s Service Manual — P/N 5MW-28199-30 | 579 |

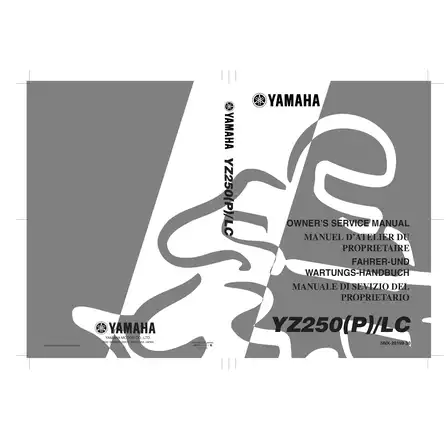

| YZ250(P)/LC Owner’s Service Manual — P/N 5NX-28199-30 | 585 |
| YZ250(R)/LC Owner’s Service Manual — P/N 5UP-28199-30 | 587 |
| YZ250(S)/LC Owner’s Service Manual — P/N 5XF-28199-30 | 589 |
| YZ250(T)/T1 Owner’s Service Manual — P/N 1P8-28199-30 | 597 |
| YZ250(V) Owner’s Service Manual — P/N 1P8-28199-31 | 597 |
| YZ250(W)/W1 Owner’s Service Manual — P/N 1P8-28199-32 | 597 |
Each publication provides service data and repair chapters for its own model designation and regional specification. Matching the edition to the machine matters when selecting carburetor settings, internal-engine inspection limits and electrical tests.
Search and Bookmarks by Edition
Text search, navigation and wiring detail: Searchable manual text is available in the N, P, R, S, T/T1, V and W/W1 files. The E, F, G, K, L and M manuals have no searchable body text. Bookmark navigation varies: some links open contents pages, K has no bookmarks, and some parent entries in V and W/W1 have unusable targets. Small wiring and connector labels require zooming.
The ZIP download contains 13 printable PDFs totaling 7,535 pages, including 13 additional introductory notice pages, one per file. Original covers and memo pages are also included in that total. English, French and German appear throughout; the K, L, M, N, P, R, S, T/T1, V and W/W1 publications also include Italian.
Two-Stroke Engine Repair, Chassis Service and Race Setup
The selected topics below provide a preview of the content. Other covered subjects include break-in procedures and storage.
-
Engine and transmission: Step-by-step engine removal, top-end repair, crankcase separation, crankshaft installation, clutch service, and inspection of the transmission, shift cam and shift forks.
-
Carburetor and reed valve: Carburetor disassembly, jet and needle inspection, float-height checks, reed-valve inspection, and model-specific tuning information.
-
Cooling system: Radiator and water-pump service, radiator-cap pressure checks, cooling-system inspection, and coolant replacement procedures.
-
Hydraulic brakes: Front and rear master-cylinder and caliper service, brake-pad inspection and replacement, and brake-system bleeding.
-

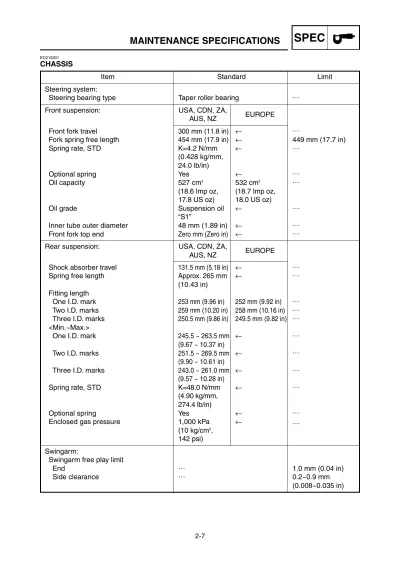

Chassis and suspension: Front-fork disassembly and assembly, wheel and steering-bearing inspection, swingarm-linkage service, and rear-shock spring and mounting-bearing work.
-
Electrical diagnosis: Ignition troubleshooting charts, CDI magneto and coil tests, wiring diagrams, and solenoid-valve and throttle-position-sensor checks on equipped variants.
-
Race setup: Carburetor setting charts, spark-plug evaluation, gearing selection, spring preload, and compression- and rebound-damping adjustments.
These manuals suit mechanically experienced owners and technicians who can use the measuring equipment and special tools required for internal engine and chassis work.
Top-End and Bottom-End Repair
Exploded views of the piston and power-valve assembly and the crankcase and crankshaft accompany component inspection and assembly information. Piston-to-cylinder matching charts, wear limits and component-specific torque data support decisions about which parts can be reused.
The W/W1 top-end procedure warns that omitting the push-rod set pin can damage the power-valve mechanism. Its special-tool list identifies the crankcase separator 90890-01135 and piston-pin puller 90890-01304, allowing the required equipment to be checked before teardown.
Carburetor Setup and Electrical Fault Finding
Carburetor setting charts relate jet and needle selection to throttle opening, atmospheric conditions and riding symptoms. The individual editions distinguish the carburetor configurations and regional settings used on their covered machines.
On equipped variants, separate troubleshooting charts address ignition failure, the power-jet solenoid and the TPS (throttle position sensor). The Electrical Components and Wiring Diagram, connector illustrations and Cable Routing Diagram support circuit tracing alongside the specified resistance and voltage checks.
Brake and Suspension Service
Brake chapters distinguish master-cylinder piston and cup inspection from caliper piston and seal work, with related assembly specifications and hose-routing illustrations. Suspension tuning sections connect spring and damping changes with handling symptoms.
Rear-shock procedures cover the spring, mounting bearings and adjustment. The handling notes prohibit disassembly of the pressurized shock cylinder or reservoir. Always verify that the motorcycle is securely supported on a suitable stand before chassis work.
Examples of Top-End Clearances and Oil-Change Data
For YZ250(E)/LC, the maintenance table lists a cylinder-head warpage limit of 0.03 mm and a standard installed top-ring side clearance of 0.045–0.080 mm.
The same edition specifies 0.75 L of transmission oil for a periodic oil change. These examples belong to the E/LC publication; use the inspection and service data in the matching edition.
