Pontiac Fiero 1984–1988 Repair Manual Set (P/N S-8610P)

The factory books provide model-year service procedures, while the owner and DIY publications cover controls, starting, routine care, and operating limitations. The illustrated catalogs support component identification; the Haynes and Chilton books provide separate repair references across the listed model range.

Application limits: The Muncie training booklet calls for the applicable division service publications when performing repairs. The Chevrolet V6 chapter concerns off-highway engine preparation, and several articles in the 1987 folder cover multiple GM applications; their additional engines and power-steering systems should not be treated as Fiero equipment.

PDF Search, Bookmarks and Drawing Detail

Search and viewing: The Chilton book and service articles contain searchable text, although some diagram labels remain embedded in images. The 1986 factory book and owner publications lack text search; the 1988 factory, Haynes, and 6E3 files are partly searchable. Bookmark quality varies from named sections to image filenames. Small wiring labels require zooming. Some 1988 factory and Haynes pages render incompletely, and colored marks cross portions of the 6E3 diagrams.

The ZIP contains 61 printable PDFs totaling 6,091 pages, including covers, blank pages, order forms, and added introductory material. Both versions of the parts catalog are included in that total; the 356-page version includes an additional cover.

Engine Repair, Transaxles and Electrical Diagnosis

These selected coverage highlights summarize the repair material rather than reproduce the contents lists. Other topics include appearance care and operating instructions for the ETR music systems.

• Engine repair: Separate four-cylinder and V6 procedures cover cylinder-head work, timing components, piston and connecting-rod assemblies, and internal inspection.

• Transaxles and clutch: Manual-transaxle service and overhaul, clutch hydraulics, shift controls, and THM 125C automatic diagnosis, disassembly, and reassembly.

• Fuel and engine controls: TBI and port-injection diagnosis, trouble-code charts, fuel-pump tests, ignition checks, and emissions-system troubleshooting.

• Chassis and brakes: Suspension and steering service, wheel alignment, brake bleeding, caliper work, and parking-brake adjustment, with separate 1988 brake material.

• Electrical systems: Power and ground distribution, lighting, gauges, starting and charging circuits, connector views, and component-location references.

• Cooling, HVAC and accessories: Cooling-system service, heater and A/C diagnosis, headlight-door testing, Electronic Tri-Mode Cruise Control, and Delco sound-system information.

Suited to experienced DIY owners and technicians who can follow wiring diagrams and use the measuring equipment and special tools specified in the repair sections.

Mechanical Repair and Component Identification

The engine material extends beyond maintenance schedules to removal, inspection, and assembly procedures. The factory books also cover the frame cradle, mounts, exterior panels, and body service, while the parts illustrations identify assemblies and their associated hardware.

The transaxle references distinguish internal overhaul from on-car service. The Muncie training material adds synchronizer operation, power-flow explanations, and clutch diagnosis; the automatic-transaxle documents include hydraulic diagnosis and component inspection.

Electrical Fault Tracing and Accessory Systems

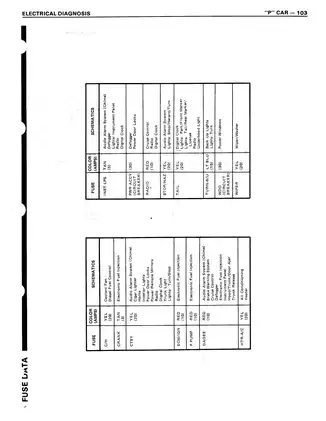

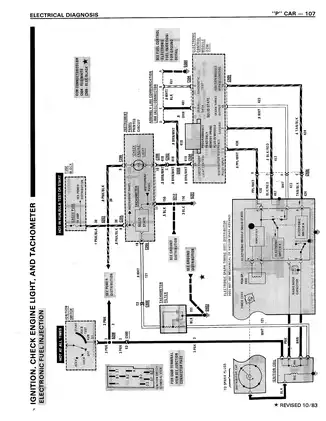

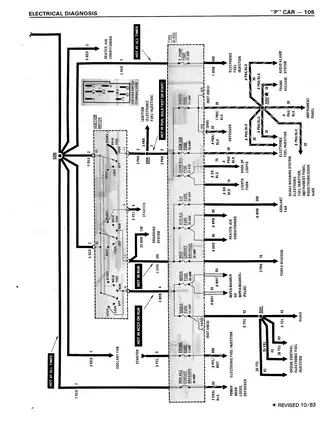

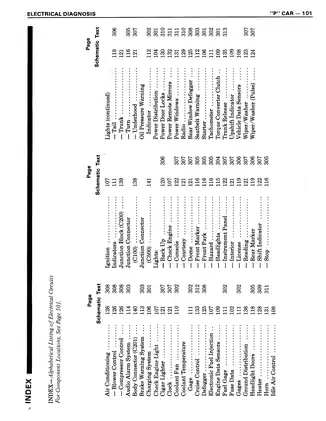

Schematics, component locations, and diagnostic charts connect symptoms with circuit checks. Examples include Fuse Block & Underdash, Indicators and Gages, Power Window Circuit, Radio, and Chart A-3A: Engine Cranks but Will Not Run.

The 1987 headlight-door article explains how binding linkage can create the current increase that the Headlight Door Module interprets as an end-of-travel condition. That distinction supports diagnosis of mechanical loading as well as motor and module faults.

The 6E3 diagnostic material warns that shorting injector-harness connectors during cranking can damage the ECM. The factory radio section also identifies pinched speaker wiring as a cause of damage to the radio’s output circuit.

Electrical testing and fuel-system service involve live circuits and pressurized fuel. Follow the precautions for the specific procedure and equipment described in the relevant publication.

Owner Guidance and Model-Year Differences

The owner publications cover starting with manual or automatic transaxles, instrument-panel behavior, emergency equipment, and routine fluid checks. The DIY booklets add owner-service procedures, while the maintenance schedules distinguish the required inspections and service conditions.

Operating guidance changes between editions. The 1988 owner’s manual expressly prohibits trailer towing, so the earlier manuals’ towing allowances should not be applied across the entire collection.

Fuel-Pressure and Warning-Switch Examples

For the 1985 port-injected V6, Chart A-3A specifies 234–310 kPa (34–45 psi) fuel pressure with the engine stopped, ignition on, and the fuel pump stopped after its initial run. The chart identifies fuel-pressure gauge J34730-1.

The 1984 electrical revision describes the oil-pressure warning switch closing below 27 kPa (4 psi) while the engine is running. This is a warning-circuit reference, alongside the publication’s gauge and sender diagnosis.
