Yamaha XT225E/EC 1993–2000 Service & Parts Manual Set (P/N LIT-11616-XT-25)

Use the base procedures with the applicable supplement. The N/NC foreword specifically requires both the D/DC manual and H/HC supplement, which are combined in the main service PDF.

Parts coverage: The illustrated catalog applies specifically to the 1993 E/EC builds. The H/HC and N/NC publications provide service updates rather than later-model parts catalogs.

PDF Search, Navigation, and Page Condition

Search and page access: All three PDFs have embedded bookmarks. The service file and N/NC supplement lack text search; the parts tables are searchable, but the catalog’s four-page cover and foreword are not. Small electrical-diagram labels require zooming. The service file has a damaged image on PDF p. 349, making its starter-motor removal and initial disassembly text unreadable.

The ZIP download contains 3 printable PDFs totaling 479 pages. The 389-page service file combines the base manual, H/HC supplement, and two outer-cover pages; those covers and all publication front matter are already included in the total.

Engine Overhaul and E/EC Parts Reference

The following is a selected content overview, rather than a complete table of contents. Further topics include California emission-hose routing and suspension-setting combinations for different loads.

• Engine overhaul: Step-by-step procedures for engine removal, cylinder-head and valve work, camshaft and timing-chain service, piston inspection, crankshaft work, reassembly, and remounting.

• Clutch and transmission: Clutch inspection and assembly, oil-pump repair, balancer service, transmission and shifter inspection, and crankcase assembly.

• Carburetor service: Removal, disassembly, diaphragm and jet inspection, reassembly, installation, float-height checks, and fuel-level adjustment.

• Brakes and chassis: Wheel and bearing service, front-caliper and master-cylinder repair, brake bleeding, rear drum-brake work, fork overhaul, steering-head service, and swingarm inspection.

• Electrical diagnosis: D/DC circuit diagrams, ignition and starting-interlock fault tracing, charging-system tests, switch and bulb checks, and the N/NC wiring diagram.

• Parts identification: Illustrated E/EC plates with reference numbers, Yamaha part numbers, descriptions, quantities, and remarks for engine, chassis, body, controls, and electrical assemblies.

Yamaha wrote the service publications primarily for dealers and qualified mechanics, assuming an understanding of motorcycle repair concepts and procedures.

Engine Repair and Assembly Details

The overhaul chapter covers valve-seat refacing, valve-guide replacement, rocker-arm and shaft inspection, timing-chain guides and tensioner checks, cylinder and piston measurements, and piston-ring and pin inspection.

Lower-engine coverage extends to the balancer gears, clutch housing and release components, transmission shafts and gear dogs, shift forks and cam, oil pump and strainer, electric starter drive, bearings, seals, and crankcases. In-frame service notes identify assemblies that can be serviced without removing the engine, helping match the planned repair to the required teardown.

The H/HC supplement updates clutch and oil-pump assembly documentation. The N/NC supplement adds its own clutch and oil-pump, cylinder-head, and camshaft/timing-chain assembly views.

Assembly cautions: The manual warns that turning the crankshaft during camshaft installation can cause damage or incorrect valve timing. Its lubrication instructions also address oil-filter orientation and warn that inadequately lubricated oil-pump passages can damage the engine.

Carburetor and Periodic Service

The carburetor sectional view explains the vacuum-operated piston valve and coasting enricher. Inspection procedures distinguish damaged diaphragms, worn jets, sticking piston valves, and needle-valve or valve-seat faults; regional setting tables separate U.S., California, and Canadian configurations.

Periodic service covers valve clearance, idle and throttle-cable setup, ignition-timing checks, compression testing, oil-pressure inspection, clutch adjustment, air-filter cleaning, brake adjustment, chain maintenance, battery and fuse checks, and headlight adjustment. The timing chain uses automatic tensioning rather than a manual adjustment procedure.

Suspension, Steering, and Brake Work

Fork coverage includes teardown, tube and spring inspection, bushing and seal installation, and reassembly. Steering-head work covers bearing and race replacement; swingarm and linkage sections include collar, shim, bushing, and side-clearance checks. Drive-chain and sprocket replacement procedures are also included.

Rear-shock coverage addresses adjustment, handling, removal, inspection, replacement, and disposal. It does not provide an internal shock rebuild procedure.

The N/NC supplement supplies an updated front-brake assembly view. Secure the motorcycle before engine, wheel, fork, steering, or swingarm work, and follow the manual’s warnings for the hydraulic brake system and gas-charged rear shock.

Circuit Testing and Fault Isolation

Ignition-control and starting-circuit operation diagrams explain the neutral, clutch, and sidestand interlocks. Charging-system schematics and electrical test charts support checks of the stator, regulator, wiring, and related components. Starter-motor inspection and reassembly are covered, although the damaged page limits the removal and initial disassembly instructions.

Troubleshooting charts address hard starting, poor running, shifting faults, clutch slipping or dragging, overheating, brake faults, fork leakage, unstable handling, and signal or lighting failures.

E/EC Parts Selection and Workshop References

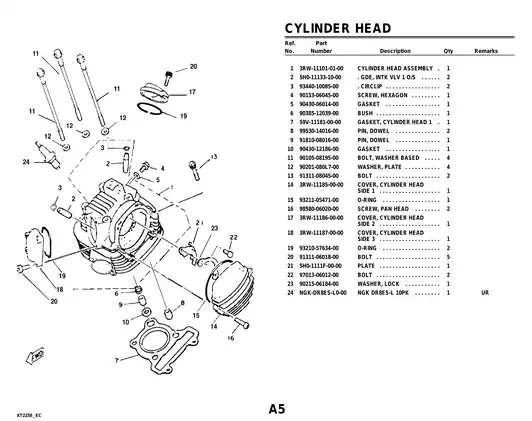

The catalog contains 51 illustrated parts plates with accompanying reference tables. Coverage includes the engine and transmission, frame, suspension, steering, tank, wheels, brakes, cables, bodywork, meter, lighting, C.D.I. unit, wire harness, and handle switches.

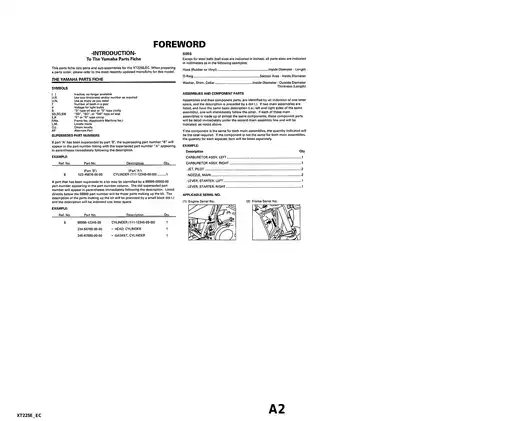

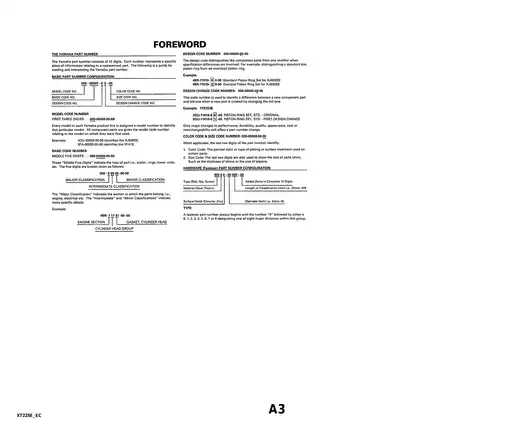

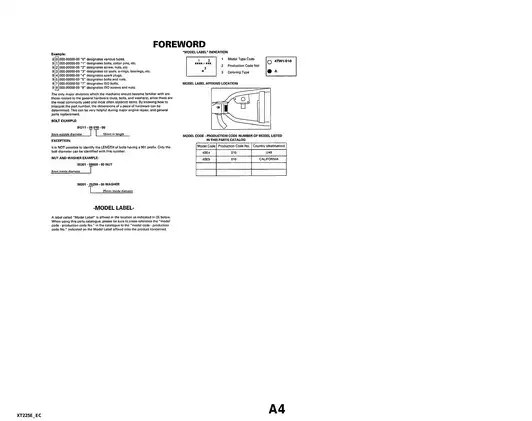

California-only and non-California remarks help distinguish applicable components before ordering. The foreword explains superseded numbers and kits, hardware and color codes, Yamaha’s 12-digit part-number format, model-label matching, and serial applicability.

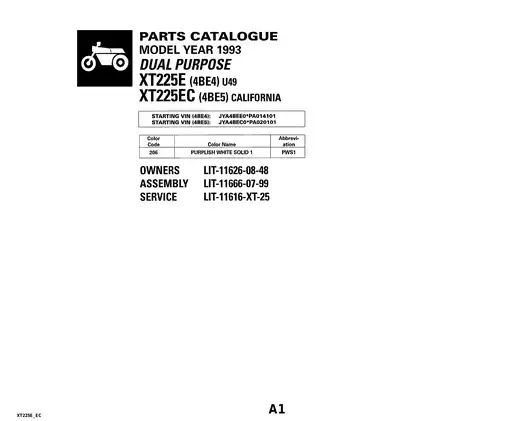

Its cover references owner’s literature LIT-11626-08-48 and assembly literature LIT-11666-07-99; these are related publications, not additional PDFs in this download.

Service references include component-specific torque tables, fluid capacities, clearances, wear and runout limits, electrical test values, lubrication diagrams, cable-routing sheets, and exploded assemblies. Special-tool listings identify the valve-adjusting tool YM-08035 / 90890-01311, rotor puller YM-01080-A / 90890-01080, crankcase separating tool YU-01135-A / 90890-01135, fork-seal drive weight YM-33963 / 90890-01367, and spark tester or ignition checker YM-34487 / 90890-06754.

A Preview of N/NC Cable and Clutch Specifications

The N/NC supplement specifies throttle-cable free play of 3–5 mm, measured at the flange of the throttle grip, alongside its push/pull-cable adjustment procedure.

For clutch inspection, friction-plate thickness is 2.90–3.10 mm with a 2.8 mm wear limit. The clutch-plate warpage limit is 0.2 mm.
