1984–1986 Honda ATC200S ATV Service Manual (P/N 61VM402)

This Honda ATC200S Shop Manual (P/N 61VM402) covers the 1984–1986 three-wheeler, with engine, chassis, and electrical service data for maintenance, troubleshooting, and internal repair.

• Engine repair: Engine removal and installation, cylinder-head teardown, valve-seat refacing, cylinder and piston inspection, and camshaft timing.

• Clutch and transmission: Centrifugal and manual clutch service, gearshift-linkage repair, crankcase separation, and transmission shaft and gear inspection.

• Fuel and lubrication: Piston-valve carburetor overhaul, float-level inspection, high-altitude jetting, oil-filter cleaning, and oil-pump disassembly.

• Chassis and brakes: Front-fork seal replacement, steering-head bearing service, drum-brake inspection, rear-axle removal, and wheel-bearing replacement.

• Starting and ignition: Recoil-starter rebuilding, alternator removal and installation, ignition-coil testing, CDI checks, and pulse-generator diagnosis.

• Diagrams and fault tracing: Model-year wiring diagrams, cable routing drawings, switch-continuity tables, and symptom-based troubleshooting flowcharts.

This manual suits mechanically qualified owners and technicians who already understand standard workshop procedures and have the specified measuring equipment and special tools.

Engine, Clutch, and Transmission Repair

Top-end coverage includes camshaft and rocker-arm inspection, valve-guide replacement, valve-seat refacing, and cylinder and piston wear checks. The manual distinguishes work requiring engine removal from cylinder-head-cover and rocker-arm service that can be performed in the frame.

Crankcase separation procedures lead into crankshaft and connecting-rod inspection, shift-fork checks, and transmission reassembly. Shaft-and-gear assembly views show thrust-washer and snap-ring locations. Related tables provide wear limits, clearances, gear ratios, and fastener data, including cylinder-head-cover cap nuts.

Clutch service covers the lifter mechanism, friction discs, plates, centrifugal weights, and in-frame access to the oil pump. The tool references identify clutch center holder 07923-9580000. The centrifugal-clutch locknut has left-hand threads; forcing it in the wrong direction can damage the threads.

Carburetor Service and Lubrication

Fuel-system procedures cover the throttle valve, jet needle, float valve, jets, pilot screw, and high-altitude carburetor settings. For 1986 models, the throttle-cable instructions distinguish integral carburetor-top assemblies from clip-on cables that can be replaced separately.

Oil viscosity charts, oil-filter screen and rotor cleaning instructions, and lubrication-point drawings support scheduled maintenance. Oil-pump inspection includes rotor tip, body, and cover clearances.

Work in a well-ventilated area with appropriate safety gear, especially during fuel-system service or engine-running checks.

Forks, Steering, Brakes, and Final Drive

Front-fork procedures cover spring inspection, oil-seal replacement, and reassembly. Steering-head service includes bearing-ball and race replacement, adjustment, and checks for free movement without axial play.

Rear-axle and bearing-holder procedures cover the driven sprocket, flange, and chain case. Drive-chain maintenance includes slack and wear inspection, with cautions explaining how unsuitable solvents and high-pressure washing can damage the grease-retaining O-rings.

Brake sections cover shoe wear, drum measurements, brake-cam assembly, and cable adjustment. Rear-fender and exhaust-system removal, muffler sealing, and spark-arrester cleaning are also included.

Recoil Starter, Ignition, and Electrical Fault Tracing

Recoil-starter coverage details the rope, ratchets, spring, and decompression linkage. Alternator service includes rotor removal and stator-coil installation.

Separate early and later ignition-coil specifications and CDI connector views help you select the correct electrical test data before replacing components. CDI testing specifies Sanwa or Kowa meters because other testers may produce false readings.

The wiring section contains separate diagrams for each covered model year. Supporting illustrations include cable and harness routing drawings, valve-seat cutting diagrams, and float-level measurement views. Troubleshooting flowcharts address hard starting, power loss, low-speed running, high-speed performance, and poor handling.

A Preview of Valve-Clearance and Float-Level Specifications

Intake and exhaust valve clearance is 0.05 mm (0.002 in), checked with the engine cold below 35°C (95°F). The maintenance section illustrates the timing marks and valve-adjuster locations used for this inspection.

The carburetor section specifies a 14.0 mm (0.55 in) float level, measured with the float tang resting against the float valve. It identifies the float as nonadjustable and illustrates float level gauge 07401-0010000.

PDF Search, Bookmarks, and Diagram Detail

Search and diagram access: OCR text search and embedded chapter bookmarks are available, including separate links to the model-year wiring diagrams. Recognition is uneven, particularly in wiring labels. Small wire-color codes require zooming for clear reading.

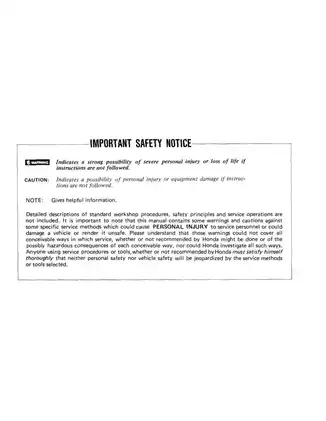

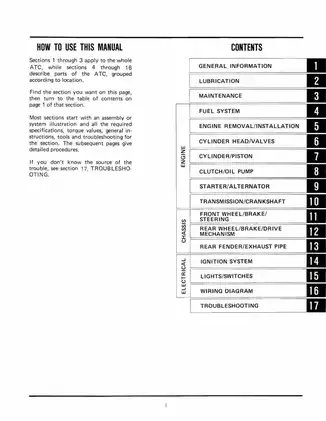

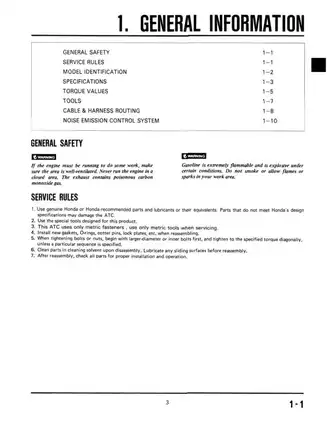

The download contains one printable, English-language PDF with 210 pages total, including the cover, safety notice, contents page, and 11 otherwise blank numbered pages.
