TGB Blade 525/500 ATV Service Manual

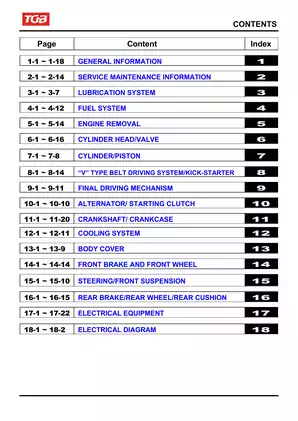

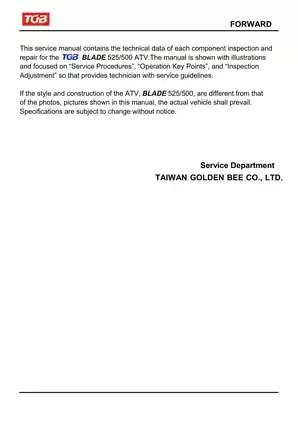

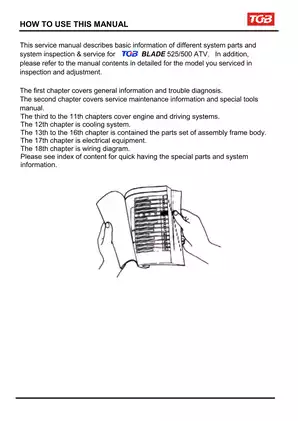

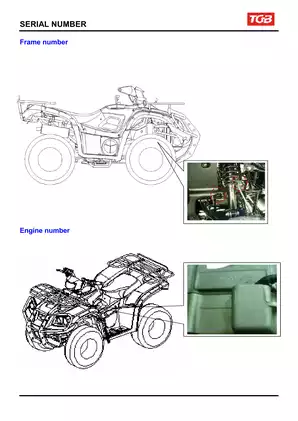

This TGB factory service manual covers the carbureted Blade 525/500 ATV platform identified as FBG. Issued by the Taiwan Golden Bee Service Department, it organizes inspection, adjustment, troubleshooting, and repair procedures into 18 chapters.

PDF Search, Bookmarks, and Diagram Detail

Text access and wiring detail: Body text is searchable, with 13 embedded bookmarks opening individual chapters or chapter groups. Labels in the complete vehicle wiring diagram are not text-searchable; its small component labels, connector numbers, and wire codes require zooming and page rotation.

The ZIP contains one printable, English-language PDF with 231 pages, including five opening pages and 14 blank, notes, or chapter-placeholder pages.

Engine, CVT, and ATV System Service

The following selected coverage highlights summarize the repair content rather than reproduce the full contents list. Other topics include instrument removal and lighting service.

• Engine repair: Engine removal and installation, cylinder-head and camshaft work, valve service, cylinder and piston inspection, and crankshaft/crankcase reassembly.

• Lubrication and maintenance: Oil-pump inspection and service, oil-strainer cleaning, periodic-maintenance schedules, compression checks, and component-specific inspection data.

• Carburetor service: BSR33 removal and installation, air cut-off valve inspection, throttle-valve disassembly, float-chamber service, fuel-level checks, and idle adjustment.

• CVT and driveline: Drive-belt, drive-face, roller, wet centrifugal clutch, and driven-pulley service, plus output shafts, universal joints, and bevel-gear checks.

• Cooling system: Overheating diagnosis, radiator-cap pressure testing, radiator and fan removal, thermostat testing, water-pump inspection, coolant refilling, and air bleeding.

• Brakes and chassis: Hydraulic disc-brake repair, wheel and axle work, steering inspection, suspension service, toe-in adjustment, and body-cover removal sequences.

• Electrical diagnosis: Charging, ignition, and starting circuit diagrams, battery and leakage tests, component checks, switch-continuity tables, and the complete vehicle wiring diagram.

Written to provide technicians with service guidance, this manual assumes familiarity with workshop measurement, electrical testing, and the special tools specified for individual repairs.

Fuel System and Routine Maintenance

The documented configuration uses a water-cooled, single-cylinder four-stroke engine with CDI ignition, automatic CVT, and shaft final drive. Front double-arm suspension and a rear unit-swing layout distinguish the chassis shown in the specifications.

The fuel chapter centers on the BSR33 carburetor rather than fuel-injection mapping. It includes jet and needle inspection, pilot-screw data, fuel-tank and air-cleaner removal, and idle-emissions adjustment using a tachometer and exhaust analyzer.

Routine-service instructions address fuel lines, throttle operation, air-cleaner and spark-plug service, valve clearance, ignition checks, brake and starting-inhibitor switches, headlight aim, clutch-shoe wear, shocks, steering, tires, and fasteners. The maintenance schedule separates inspection, cleaning, replacement, lubrication, and tightening tasks.

Some service figures differ between chapters, including engine-oil quantities and drive-belt wear limits. Those figures need confirmation for the ATV being serviced.

Internal Engine and Driveline Repair

Step-by-step procedures extend to valve-stem-seal and valve-guide replacement, multi-angle valve-seat cutting and lapping, cam-chain timing, and piston-ring installation. Crankcase work covers crankshaft and balancer setup, bearings and oil seals, recoil-starter service, oil-pump drive assembly, gearshift indexing, and final assembly.

Engine notes identify directional bearings and oil seals, valve-spring orientation, and timing or index marks whose incorrect installation can cause leakage or internal damage.

The CVT chapter distinguishes the clutch outer, driven-pulley spring, guide pins, O-rings, and seals. Its cautions address grease contamination of belt-contact surfaces and reduction-gear damage from using the rear wheel or brake to hold the pulleys.

Final-drive instructions cover front and rear output shafts, universal joints, transfer gearing, and reverse-idle gear installation. Bevel-gear contact views accompany tooth-contact and backlash checks, bearing locating-pin placement, and retaining-nut staking.

These sections provide the repair depth needed for belt slip, poor acceleration, driveline noise, vibration, or excessive play. Hard-start and performance flowcharts help connect those symptoms with the relevant inspections.

Cooling, Brakes, and Chassis Detail

The cooling-system fault chart distinguishes coolant-circulation problems from fan, thermostat, sensor, and instrument faults. Water-pump diagnosis addresses seal leakage and signs of oil/coolant contamination.

Brake coverage includes fluid replacement and bleeding, caliper and master-cylinder disassembly, and disc and lining inspection. Rear-brake information distinguishes the hand-operated and foot-operated master cylinders.

Wheel-hub and rear-axle-housing procedures accompany steering-shaft, tie-rod, knuckle, suspension-arm, ball-joint, and shock service. Mechanism drawings and exploded views identify the assemblies, including the cylinder head and V-belt drive.

Electrical Tests and Special Tools

Electrical checks reach the regulator/rectifier connectors, CDI unit, pulse generator, ignition coil, starter relay and motor, fuel sender, cooling-fan thermo-switch, and water-temperature indicator. Circuit drawings and continuity tables support fault tracing at the relevant components.

The illustrated tool list identifies crankshaft holder 440657, flywheel puller 440664, cylinder-head valve and spring installer/remover 440667, universal-joint installer 440668, and wet-clutch nut fixer 440671. Water-pump tools include drivers TGB-440640 through TGB-440642.

Fuel, pressurized coolant, spring-loaded clutch parts, rotating components, and hydraulic brakes all require normal shop controls. Support the ATV securely, isolate electrical power where specified, follow the manual’s warnings, and complete the stated operational checks after repair.

Examples of Valve-Clearance and Fuel-Sender Data

Valve adjustment: The maintenance chapter specifies intake clearance of 0.10 ± 0.02 mm and exhaust clearance of 0.15 ± 0.02 mm, checked with engine temperature below 35°C.

Fuel-gauge testing: The sender test gives 97.5–107.5 Ω at Empty and 4–10 Ω at Full, alongside float-arm and instrument-response checks.
