Yamaha AG200F 1997 Service Manual (P/N 3GX-AE1)
230 Pages • ZIP Download: 1 Printable PDF (English)
Yamaha Models Covered & Key Technical Specifications
Model & Model Code: AG200F (3GXA)
Model Year: 1997
-
Engine type: Air-cooled 4-stroke, SOHC, forward-inclined single cylinder
-
Engine displacement: 196 cc
-
Transmission: Constant mesh 5-speed
-
Clutch type: Wet, multiple-disc
-
Final drive: Chain
-
Front suspension: Telescopic fork
-
Rear suspension: Swingarm (monocross)
-
Brakes: Drum front and rear
-
Ignition system: CDI
-
Battery capacity: 12V 6AH
Yamaha Manual Features & Selected Content Preview
Yamaha’s factory service manual for the 1997 AG200F, model code 3GXA, is the First Edition, January 1997, identified on the original cover as P/N 3GX-AE1.
PDF Bookmarks and Wiring Detail
Search, navigation, and legibility: PDF text search is unavailable. Detailed bookmarks cover the chapters and sections, although the introductory “GENERAL INFORMATION” bookmark opens a blank page. Some small labels in dark, grainy areas of the system circuit diagrams remain difficult to read when enlarged. The full wiring diagram at the end is clearer, with small wire-color codes best viewed at higher zoom.
The ZIP download contains one printable English PDF with 230 pages, including the original cover, nine introductory/index pages, and three blank pages.
Engine Overhaul, Chassis Service, and Electrical Diagnosis
The following selected coverage highlights outline the main workshop areas. Other topics include exhaust-system inspection and handlebar removal and installation.
-
Engine overhaul: Step-by-step removal, disassembly, inspection, and reassembly procedures for the cylinder head, camshaft, rocker arms, valves, cylinder, piston, crankshaft, and crankcase.
-
Clutch and transmission: Clutch and kick-starter service, balancer gears, shift shaft and segment, transmission gears, shift cam and forks, CDI magneto, and starter clutch.
-
Fuel and periodic service: Carburetor teardown and assembly, fuel-level adjustment, valve-clearance adjustment, ignition-timing checks, compression testing, and engine-oil and filter service.
-
Chassis repair: Wheel and drum-brake service, static wheel balancing, drive-chain and sprocket work, front-fork repair, steering service, and swingarm side-clearance adjustment.
-
Electrical diagnosis: Switch-continuity checks, starter-motor repair, and fault tracing for ignition, electric starting, charging, lighting, signals, and auxiliary DC output.
-

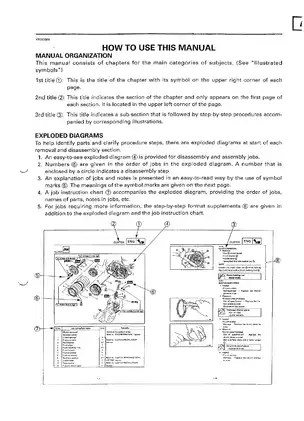

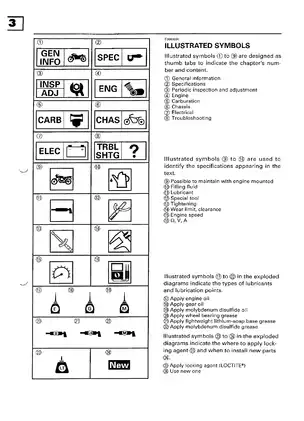

Workshop reference: Exploded assembly drawings with job-order charts, special-tool numbers, torque specifications, lubrication data, wear limits, clearances, electrical test values, and cable-routing layouts.
It is suited to service technicians and experienced motorcycle mechanics who can work from exploded views, measurement tables, and special-tool callouts; Yamaha marks selected maintenance items as dealer-service work.
Engine, Clutch, and Transmission Repair
Engine removal charts identify the exhaust, starter motor, wiring, carburetor, clutch cable, and drive-chain connections involved in removing the assembly. The illustrated job charts help identify parts and organize disassembly work alongside the detailed procedures.
Cylinder head and valve train: Coverage includes timing-chain tensioner inspection, cylinder-head installation, valve-timing checks, camshaft and rocker-arm inspection, valve-guide replacement, valve-seat inspection and lapping, and valve-spring installation. The camshaft installation warning explains how crankshaft rotation at the wrong stage can cause damage or incorrect valve timing.
Internal engine work: Piston and ring inspections include clearance and end-gap measurements. Oil-pump inspection and oil-delivery passage checks accompany balancer alignment, crankcase separation, crankshaft inspection, and transmission/shift-fork reassembly.
Clutch procedures cover friction plates, steel plates, springs, push rods, and release-lever alignment. Tool callouts include clutch holding tool 90890-04086 and rotor puller 90890-01080 with attachment 90890-04052, allowing the required equipment to be identified before teardown.
Mikuni Carburetor and Routine Maintenance
The Mikuni BS26 section goes beyond idle adjustment with internal assembly illustrations, needle-valve and valve-seat checks, and float-chamber fuel-level setting using fuel-level gauge 90890-01312. These configuration details also help check whether the publication matches a machine carrying a different model label.
Periodic service adds air-filter cleaning, clutch and brake adjustment, drive-chain setup, steering-head inspection, battery charging guidance, and headlight aiming. The oil-change section includes an oil-flow check, while the compression-testing material relates test results to possible piston, ring, valve, or gasket faults.
Wheels, Brakes, Suspension, and Steering
Wheel procedures detail bearing and seal replacement, brake shoe-plate assembly, speedometer-gear inspection, and static balancing. Rear-wheel coverage adds clutch-hub and damper inspection, sprocket installation, chain inspection, and chain-joint orientation.
Front-fork work extends to seals, damper rods, spring inspection, oil filling, and oil-level measurement. Steering-bearing and race service is covered separately, while swingarm inspection includes side-clearance measurement and shim correction.
Rear-shock coverage includes removal, spring-preload adjustment, and handling/disposal guidance for the nitrogen-charged unit. Yamaha warns that opening, heating, or deforming the cylinder can impair damping or cause rupture; this section does not provide an internal shock rebuild procedure.
Circuit Tests, Diagrams, and Troubleshooting
Electrical procedures pair circuit diagrams with switch, coupler, relay, coil, and wiring checks. Starting-circuit operation explains the neutral-relay and clutch-switch interlocks, helping distinguish a starter-control fault from a starter-motor problem. Starter inspection covers the commutator, armature, brushes, and reassembly; ignition testing specifies checker 90890-06754.
Visual references include the engine lubrication diagram, wire-harness and control-cable routing layouts, cylinder-head timing views, rear-shock and swingarm exploded assembly, ignition circuit diagram, and electric-starting circuit diagram. Charging, lighting, and signal systems have separate circuit drawings and diagnostic paths.
The final troubleshooting chapter groups likely causes of hard starting, poor idle and higher-speed performance, overheating, clutch slip or drag, shifting faults, poor braking, fork problems, unstable handling, starter failure, and lighting or signal faults.
Valve-Clearance and Fuel-Level Specification Preview
For the AG200F, the valve-adjustment section specifies intake clearance of 0.10–0.14 mm and exhaust clearance of 0.16–0.20 mm with the engine cold at room temperature and the piston at compression-stroke top dead center.
The carburetor section gives a fuel level of 2.5–3.5 mm below the float-chamber line, measured with the carburetor positioned vertically. This is a fuel-level measurement using the specified gauge, not a float-height dimension.
