2006-2008 Toyota Yaris Service Manual

Diagnostic procedures and component service for the Yaris Hatchback and Sedan models, including detailed troubleshooting and repair steps.

4.3starstarstarstarstar_border(3)
Toyota Car manual preview - 2006-2008 Toyota Yaris Service Manual
$14.50 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
3 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Toyota Models Covered & Key Technical Specifications

Models: Toyota Yaris
Sub-models / Variants: Hatchback, Sedan
Build Years: 2006–2008
Technical Data:

  • Refrigerant charge capacity: 330–390 g (11.64–13.76 oz)
  • Compressor oil capacity (new evaporator): 40 cc (1.35 fl oz)
  • Idle speed (Switch A/C OFF - Manual Transaxle): 550–650 rpm
  • Idle speed (Switch A/C ON - Manual Transaxle): 700–850 rpm
  • Idle speed (Switch A/C OFF - Automatic Transaxle): 650–750 rpm
  • Idle speed (Switch A/C ON - Automatic Transaxle): 700–850 rpm
  • High pressure gauge reading (correct volume): 1.37–1.57 MPa (14–16 kgf/cm2)
  • Low pressure gauge reading (correct volume): 0.15–0.25 MPa (1.5–2.5 kgf/cm2)
  • Battery voltage for operation: 11–14 V
  • Max engine speed (A/C engagement): 2000 RPM
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27226 / Patricia King
File Size:
226.90 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Car
Last updated / verified
Apr 14, 2025

Toyota Manual Features & Content Preview

Air Conditioning System Documentation for 2006–2008 Toyota Yaris

  • Covers 2006–2008 Toyota Yaris Hatchback and Sedan variants, including specific service protocols for manual and automatic transmission configurations
  • Original OEM publication content derived from the Air Conditioning System (AC) section, ensuring technical accuracy for the 1NZ-FE engine and related cabin systems
  • Features 38 diagnostic charts, 5 wiring schematics, 15 component torque-specification diagrams, and troubleshooting logic for DTCs B1412 through B1499
  • Delivered as a direct download the moment payment clears
  • Indexed PDF search covers every chapter and appendix
  • This 2006–2008 Toyota Yaris document is the official factory reference for climate control diagnostics, including essential charge-pressure values and system-specific safety requirements.

Diagnostic and Service Coverage

The 2006–2008 Toyota Yaris manual documents the entire air conditioning infrastructure, detailing the interaction between the air conditioning amplifier, ECM, and heater control assemblies. This publication outlines the communication table parameters, including CAN bus signal identification for compressor control, idle-up requests, and PTC heater relay activation. Precise disassembly sequences for the sedan instrument panel, heater radiator units, and evaporator assembly are provided with annotated component diagrams. The content includes a dedicated section for Cold Area Specification vehicles, detailing duct routing and auxiliary heater component integration.

Technical Specifications and System Reference

Technical data is provided for critical system diagnostics, including standard resistance values for thermistors, pressure sensors, and blower motor circuits. The manual lists system-critical torque settings, such as 3.5 Nm for expansion valve bolts and 9.8 Nm for refrigerant line connections. Evaporator temperature sensor resistance is documented across a temperature range from -10°C to 30°C. Standard refrigerant charge levels are defined at 330–390 g for correct system operation. what an OEM service publication covers in this Yaris AC section remains the primary standard for climate control maintenance.

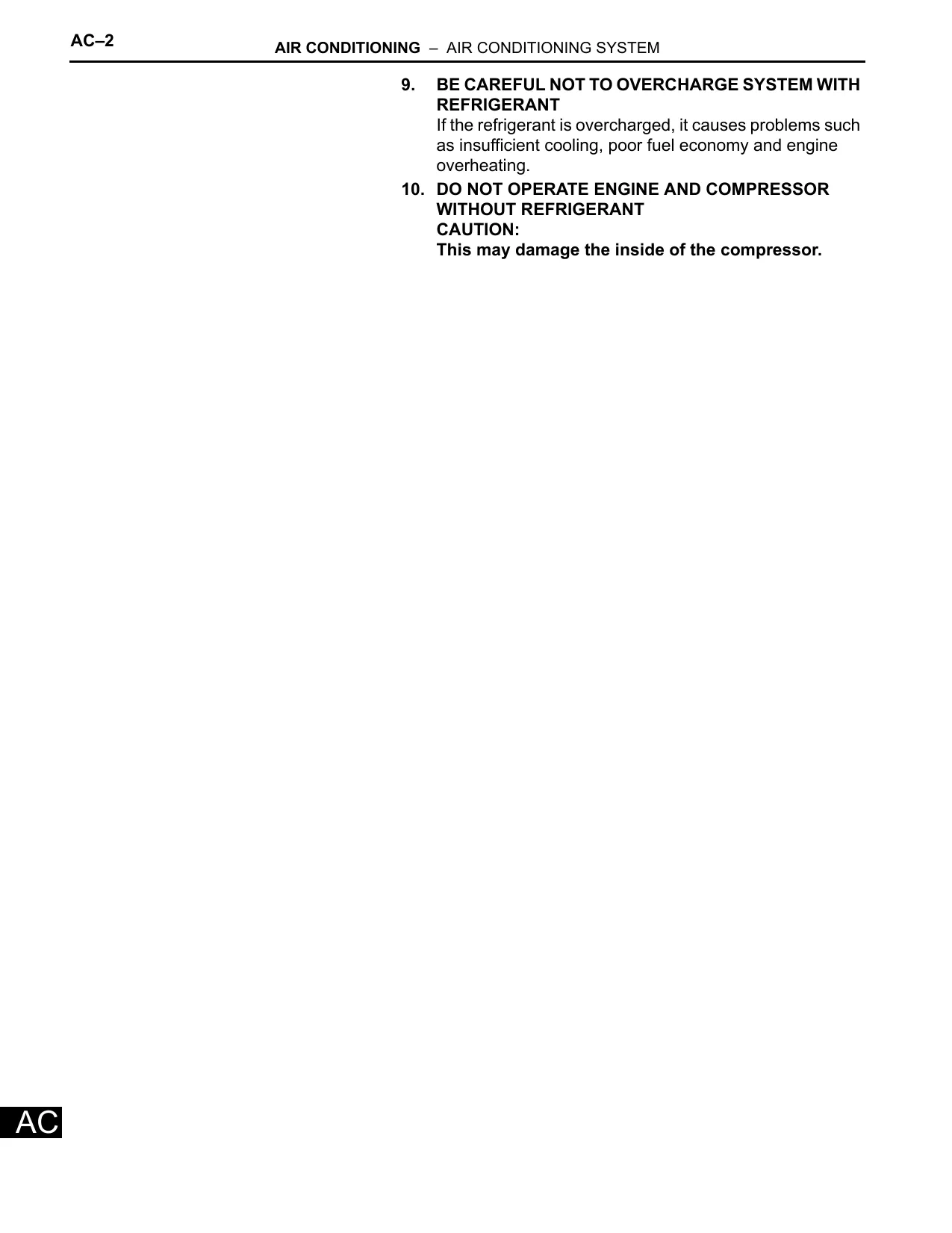

Note: This document is a technical reference for qualified mechanics; always use appropriate eye protection and observe refrigerant handling precautions when servicing A/C systems to prevent injury.

An official Toyota OEM service manual covering the 2006–2008 Toyota Yaris, documenting A/C system diagnostics, component location, refrigerant handling, and technical repair specifications for the hatchback and sedan builds.

Document Reference: Original OEM manufacturer publication

Manual FAQ, Purchase & Download Details

Which specific document identity and model coverage information does this service manual contain? keyboard_arrow_down

Document covers the 2006-2008 Toyota Yaris model range as indicated by the title and model compatibility references.

Are there visual indicators in this document that show how to differentiate between the sedan and hatchback versions? keyboard_arrow_down

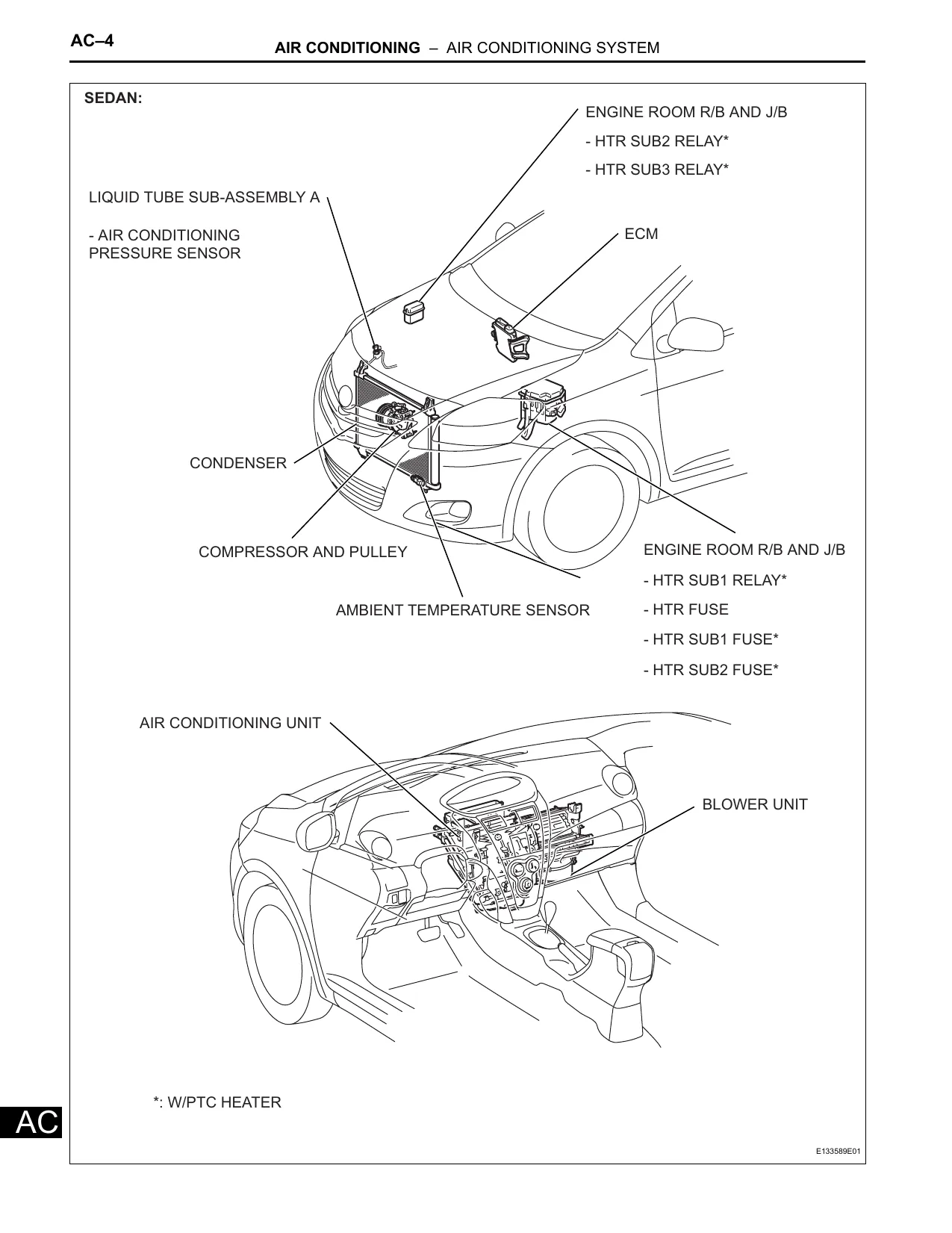

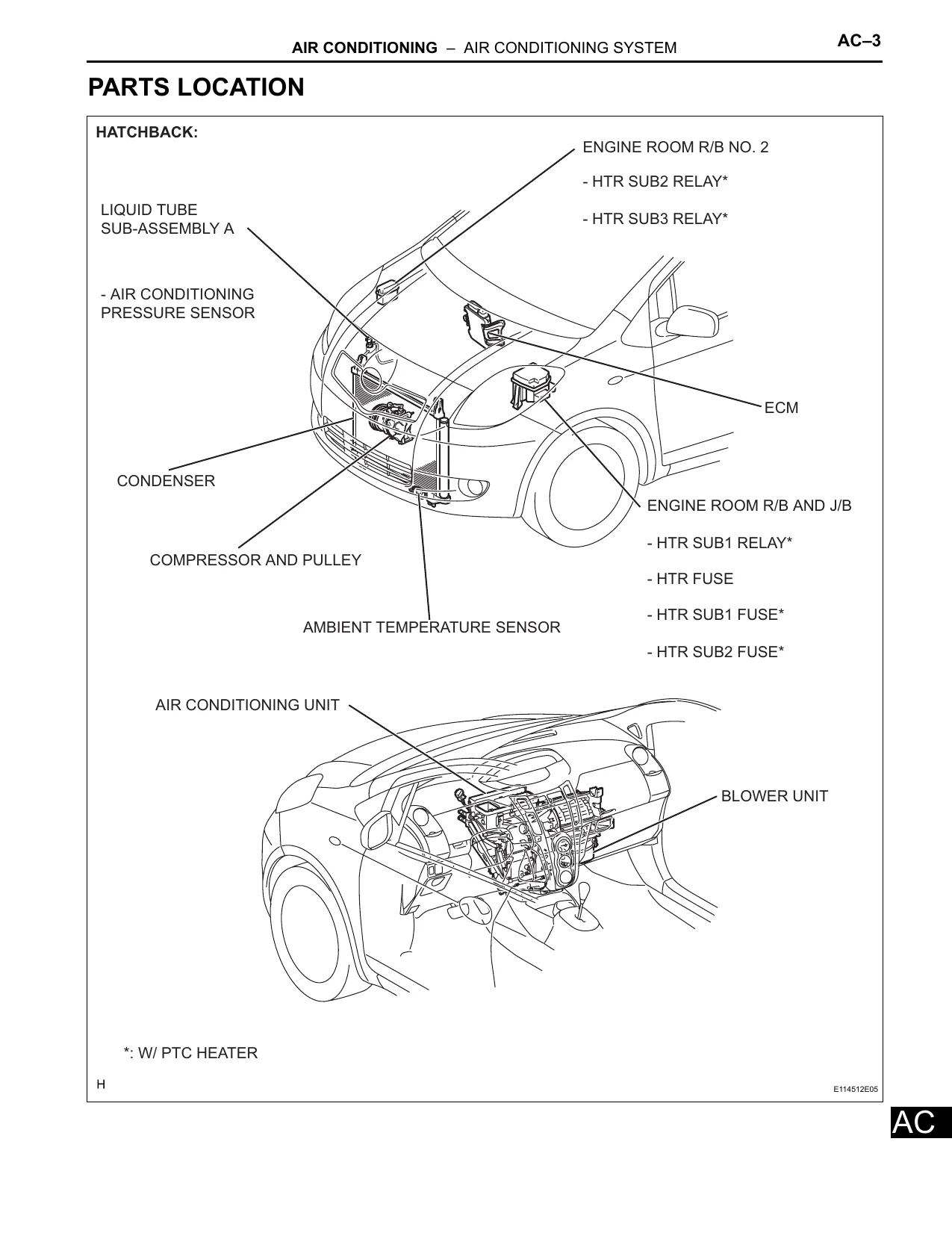

Manual contains specific parts location diagrams and system overview sections labeled for both sedan and hatchback variants. These illustrations show component layouts for each body style individually to help clarify the differences.

Is the document formatted in a way that includes exploded views and diagrams for internal system components? keyboard_arrow_down

Manual includes multiple diagrams and parts location illustrations covering systems such as the air conditioning unit, blowers, and various sensors.

What electrical reference data and signal information is listed for the air conditioning system? keyboard_arrow_down

Document contains detailed terminal description tables, specified voltage ranges, and waveform references for the ECU connectors. These sections provide signal characteristics and wiring color codes for the air conditioning amplifier and associated sensors.

Does this manual contain technical specification tables regarding operating conditions or system parameters? keyboard_arrow_down

Yes, the manual includes specification tables that detail parameters such as standard battery voltage ranges and engine speed limits for system engagement. These tables serve as technical references for system operation and terminal conditions. Further details are organized by system component to support identification of technical requirements.
