Toyota Tarago/Townace/Liteace 1982–1989 Repair Manual – 4Y-E

The 1987 Toyota Van Repair Manual documents the 4Y-E gasoline engine and the vehicle's 2WD and 4WD systems. Carbureted Y-series and C-series diesel engine overhauls are outside this publication's scope.

PDF Bookmarks and Wiring Detail

Search, navigation, and diagrams: Repair text is not searchable. The PDF has 27 embedded bookmarks for section-level navigation. Small connector numbers and wire codes require zooming, and several wiring diagrams are sideways.

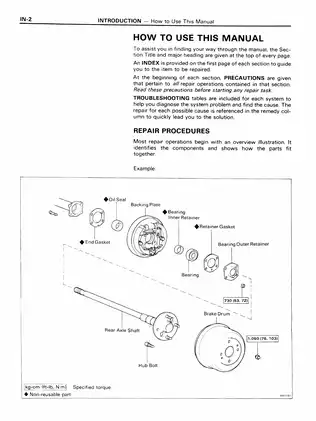

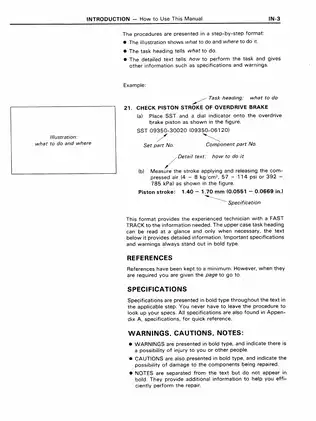

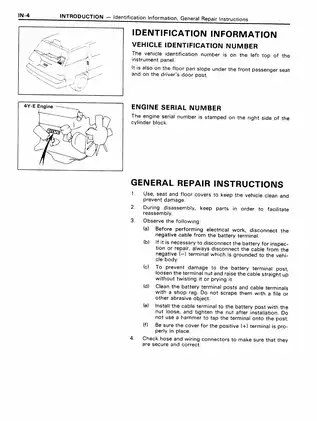

The RAR download contains one printable, 1,021-page PDF, including four supplementary pages and one blank page.

4Y-E Engine, Drivetrain and Electrical Repair

The following selected highlights outline the repair coverage. Other topics include seat-belt testing and remote-control mirror checks.

• 4Y-E engine overhaul: Removal and refitting, cylinder-head rebuilding, chain-drive and camshaft work, plus inspection of pistons, crankshaft journals, and bearings.

• TCCS injection and ESA diagnosis: Engine-warning blink codes, ECU terminal measurements, injector checks, and fuel-delivery testing for the electronic control system.

• G53 gearbox and clutch: Internal strip-down and rebuilding, shaft and synchronizer checks, shift-cable setup, and servicing of the hydraulic clutch controls.

• A45DL/A45DF automatic transmission: Stall-speed, engagement-delay, and hydraulic tests, together with valve-body work and overhaul of the pump, clutches, and brakes.

• 4WD transfer and front axle: Transfer-unit rebuilding, vacuum-operated shift troubleshooting, electrical control checks, hub servicing, and differential setup.

• Brake and steering systems: Hydraulic brake repair, LSP & BV pressure checks, rack and pump rebuilding, and service of the steering bevel-gear housing.

• Body electrical faults: System wiring, connector identification, and component-level tests for instruments, lighting, power-operated accessories, and cruise control.

The step-by-step procedures suit experienced technicians familiar with the special service tools and test equipment required for internal overhaul and electrical diagnosis.

Valvetrain Designs and Cylinder-Head Work

Hydraulic lifter procedures distinguish Toyota and GM designs, including their different air-bleeding methods and leak-down checks. The Toyota-type procedure specifies SST 09276-71010.

A cylinder-head removal caution links an incorrect bolt-loosening order to possible cracking or distortion of the head.

Fuel Injection and Emission Controls

The fuel chapter identifies pressure-test adapter SST 09268-45011 and describes checks of the cold-start injector and its time switch. The ESA System Circuit and ECU terminal tables connect ignition-control wiring with the electrical measurements used in fault diagnosis.

Emission-system checks address the EGR vacuum modulator, evaporative canister, and PCV components.

Scheduled Service, Cooling and Lubrication

Maintenance tables distinguish normal use from severe operating conditions and include engine servicing and chassis lubrication. Separate procedures address cooling-system leak testing, water-pump replacement, thermostat operation, and oil-pump condition. The starting and charging chapters contain starter tests and alternator rebuilding instructions.

Automatic Gearbox Tests and Transfer Controls

The Automatic Shift Diagram plots shift behavior against throttle position and road speed. Internal service information identifies valve-body check-ball positions and spring specifications; hydraulic testing calls for SST 09992-00093.

Overhaul instructions reach the planetary geartrain, overdrive unit, and one-way clutches. An assembly caution warns that excessive compressed-air pressure can damage the friction discs.

Overdrive electrical controls have configuration-specific information. Electrically shifted transfer units have an Electronic Control Circuit, with tests for the computer, speed inputs, vacuum switching valves, and actuator. Hub procedures distinguish manual free-wheeling units from automatic locking designs.

Suspension, Axles and Chassis References

Parking-brake data separates YR29 from YR22/YR31/YR32, while 4WD alignment specifications identify YR31LG and YR32LV. These distinctions help match adjustment data to the vehicle configuration.

Front-end instructions distinguish 2WD and 4WD alignment and torsion-bar settings. Both four-link coil-spring and leaf-spring rear suspensions are treated. Differential rebuilding includes bearing preload, shim selection, backlash measurement, and gear-tooth contact assessment.

Doors, Glass and Accessory Wiring

Mechanical body work includes sliding-door rollers and latches, window mechanisms, replacement glass, and roof-opening assemblies. Dimension drawings distinguish 2WD wagon, 2WD van, and 4WD bodies.

The Cruise Control System diagram accompanies actuator, cancellation-switch, and computer-circuit tests. Additional electrical fault checks cover switches, relays, instruments, and the heated rear window.

R-12 Cooling Equipment and A/C Diagnosis

The original R-12 installation is documented in single- and dual-system forms. Air Conditioning System Circuit drawings distinguish 2WD from 4WD installations, supported by manifold-gauge fault charts and cooling-performance evaluation.

Repair material extends to front and rear evaporators, expansion valves, compressor shaft seals, and the magnetic clutch. The refrigerator also receives its own service and control-system coverage.

Selected Fuel-Pressure Checks and Service Tables

The reference material brings together tightening torques, standard dimensions, wear limits, bearing preloads, selective-fit shim data, and electrical test values. Fluid specifications separate dry filling from routine refills and distinguish driveline and rear-heater configurations. SST and service-material tables identify the equipment and sealers used by the repair chapters.

The 4Y-E fuel-pressure specifications distinguish idle readings of 1.9–2.2 kg/cm² (27–31 psi) with the regulator vacuum hose connected from 2.3–2.7 kg/cm² (33–38 psi) with it disconnected and pinched off.

For the residual-pressure test, the manual specifies pressure remaining above 1.5 kg/cm² (21 psi) for five minutes after shutdown. Its fault guidance covers the fuel pump, pressure regulator, and injectors.

Pressurized fuel and refrigerant work requires appropriate protective equipment. Heavy drivetrain assemblies need secure support, and brake work calls for the relevant inspection and safety precautions.
