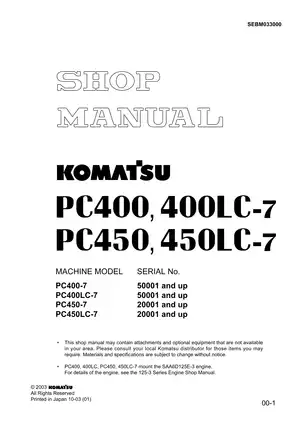

Komatsu PC400-7, PC400LC-7, PC450-7 & PC450LC-7 Excavator Shop Manual Extract — 2003 (P/N SEBM033000)
216 Pages • ZIP Download: 1 Printable PDF (English)
Komatsu Models Covered & Key Technical Specifications

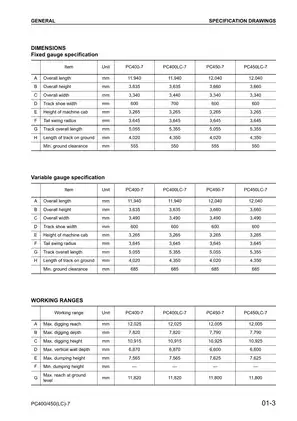

Models: PC400-7, PC400LC-7, PC450-7, PC450LC-7
Sub-models / Variants: Fixed gauge specification, Variable gauge specification
Model Years: 2003–2007 (2003, 2004, 2005, 2006, 2007)
Serial Numbers: PC400-7 and PC400LC-7: 50001 and up, PC450-7 and PC450LC-7: 20001 and up
-
Engine: SAA6D125E-3 (4-cycle, water-cooled, in-line, vertical, direct injection, turbocharger/aftercooler)
-
Engine Displacement: 11.045 liters
-
Flywheel Horsepower: 246.4 kW (330 HP) @ 1,850 rpm
-
Max Torque: 1,334 Nm @ 1,400 rpm
-
Hydraulic Pump Type: HPV190+190 variable displacement piston type
-
Hydraulic Flow: 345 liters/minute × 2
-
Swing Speed: 9.1 rpm
Komatsu Manual Features & Selected Content Preview
This Komatsu shop manual extract (P/N SEBM033000), printed in October 2003, covers the PC400-7, PC400LC-7, PC450-7, and PC450LC-7 excavators in fixed- and variable-gauge configurations. For 2003–2007 machines, check the model and serial range above. The extract contains General and Structure, Function and Maintenance Standard. Testing and Adjusting and Disassembly and Assembly are outside its scope.
PDF Search, Bookmarks, and Diagram Detail
Text search and navigation: Main text and many tables are searchable. Some diagram labels and the fuel, coolant, and lubricant chart require visual lookup. Embedded bookmarks link to the included systems and components. The circuit-sheet bookmarks under Chapter 90 lead to its contents page. Small labels in dense system diagrams are readable at higher zoom.

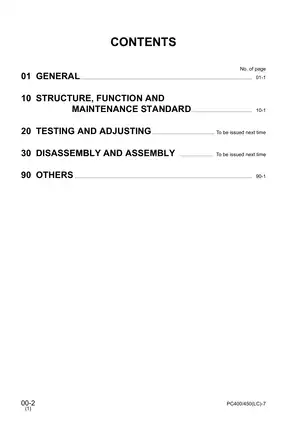

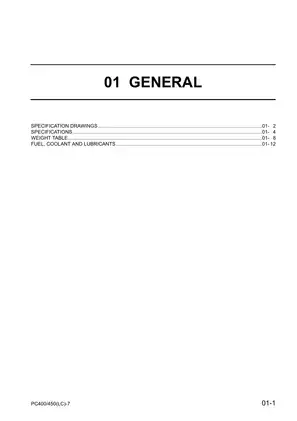

The ZIP contains one printable English PDF with 216 pages, including one original title page, four contents pages, and 11 blank pages.
Hydraulic Systems, Component Wear, and Monitor Controls
These selected highlights cover the main systems and inspection references. The manual also explains the PPC accumulator and the breaker return oil filter.
-
Power train and undercarriage: Final Drive and Swing Machinery section views, plus maintenance standards for track frames, recoil springs, idlers, carrier rollers, and track shoes.
-
CLSS hydraulics: Hydraulic Piping Drawing, pump operation, LS and PC controls, main control valve sections, motor brake functions, and relief-pressure specifications.
-
Work equipment: Boom, arm, and bucket cylinder dimensions, pin and bushing clearances, hydraulic drift prevention valves, and holding-valve operation.
-
Engine and electrical controls: SAA6D125E-3 installation details, engine and pump controller pin assignments, sensor characteristics, and functional system diagrams.
-
Monitor functions: Attachment-flow selection on equipped multi-monitor machines, maintenance timer resets, LCD checks, and user, service, and failure code display.
-
Service specifications: Component weights, fuel and lubricant tables, fluid capacities, and track shoe bolt torque and tightening-angle data.
This extract is suited to technicians familiar with excavator hydraulics and component measurement who need factory reference data for repair assessment.
CLSS Hydraulics and Attachment Circuits
The pump section uses performance curves and pressure-compensation diagrams to explain LS, PC, and EPC control of pump delivery. The hydraulic piping drawing identifies connections between the pump, main control valve, cylinders, pilot controls, and center swivel joint.
The main valve section distinguishes the boom, arm, bucket, swing, and travel circuits. It explains the boom drift prevention valve, optional arm drift prevention valve, quick return valve, and boom and arm holding valves.
With a breaker installed, the attachment selector valve routes return oil directly to the tank. The manual traces the different return path through the main valve for other attachments. Travel and swing motor sections give displacement, brake-release pressures, and safety-valve settings. They also explain how the travel-motor safety valve protects the motor and piping from pressure spikes during stopping, and how the swing reversal prevention valve reduces rebound.
Mechanical Inspection and Engine Coverage
Planetary-gear backlash tables pair measured clearances with component-specific remedies. Undercarriage tables cover sprocket wear, track link pitch, pin and bushing fits, roller wear, and recoil spring standards. Fixed- and variable-gauge dimensions and model-specific weights help identify the configuration and plan component handling.
Cylinder specifications give stroke lengths and pin-to-pin distances. The work equipment tables give connecting-pin clearances, bucket shim clearances, and arm and bucket dimensions.
Engine coverage includes the mounting arrangement, wet damper, radiator, oil cooler, and aftercooler. Detailed engine repair is covered by the separately published 125-3 Series Engine Shop Manual. The Air Conditioner Piping drawing shows component locations and line routing.
Follow factory precautions when working with pressurized hydraulics or lifting heavy excavator components.
Electrical Controls and Monitor Procedures
The Total System Diagram connects the engine and pump controllers with the monitor, sensors, and solenoids. Connector tables identify controller inputs and outputs. The accompanying sections explain auto-deceleration, overheat prevention, swing locking, and travel-speed control.
Monitor procedures cover maintenance status, timer resets, display adjustment, and LCD checks. Attachment-flow adjustment requires the multi-monitor specification, genuine attachment piping, and the attachment-installed setting.
The monitor section shows how to display user, service, and failure codes. Full fault tracing is outside the scope of the extract. Chapter 90 is limited to its contents page, which lists the full hydraulic, electrical, and air-conditioning circuit sheets. The functional diagrams are in Chapter 10.
Sample Swing Bearing and Track Wear Limits
For the swing circle bearing mounted on the chassis, the maintenance table gives a standard axial clearance of 0.5–1.6 mm and a repair limit of 3.2 mm. The table calls for bearing replacement at the limit.
For dry-type track links, the track shoe table gives a standard link pitch of 228.9 mm and a repair limit of 231.9 mm. This gives the shop a reference for assessing measured track wear.
