Komatsu WA70-1 Wheel Loader Shop Manual, 1993 (P/N SEBM04150104)
498 Pages • ZIP Download: 1 Printable PDF • 42.95 MB
Komatsu Models Covered & Key Technical Specifications
Model: WA70-1
Model Year: 1993
Serial Numbers: 10001 and up
Serial-specific sections: 10001–11999 and 12001 and up (transmission, axles, steering, brakes, work equipment, and electrical circuits)
Additional serial breaks: 10001–10101 / 10102 and up (power-train hydraulic circuit orifice); 10001–10245 / 10246 and up (upper hinge pin-to-rear spacer fit)
-
Engine: Komatsu 4D95L-W
-
Transmission type: TORQFLOW with three forward and three reverse speeds
-
Torque converter model: TCS28-4A
-
Transmission oil capacity: 21 liters
-
High idling speed: 2320–2420 rpm
-
Low idling speed: 750–850 rpm
-
Valve clearance (intake): 0.35 mm
-
Valve clearance (exhaust): 0.50 mm
-
Compression pressure (standard): Min. 30 kg/cm²
-
Cooling system capacity: 14 liters (S/N 10001–11999); 12 liters (S/N 12001 and up)
Komatsu Manual Features & Selected Content Preview
Komatsu shop manual P/N SEBM04150104 covers WA70-1 wheel loaders, serial numbers 10001 and up, with the 4D95L-W engine and TORQFLOW transmission. This edition carries © 1993 Komatsu and a Japan printing date of 05-93.
PDF Bookmarks, Wiring Detail, and File Contents
Search and diagram navigation: PDF text search is not available. Embedded bookmarks provide access to the main systems and many individual procedures. Small wire codes and connector numbers on the checked electrical circuit sheets require zooming.

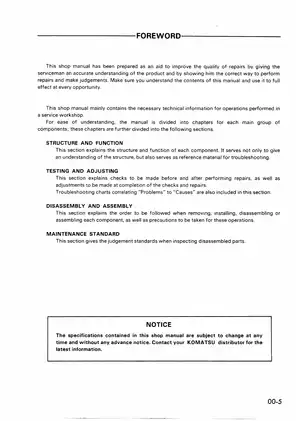

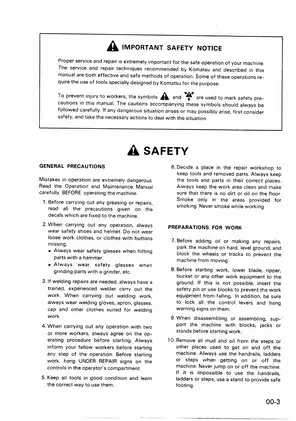

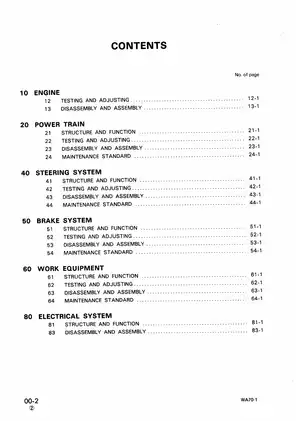

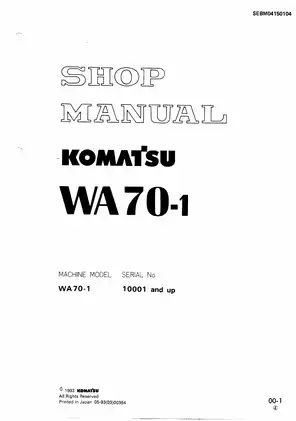

The ZIP download contains one printable 498-page PDF, including 12 opening pages of original cover, contents, safety information, and workshop reference material. These opening pages are already included in the total.
Loader Drivetrain, Hydraulic, and Brake Repair
The following is a selection of covered work, rather than a complete contents list. Other topics include fan-belt tension and accelerator-pedal checks.
-
Engine testing and removal: Compression and injection-timing checks; cylinder-head, fuel-injection-pump, nozzle-holder, and engine removal and installation.
-
Power train: Step-by-step torque-converter, transmission, and clutch-pack overhaul procedures; front and rear axle removal, differential repair, and axle-housing assembly.
-
Steering: Flow-divider-valve and steering-cylinder disassembly and assembly, steering-valve replacement, center-hinge service, steering-wheel play checks, and relief-pressure testing.
-
Brakes: Master-cylinder repair, wheel-brake inspection, parking-brake caliper and pad work, circuit bleeding, and brake performance and pressure checks.
-
Work equipment: Hydraulic-pump removal and installation, main-control-valve repair, lift and dump cylinder rebuilding, cycle-time and drift tests, and bucket-positioner adjustment.
-
Electrical systems: Wiring diagrams, cluster-gauge functions, starting, engine-stop and preheating circuits, plus instrument-panel removal and installation.
Written for service personnel, this shop manual assumes access to workshop equipment, including lifting equipment and the specified testing tools.
Engine Scope and Cooling Components
Engine coverage focuses on testing, adjustment, and removal and installation of major assemblies; it does not include a full 4D95L-W bottom-end overhaul section. Cooling-system procedures cover the water pump and radiator. Starting-motor, alternator, and fuel-tank removal and installation are also included.
Component-specific tightening data include the three-stage cylinder-head-bolt procedure, alongside the related valve-clearance and fuel-injection-timing references.
Transmission Controls, Axles, and Repair Cautions
The transmission-control-valve explanations cover the main regulator valve, quick-return valve and accumulator, power-modulating function, clutch cut-off valve, and accumulator valve. The Hydraulic Circuit Diagram for Power Train and Torque Converter and Transmission Piping views support tracing the oil paths behind the pressure tests.
Troubleshooting tables address failure to move, weak thrust, shift shock, engagement delay, and torque-converter overheating. Differential assembly coverage extends to bearing preload, shim selection, backlash, and tooth-contact checks; maintenance-standard tables provide inspection criteria for the final drives and axle mounts.
The clutch-pack cautions identify cylinder damage from a cocked piston, piston-seal damage, and plates or springs caught in the housing groove; transmission-control-valve cautions address misaligned oil seals and damaged seal lips. The drive-shaft section also warns that welding a bearing-cap strap can heat-damage the bearing.
Steering and Brake Diagnosis
The Hydraulic Circuit Diagram for Steering connects the flow divider, steering valve, and cylinders. Troubleshooting addresses sluggish or uneven steering, unwanted turning, and unequal turning radii, with center-hinge inspection standards supporting checks for mechanical play.
Brake Piping views distinguish the front and rear circuits. Wheel-brake coverage explains the wet single-disc arrangement, while parking-brake information covers the caliper, cable linkage, pad clearance, and holding-performance checks. Fault tables distinguish ineffective braking from brake drag.
Work-Equipment Hydraulics and Bucket Controls
The work-equipment Hydraulic Circuit Diagram shows how the hydraulic tank, filter, breather, pump, and main control valve connect to the lift and dump cylinders. Component explanations cover the relief, safety, and suction valves, together with control-lever and bucket linkage.
The tandem gear-pump description identifies the SAL25 steering/work-equipment section and SAL20 torque-converter charging section. Repair coverage includes cylinder packings, wear rings, and bushings, with separate main-control-valve procedures for the earlier and later serial groups.
For S/N 12001 and up, bucket-positioner coverage includes proximity-switch operation and adjustment. The later main-control-valve section treats the safety valve with suction valve as an assembly and cautions against internal disassembly.
Electrical Circuits by Serial Group
The Electric Wiring Circuit Diagram is supplied for both principal serial groups. Engine-stop explanations distinguish the earlier fuel cut-off solenoid and relay from the later fuel cut motor and engine-stop relay.
Starting-circuit information explains the neutral-safety-switch relationship. Preheating, cluster-gauge, brake-oil-level-sensor, and proximity-switch descriptions support interpreting the wiring and component functions.
Serial-Specific References and Workshop Tools
Separate information for S/N 10001–11999 and S/N 12001 and up covers component weights, transmission maintenance standards, work-equipment controls, main-control-valve procedures, and fluid capacities. Matching these references to the machine’s serial number helps select the appropriate inspection limits and procedures.
The lubricant and water chart distinguishes specified capacities from refill quantities. The weight table includes the engine and the different counterweights for planning component handling.
Tool tables identify hydraulic tester 799-101-5000, thermistor kit 799-101-6000, and push-pull scale 7A0-262-0020. Engine compression testing lists gauge 795-502-1204 and adapter 795-502-1380; brake pressure testing lists hydraulic tester 793-520-1801 and pump assembly 790-101-1102.

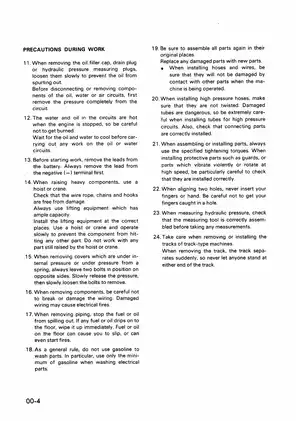

Before pressure testing or repair work, the manual repeatedly calls for the machine to be secured, the bucket lowered or properly supported, the parking brake applied, the tires blocked, and hydraulic pressure released before lines, plugs, or gauges are opened.
Sample Transmission and Steering Pressure Standards
Transmission pressure tables list main-regulator and clutch standards of 23 ±2 kg/cm² and 22 ±2 kg/cm², respectively, with high idle, coolant at operating temperature, and torque-converter oil at 60–80°C specified as test conditions. The torque-converter outlet standard is 4 +0.8/−0.5 kg/cm², with its dedicated pressure check taken at converter stall.
Steering relief-pressure testing lists a standard of 120 ±5 kg/cm² with hydraulic oil at 45–55°C and the engine at high idle.
