Yamaha YFA1 Breeze 125 Service Manual 1989-2004

For Yamaha YFA1 Breeze 125 models: diagnostics, service, and parts information. Includes detailed schematics and component data. Ref: 3FA-28197-10

4.6starstarstarstarstar_half(5)
visibility Preview Available

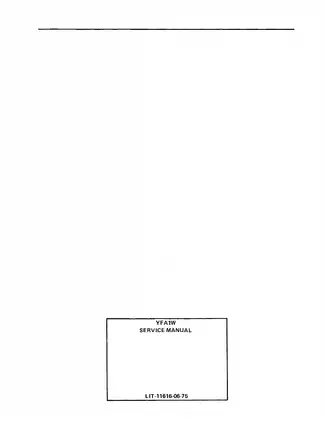

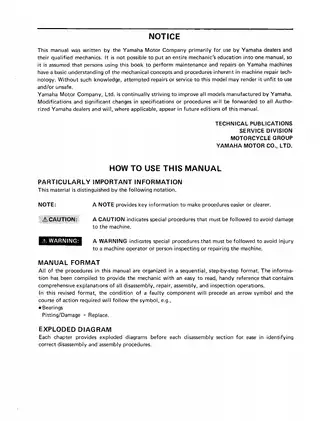

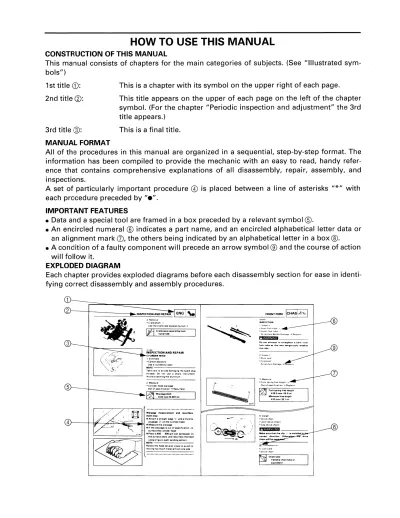

Yamaha Yamaha YFA1 Breeze 125 Service Manual 1989-2004 manual page preview - page 1 of 286

Sample pages from the Yamaha YFA1 Breeze 125 Service Manual 1989-2004 manual

Yamaha Yamaha YFA1 Breeze 125 Service Manual 1989-2004 manual preview page 1 - thumbnail
Yamaha Yamaha YFA1 Breeze 125 Service Manual 1989-2004 manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$17.70 (incl. VAT) Instant Download / No Shipping Fees
3 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Yamaha Models Covered & Key Technical Specifications

Models: Yamaha YFA1, Yamaha Breeze 125, Yamaha YFA1W Sub-models / Variants: USA, Canada (CDN), Australia (AUS), Switzerland (CH), France (F), Netherlands (NL), Sweden (S), Denmark (DK), 2WD Build Years: 1989–2004 Serial Numbers: JY43FAW0 KC000101, JY43FAN0 KC031101, 3FA-031101, 3FA-000101, 3FA-031101 Technical Data:

  • Engine: Air-cooled 4-stroke, SOHC, single cylinder
  • Displacement: 124 cc
  • Bore x Stroke: 49 x 66 mm
  • Compression Ratio: 9.0:1
  • Transmission: Single speed automatic (V-belt) with reverse
  • Starting System: Electric starter
  • Drive System: Chain drive
  • Spark Plug Gap: 0.6–0.7 mm
  • Engine Oil Capacity: 1.25 L (periodic change)
  • Fuel Tank Capacity: 7.0 L
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27272 / Nancy King
File Size:
18.12 MB
File Type:
PDF
Language:
English
Pages:
286
Printable:
Yes
Category:
Motorbike
Last updated / verified
Dec 5, 2025

Yamaha Manual Features & Content Preview

Yamaha YFA1 Breeze 125 Technical Manual

  • Covers 1989–2004 Yamaha YFA1 Breeze 125 models, including domestic and international variants for North American, Australian, and European markets
  • Official Yamaha publication P/N 3FA-28197-10, with supplementary identifier LIT-11616-YF-00
  • Contains 38 detailed exploded-view mechanical diagrams and 18 technical specification tables
  • Downloads to your account within seconds of checkout
  • Re-download the file any time, no expiration
  • Laid out for standard letter and A4 printing
  • OCR text layer lets you jump to a torque spec by keyword
  • This 286-page edition serves as the master reference for the 1989–2004 Breeze engine and chassis architecture, including the 3FA-series drivetrain documentation

Service and Maintenance Scope

The 1989–2004 Yamaha YFA1 Breeze 125 service manual provides a structured breakdown of the vehicle's mechanical components. Major content blocks encompass comprehensive general information, engine overhaul procedures, carburetor adjustments, and chassis maintenance. Dedicated chapters outline the inspection of suspension systems, brake assemblies, and electrical circuitry, providing the technical context necessary for maintaining the 124cc air-cooled power plant.

Specifications and Technical References

Engine and Chassis Data Highlights

This Yamaha YFA1 Breeze 125 publication includes detailed tolerance charts for the cylinder head, camshaft, and transmission assemblies. The cylinder head warp limit is 0.03 mm. Valve clearance for the intake is 0.08–0.12 mm as documented in the maintenance specifications. The transmission oil capacity is specified at 0.60 liters. Additional data covers torque specifications for critical fasteners, electrical resistance values for magneto and ignition coils, and tire pressure recommendations. The reference materials also document specific lubrication points and cable routing for the YFA1 configuration. Official YFA1 Breeze 125 maintenance intervals are defined for engine oil, drive chain lubrication, and suspension lubrication to ensure long-term reliability for the platform. This complete 286-page factory manual provides the technical specifications, assembly documentation, and diagnostic references required to service the 1989–2004 Yamaha YFA1 Breeze 125 platform.

Manual FAQ, Purchase & Download Details

Which chapters feature exploded view diagrams for engine and chassis components? keyboard_arrow_down

Exploded diagrams are included at the start of each relevant disassembly section to aid in the identification of internal parts and assemblies.

Are there limitations on the devices or software used to access the PDF document? keyboard_arrow_down

Service manual is provided in a standard PDF format that is compatible with most modern viewing software and mobile devices. Once the purchase process is completed, the document is available for immediate download to your computer or tablet.

Is there a specific section that lists the maintenance specifications and torque values? keyboard_arrow_down

Chapter 2 contains comprehensive specification tables that cover engine, chassis, and electrical maintenance categories, including torque references.

What model years and variations are encompassed by this service manual? keyboard_arrow_down

Publication provides coverage for the Yamaha YFA1 Breeze 125 motorcycle models produced between 1989 and 2004. The document includes serial number identification charts to help you verify coverage for your specific production year and version.

Does the manual include circuit diagrams for the various electrical systems? keyboard_arrow_down

Chapter 7 contains detailed circuit diagrams for the ignition, starting, charging, lighting, and signal systems. It also lists the color codes for wiring and provides references for the inspection of electrical components. These sections serve as a technical resource for understanding the wiring layout and connectivity across the machine.
