1975–1978 Ford 535 Tractor Loader Parts Catalog

This 1975–1981 Ford 535 tractor loader parts catalog combines numbered exploded drawings with parts tables for gasoline and diesel equipment. Other Ford models appear in shared-component applications; those entries do not extend the catalog’s complete coverage to every tractor listed.

Searchable Parts Tables and Section Bookmarks

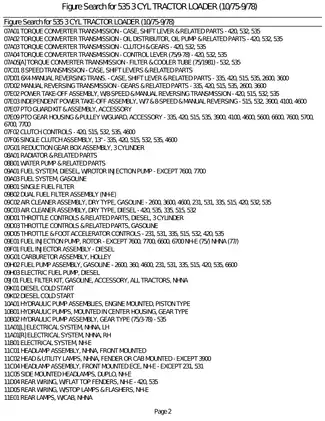

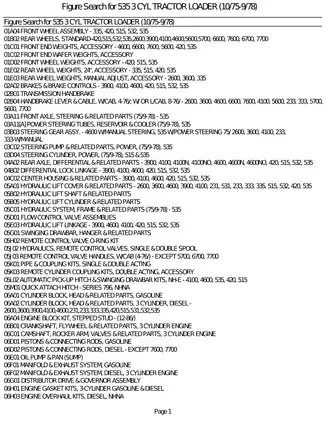

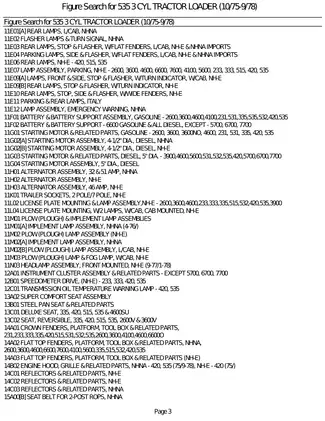

Figure lookup and drawing detail: Headings, figure identifiers, and parts tables support PDF text search. Callout numbers within the illustrations are not searchable. Six embedded bookmarks lead to the main file sections. Small callouts in the electrical parts drawings are easier to distinguish when enlarged.

One printable, English-language 511-page PDF includes 488 parts-catalog pages, one introductory cover page, a one-page figure-search guide, a four-page figure index, one blank page, 14 pages of English/French/Spanish abbreviations, and two pages of metric/inch hardware conversions. All are included in the total.

Engine, Driveline and Loader Hydraulic Parts

These selected parts groups are supplemented by listings for engine coolant heater kits and cab-mounted radio components.

• Engine and fuel equipment: Illustrated component listings cover the block and cylinder head, rotating assembly, Holley carburetor, rotary injection pump, and diesel cold start equipment.

• Transmission and PTO assemblies: Torque converter and manual reversing gear trains, transmission case and shift parts, PTO components, single clutch, and reduction gear box.

• Steering and hydraulic equipment: Front axle and power-steering parts, pump assemblies, hydraulic lift components, flow control valves, and remote valve kits.

• Rear axle and brake components: Differential and planet gears, differential lock linkage, brake housings, and handbrake parts cross-referenced to numbered illustrations.

• Electrical equipment: Market-specific harness arrangements, starter and alternator components, instrument cluster parts, and individual lamp assemblies.

• Seats and accessories: Super Comfort seat components, ROPS and seat-belt applications, cab and canopy equipment, wheel weights, tire pumps, and hitch assemblies.

The catalog suits mechanics and experienced owners who can interpret exploded drawings and match application notes to the equipment being repaired.

Model Applications and Parts Selection

Parts tables distinguish applications by model, fuel type, market, cab equipment, and production date. Entries also identify kit contents, fastener dimensions, and seal sizes, allowing individual components to be checked against the illustrated assembly before repair parts are ordered.

Scope: This is a parts-identification reference. It does not provide step-by-step overhaul instructions, diagnostic test charts, tightening-torque tables, or wear-limit specifications. Exploded drawings identify component relationships rather than a complete assembly procedure.

Engine, Fuel and Cooling Components

Crankshaft and flywheel listings accompany valve gear, pistons, connecting rods, lubrication components, and engine gasket kits. Diesel overhaul kits are cataloged as replacement parts. Radiator and water-pump assemblies have their own illustrated entries.

Certain replacement-block applications carry a filter-port plugging note. Overlooking that detail during engine replacement can leave an oil passage open, risking lubrication loss and bearing damage.

Figure 09G01, Carburetor Assembly, Holley, separates the float, fuel inlet needle, jets, and associated service parts. Rotary injection pump illustrations identify head-and-rotor components, governor parts, and seals, with fuel injectors listed separately.

Transmission, PTO and Rear Axle Components

The torque converter clutch and gears appear in 07A03. Figure 07D02 identifies the manual reversing gear train, including matched sliding connector and coupling components. The 8-speed section covers the transmission case, shift levers, and related parts.

PTO applications distinguish transmission-driven and independent equipment. Rear axle listings separate matched gear sets for handbrake and non-handbrake configurations, alongside bearings, shims, and seals. Planetary components also appear in the reduction gear box breakdown.

Hydraulic Pumps and Power Steering

Figure 03D04 identifies the power-steering cylinder’s piston rod, valve, and sealing components. Pump sections distinguish engine-mounted piston pumps, gear pumps within the center housing, and the separate 535 gear-pump assembly in 10B02.

The 535 frame hydraulic listings associate different pressure tubes and seals with D1NN600B and D8NN600AA pumps. That distinction supports matching replacement plumbing to the installed assembly.

Always secure heavy machinery and depressurize hydraulic lines before beginning any teardown work.

Electrical Layouts, Seats and Hitch Equipment

Figure 11D04 identifies rear wiring for NH-E flat-top-fender applications. These electrical drawings show harness and component arrangements; they are not circuit schematics or electrical diagnostic instructions.

Seat and ROPS entries distinguish belt, rollbar, canopy, and cab-kit applications. Accessory listings separate NH-E automatic pick-up hitch and swinging drawbar equipment from NHNA Series 796 quick-attach hitch components. Front-end weight kits and tire pump equipment are also illustrated.

Selected Pump and Steering Seal Dimensions

The 535 hydraulic frame table lists pressure-tube O-rings measuring 1.000" ID × .139" thick for D1NN600B pumps and 1.250" ID × .139" thick for D8NN600AA pumps.

The power-steering tube, reservoir, and cooler table lists O-ring 9617873 at .468" ID × .078" thick. These are component dimensions for parts identification, not wear limits or workshop adjustment specifications.
