1997 Dodge Caravan 2.0L, 2.4L, 3.0L, 3.3L, 3.8L, and 2.5L Service Manual

• Covers the 1997 Dodge Caravan/Grand Caravan NS/GS platform, related Voyager/Grand Voyager and Town & Country models, and left- and right-hand-drive configurations with FWD or AWD.
• Engine removal, cylinder-head service, and internal inspection cover the 2.4L DOHC, 3.0L, 3.3L, and 3.8L gasoline engines, plus international sections for the 2.0L SOHC and 2.5L VM turbo diesel.
• 31TH and 41TE automatic transaxle sections detail hydraulic pressure tests, clutch and valve-body overhaul, and bearing adjustments. A-598 (T-750) manual transaxle coverage includes synchronizer service and shaft-bearing preload.
• Fuel-system procedures address electric fuel pump module replacement, fuel-rail removal, multi-port fuel injection testing, diesel fuel-system bleeding, and injection-pump timing.
• AWD coverage extends to power transfer unit seal service, rear driveline module diagnosis, overrunning-clutch repair, and front and rear driveshaft reconditioning.
• Brake service covers disc and drum configurations, Teves Mark 20 ABS, traction-control components, hydraulic control unit replacement, and scan-tool-assisted bleeding.
• Electrical troubleshooting includes wiring and terminal repair, circuit tests, connector views, and system schematics in the 454-page Group 8W.

This Chrysler factory service manual comes as a 60-file PDF set totaling 2,264 pages: 1,902 pages in the combined service chapters, an 18-page clutch section, 342 pages of separately repeated variant sections, and two navigation pages. It is suited to mechanics experienced with factory diagnostics and equipped for DRB scan-tool testing and precision overhaul work.

Component and System Documentation

Separate sections document the intake manifold and exhaust system configurations for each engine variant. Gasoline engine work includes compression and combustion-leakage testing, 2.4L balance-shaft timing, and 3.3L/3.8L timing-chain inspection. The 2.4L timing-belt section flags valve-component damage from turning a camshaft with the belt removed.

Diesel coverage reaches cylinder-liner replacement and shim selection, plus piston-protrusion checks for head-gasket selection. Bosch VP36 injection-pump service is supported by fuel-supply restriction tests, injector and glow-plug checks, and fuel filter/water separator maintenance. Named timing equipment includes adapter VM.1011 and dial indicator VM.1013.

Transaxle, Chassis, and Body Repair

Post-repair procedures for the 41TE include Quick Learn, electronic Pinion Factor setup, and resetting torque-converter clutch break-in status. The manual identifies OD/UD reaction plates, snap rings, and input-clutch retainers that are not interchangeable with previous-year parts, and warns that mixing similar clutch components can cause failure.

Clutch coverage distinguishes the modular gasoline assemblies from the conventional diesel clutch and pressure plate. Suspension and steering sections cover wheel alignment, load-leveling rear shocks, power-steering pump pressure/flow testing, and steering-gear replacement. Body repair includes sliding-door adjustment, stationary-glass replacement, water-leak diagnosis, and frame/body-opening dimensions.

Front and rear heating/A/C sections cover leak testing, evacuation and charging, and heater-core replacement. Actuator calibration, diagnostic checks, and the cooldown test address HVAC control operation after service.

Wiring Diagrams and Diagnostic Coverage

Named illustrations include the 31TH Transaxle Hydraulic Schematic, the Rear Carrier Component Identification exploded view, and the diesel Piston Protrusion Chart. Electrical references include Fuel/Ignition Systems (8W-30), Transmission Control System (8W-31), and Connector Pin-Outs (8W-80). Ground and splice locations support tracing faults through the harness.

Diagnostic trouble-code information and PCM/BCM system descriptions accompany the service procedures. Separate diagnostic manuals are required for some detailed fault-isolation work; the referenced Powertrain, Body, ABS, and Passive Restraint diagnostic books are not included.

Technical Data and Service Parameters

Cooling-system procedures cover leak testing, radiator-fan diagnosis, and water-pump replacement. The specification tables cover fuel-tank, cooling-system, and transaxle capacities, along with component-specific torques, approved lubricants, wear limits, clearances, and sensor resistance values.

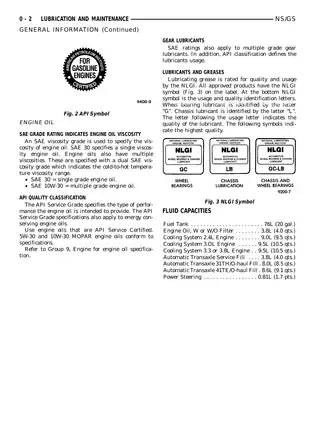

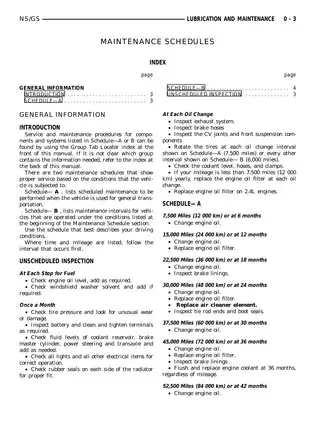

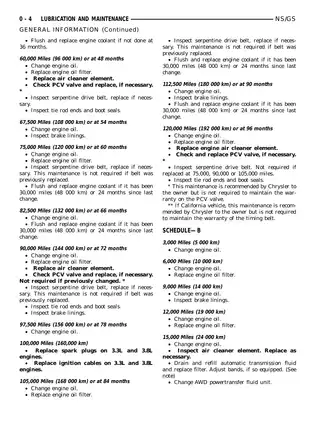

Lubrication and maintenance schedules distinguish gasoline and diesel vehicles and separate normal from severe operating conditions.

Always adhere to standard shop safety protocols and verify specifications with factory data before executing complex diagnostics or heavy mechanical disassembly.
