OMC Cobra Sterndrive 2.3L-5.8L Outboard Marine Corporation Service & Repair Manual (PN 909570)

• 618 PDF pages total: a 608-page OMC Cobra service manual plus a 10-page companion wiring-diagram PDF, covering 2.3L, 3.0L/3.0L HO, 4.3L/4.3L HO, 5.0L/5.0L HO, 5.7L, and 5.8L stern-drive packages.
• Package and drive identification covers 232-, 302-, 432/434-, 502-, 574-, and 584-series model codes, mechanical or power steering, standard- or counter-rotation drives, and the matching vertical-drive and transom-mount assembly numbers.
• Stern-drive repair procedures address the transom bracket, bellows, gimbal and pivot housings, upper gear housing, U-joints, water pump, standard- and counter-rotation lower gearcases, gear shimming, backlash, rolling-torque checks, and pressure/vacuum testing.
• Electrical, fuel, and cooling diagnosis includes charging and cranking circuits, ignition and ESA systems, carburetor and fuel-pump service, cooling-system fault isolation, and engine-specific water-flow diagrams.
• Trim, steering, and control work covers hydraulic testing and bleeding, trim/tilt unit and cylinder service, power-steering pump and cylinder repair, remote-control overhaul, shift-cable adjustment, and hard-shift or jump-out-of-gear troubleshooting.
• Wiring and schematic support includes selected engine-cable diagrams, the all-model instrument-cable diagram, trim/tilt hydraulic circuits, engine-specific cooling-flow drawings, diagnostic charts, and exploded assembly views.

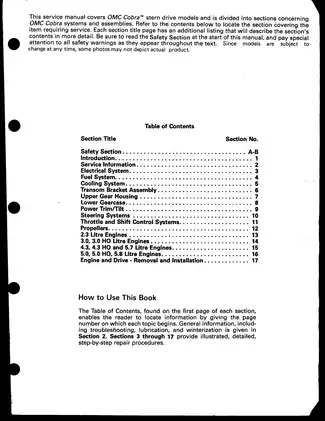

Model and Drive Identification

Coverage is organized by OMC engine-package code. The model table includes 232BMRPWS and 232BPRPWS through 584APRPWS and 584AMLPWS. It decodes M/P as mechanical or power steering and L/R as counter- or standard-rotation vertical drives, then ties each package to its vertical-drive assembly and transom-mount number. A separate ratio chart distinguishes the drive families: 2.00:1 for 2.3L, 1.86:1 for 3.0L, 1.68:1 for 4.3L, 1.59:1 for 5.0L, and 1.41:1 for 5.7L/5.8L applications.

Diagnostic and Repair Coverage

The service-information section supplies the baseline data used before teardown: tune-up sequence, compression testing and limit charts, timing procedures, fuel requirements, lubrication and fluid-capacity data, belt adjustment, storage and submerged-engine procedures, break-in checks, general torque tables, and system-isolation troubleshooting.

Electrical coverage is divided by engine and ignition configuration. It addresses batteries and cables, charging and cranking systems, circuit protection, sending units, trim/tilt circuits, spark-plug and firing-order data, ESA operation, component-specific test data, and the timing-sensor, knock-sensor, coil-pack, and ignition-module arrangement used on the 4.3L HO.

Fuel chapters separate the Rochester 2-barrel used on 3.0L PWC packages, Holley 2-barrel applications on 2.3L, 3.0L/HO, 4.3L, and 5.0L/HO PWS packages, and Holley 4-barrel coverage for 5.7L and 4.3L HO/5.8L PWS packages. These sections add fuel-pump pressure and vacuum tests, filter and line service, carburetor disassembly and inspection, adjustment data, and boat-, engine-, and carburetor-side troubleshooting.

Internal drive repair is covered, not just routine lubrication and adjustment. The transom section addresses exhaust and U-joint bellows, gimbal and pivot bearings, hydraulic manifolds, trim cylinders, water passages, and shift-cable installation and adjustment. Upper- and lower-unit chapters add U-joint shaft service, water-pump repair, bearing-carrier work, drive- and pinion-shaft shimming, propeller-shaft and gear service, shift-rod setup, lubricant procedures, and final leak testing.

Engine and vertical-drive removal, installation, coupler service, rear mounts, hookups, and alignment are handled in a dedicated closing section. Propeller coverage adds selection, removal and installation, hub replacement, application charts, and test-wheel data.

The trim/tilt chapter follows hydraulic operation through trim-out, tilt-up, trim-in, relief, shallow-water, reverse, impact, manual-release, and thermal-expansion conditions, then moves into pressure testing and component repair. Steering coverage includes pump and cylinder diagnosis, hose and cable service, leak checks, and air purging. The throttle/shift section covers remote-control repair, cable setup, ESA interrupter and overstroke-switch testing, and fault isolation for hard shifting, ignition interruption, and jumping out of gear.

Engine-Section Scope

The engine chapters are not identical in depth. The 3.0L and 4.3L/4.3L HO/5.7L sections contain major internal repair coverage for cylinder heads and valves, camshafts and bearings, crankshafts, main and rod bearings, block inspection and conditioning, pistons and rings, oil pumps, and timing components.

The 2.3L chapter concentrates on the timing belt, timing checks, manifolds, oil pan and pump, rear seal, rocker and lash-adjuster work, valve-clearance inspection, water pump, compression and cam-lobe testing, and PCV service. For 2.3L procedures outside that chapter, the publication directs the technician to the Ford Power Products Service Manual P/N 194-216.

The 5.0L/5.0L HO/5.8L chapter is a marine-service section covering core plugs, rear seal, manifolds and exhaust, mounts, oil pan and pump, valve train, water pump, compression checks, and specifications; it should not be treated as the same full block-overhaul chapter provided for the 3.0L and Chevrolet-based 4.3L/5.7L engines. The 4.3L/5.7L section likewise points to the appropriate Chevrolet Engine Service Manual for additional engine operations beyond this volume.

Schematics, Special Tools, and Assembly Cautions

The companion wiring PDF contributes seven distinct content sheets, including the 2.3L/5.0L/5.0L HO/5.8L engine-cable diagram, 3.0L/3.0L HO PWS diagram and legend, 4.3L HO diagram and legend, and the all-model instrument-cable diagram. Other useful visual references include engine-specific cooling-water-flow drawings and trim/tilt hydraulic-operation schematics for trim, tilt, relief, impact, manual-release, and thermal-expansion conditions.

Named shop equipment includes the OMC Vacuum Tester P/N 390954, Trim/Tilt In-Line Pressure Tester P/N 983977, Shift Rod Height Gauge P/N 912277, Bellcrank Alignment Plate P/N 914017, and Shim Gauge Kit P/N 984329.

The manual flags several assembly errors with direct component consequences. On the standard-rotation lower unit, the propeller-shaft bearing housing must be installed with its cast “UP” mark correctly oriented, and using the retainer screws to pull the housing into place can strip the threads. The counter-rotation clutch dog is directional; reversing it prevents full forward engagement and can immediately damage the dog and gear. During drive removal, unsupported trim cylinders can drop as the pivot rod comes out and damage the hydraulic lines.

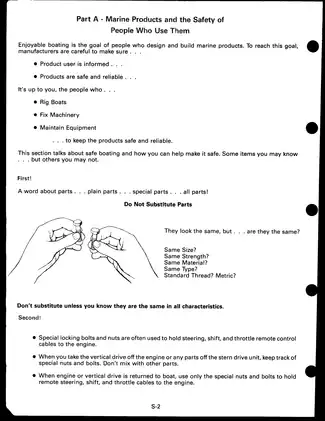

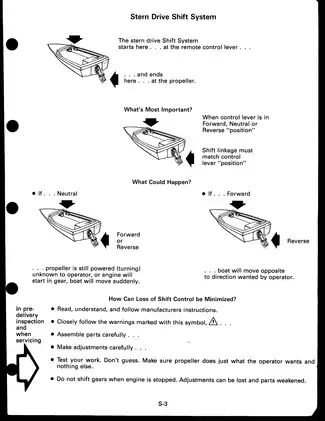

Review the manual’s safety section before fuel, electrical, hydraulic, steering, or drive-removal work.
