1986–1998 OMC Stern Drive 2.3L, 3.0L, 4.3L, 5.0L, 5.7L, 5.8L, 7.4L and 8.2L Repair Manual Collection

The stern-drive manual provides application-specific repair information. The appended excerpt offers general outboard guidance; it is not an additional model-specific OMC stern-drive manual.

PDF Search, Bookmarks and Diagram Detail

Search and navigation: Text search works through much of the main manual, but some pages and portions of tables are not searchable; the outboard excerpt has no searchable text. Embedded bookmarks cover the chapters, index and Engine Finder. The Chapter 6 bookmark incorrectly says GM V8 rather than Ford V8. Small wiring labels require zooming, and some application-table characters are obscured.

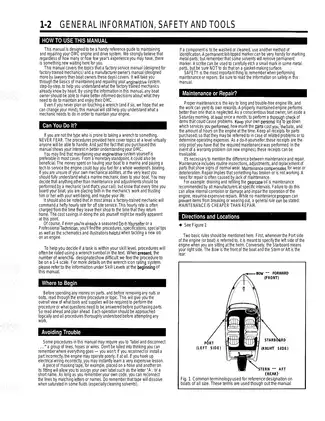

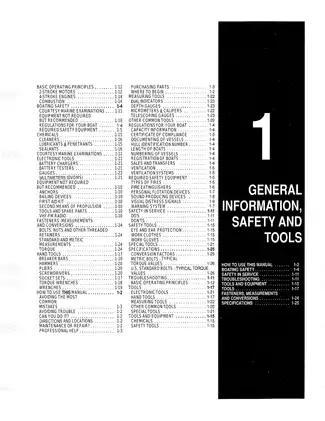

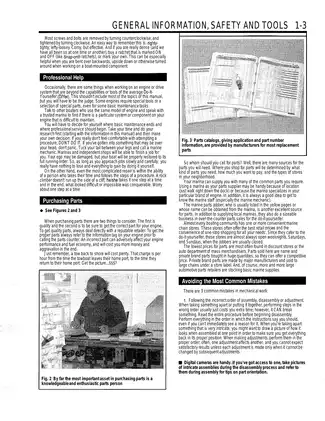

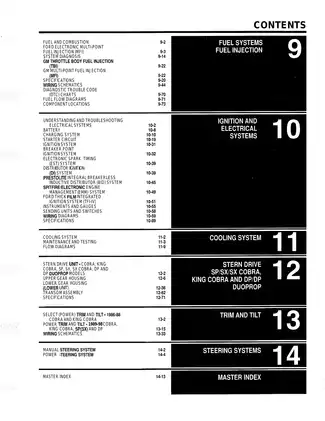

The ZIP download contains one printable English PDF with 615 pages, including the 611-page stern-drive manual and four appended outboard pages. Contents pages, chapter indexes and the Engine Finder are included in that total.

Engine Rebuilding, Fuel Diagnosis and Stern-Drive Service

The following topics are selected coverage highlights, rather than a complete contents list. Battery specific-gravity checks and transom shift-cable sleeve replacement are further examples of the material included.

• Maintenance: Fluid and lubricant service, anodes, belts, compression checks, ignition adjustments, stern-drive oil changes, winter storage and spring commissioning.

• Engine repair: Step-by-step removal and installation, minimum engine-height checks, alignment, cylinder-head service, valve-train work, timing systems and engine reconditioning.

• Fuel systems: Rochester and Holley carburetor service, Ford MFI and GM TBI/MFI diagnosis, fuel-pressure testing, DTC charts and ECM connector references.

• Electrical systems: Battery, charging and starter diagnosis, ignition-system tests, instrument and sender checks, connector repair and application-specific wiring schematics.

• Cooling systems: Raw-water and closed-cooling troubleshooting, pressure and flow tests, thermostat checks, circulating-pump service and raw-water impeller replacement.

• Stern-drive overhaul: Upper and lower gear-housing disassembly, bearing inspection, preload, backlash, shimming, shift-mechanism setup, U-joint service and transom-assembly repair.

• Trim and steering: Hydraulic and electrical fault isolation, system bleeding, pump/manifold and cylinder service, trim-sender adjustment, and manual or power steering tests.

The manual is written to take OMC boat owners from routine maintenance into repair work and also addresses seasoned DIY mechanics and professional technicians. Many procedures carry a one-to-four-wrench difficulty rating; engine reconditioning, drive shimming and hydraulic pressure diagnosis still require the equipment and workshop skills appropriate to the job.

Engine and Application Identification

The Engine Finder gives year-specific coverage rather than treating every displacement as available for the full 1986-1998 span. Ford four-cylinder coverage is the 2.3L for 1987-1990. Ford V8 applications are the 5.0L for 1989-1996; 5.0 HO for 1990-1993; 5.8L for 1989-1996; 5.8 HO for 1995; 5.8 LE for 1991-1993; and 7.5L for 1987-1990.

GM four-cylinder and V6 coverage includes the 2.5L for 1986; 3.0L for 1986-1998 and 3.0 HO for 1990-1993; and 4.3L for 1986-1998 with 4.3 HO for 1990-1993.

GM V8 rows cover the 5.0L for 1986-1988 and 1998; 5.7L for 1986-1992, 1994, and 1996-1998; 5.7 LE for 1990-1992; 7.4L for 1988 and 1990-1998; and 8.2L for 1992-1993 and 1998. Separate CID-designated applications cover the 262, 350, 351, 454, 454 HO, 460 and 502 configurations.

Engine and drive model-number tables help match the installed package to the relevant service data before parts or procedures are selected.

Engine Service and Reconditioning

Engine chapters are divided by Ford four-cylinder, GM four-cylinder, GM V6/V8 and Ford V8 architecture. The overhaul chapter goes beyond external service with cylinder-head and block disassembly, inspection and refinishing guidance, damaged-thread repair, assembly checks, and start-up and break-in coverage.

Specified equipment includes OMC alignment tool P/N 912273 with handle P/N 311880 and Ford valve tool T74P-6565-A. Component-specific torque tables, capacities, oil-pressure data, clearances and wear limits accompany the applicable work.

Fuel Injection and Electrical Diagnosis

Fuel-injection material connects symptom checks with fuel-pressure leakdown tests, pump and regulator checks, injector electrical tests, DTC information and ECM pin references. The 1998 7.4Gi fuel-flow diagram distinguishes that arrangement from the other GM MFI layouts.

Ignition coverage separates breaker-point, EST, DI, Prestolite BID, Spitfire EMM and Ford TFI-IV systems. The electrical section also includes the 1998 7.4GSi/8.2GSi engine wiring schematic.

Fuel and ignition service calls for proper ventilation, fire protection, battery isolation and marine-rated spark-suppressed electrical parts around gasoline vapors.

Cooling, Gear Housings and Transom Assemblies

Cooling diagnosis distinguishes raw-water faults from closed-system and mechanical causes of overheating, including water entering cylinders or engine oil. Flow illustrations include the V6/V8 fuel-injection closed-cooling diagram. The manual warns that operating without water through the raw-water pickup pump can damage its impeller.

Drive illustrations include the SP/SX/SX Cobra and DP/DuoProp upper-housing exploded view and backlash/shim charts. These support the different bearing, gear and shift arrangements rather than presenting one universal overhaul procedure.

On applicable lower units, the pinion-bearing cage can distort if the bearing is removed without its needles in place. Drive shimming also requires the specified special tools.

Trim Hydraulics and Steering Tests

The trim material separates the 1986-1988 Select system from the 1989-1998 designs. Diagnostic charts distinguish electrical failures from hydraulic symptoms such as creep, erratic movement and failure to raise or lower. The 1996-1998 GM-equipped DP trim/tilt schematic supports circuit tracing.

Service equipment includes trim/tilt in-line pressure tester P/N 983977 and Kent-Moore power-steering pressure gauge J-5176. Steering coverage connects pump leakage and pressure checks with actuator, cylinder, cooler and cable service.

A Preview of Power-Steering Test Specifications

For 1990-1998 power-steering systems, the pump-test section specifies an open-valve pressure of 50–100 psi with fluid at 150–190°F (65–88°C).

The same section gives a relief-valve pressure of 1,000–1,100 psi. These specifications belong to the steering pump test, rather than the separate trim/tilt hydraulic system.
