1986–1988 Yamaha FZ600S / FZ600SC Service & Factory Manual (P/N LIT-11616-05-48)

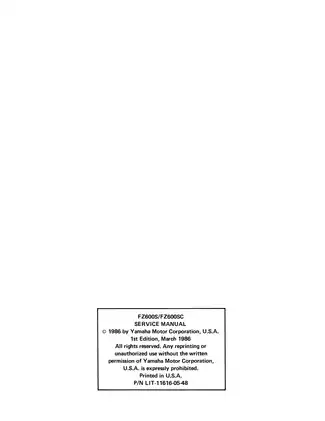

• Yamaha factory service manual for the FZ600S and FZ600SC, supplied as a 314-page PDF. P/N LIT-11616-05-48, first edition, March 1986.
• Covers engine removal, crankcase separation, cylinder-head repair, valve-guide and seat work, piston inspection, and camshaft timing.
• Details wet-clutch overhaul and six-speed transmission repair, including shift-fork, shift-cam, starter-clutch, and HY-VO primary-drive inspection.
• Mikuni BS30 carburetor coverage includes removal, disassembly, diaphragm and needle-valve inspection, float-height and fuel-level adjustment, and carburetor synchronization.
• Brake and suspension procedures cover front and rear calipers and master cylinders, hydraulic bleeding, air-assisted fork overhaul, and swingarm bearing service.
• Electrical troubleshooting addresses starting interlocks, TCI ignition, charging, lighting, and signal faults using circuit diagrams and component tests.

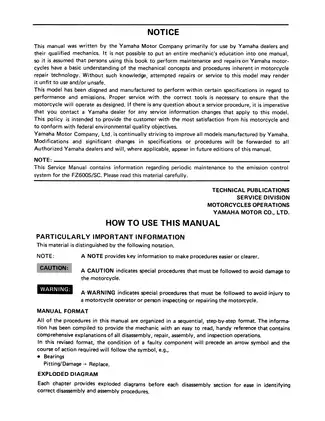

What the Manual Documents

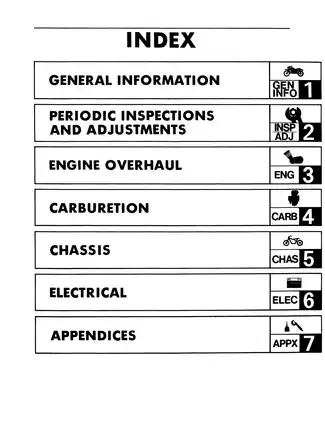

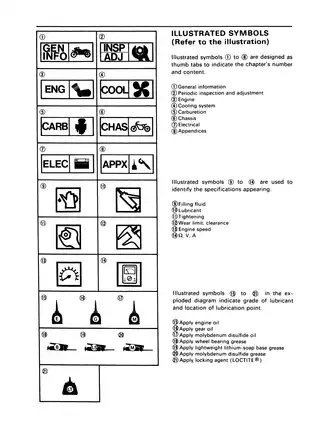

This official factory publication organizes the content into seven indexed chapters: General Information, Periodic Inspections and Adjustments, Engine Overhaul, Carburetion, Chassis, Electrical, and Appendices.

Coverage distinguishes the FZ600S (2AX, except California) from the FZ600SC (2AY, California). The identification section lists starting engine serial numbers 2AX-000101 and 2AY-000101, respectively, with starting VIN patterns JYA2AX00*GA000101 and JYA2AY00*GA000101. Both configurations use an air-cooled DOHC four-cylinder engine with wet-sump lubrication.

Periodic service covers valve-clearance adjustment, manual cam-chain tension adjustment, and compression testing. The compression section includes cylinder-to-cylinder comparisons and diagnostic follow-up for low readings. Maintenance tables separate emission-control checks from general lubrication and service.

California Equipment and Carburetor Identification

For the California model, the manual documents the carburetor air vent system, canister, rollover valve, and hose routing. Its troubleshooting chart addresses loss of engine power associated with an inoperative air vent control valve. Carburetor identification marks are 2AX00 for the FZ600S and 2AY00 for the FZ600SC.

Engine and Chassis Repair Details

Engine repair coverage extends to the trochoid oil pump, lubrication relief valves, oil-cooler removal and installation, and crankshaft runout checks. Yamaha identifies the cylinder head, cylinder, pistons, and clutch as removable with the engine still in the frame.

Suspension coverage includes variable-damper inspection and adjustment in the front forks, plus steering-head bearings and the New Monocross rear suspension linkage. The rear-shock section covers removal, inspection, replacement, and the pulley-and-belt preload adjuster—not internal rebuilding of the nitrogen-charged damper.

Camshaft assembly cautions address cylinder-head, cap, and camshaft damage from uneven cap tightening. Fork-disassembly notes flag damage to the oil-lock piece if the inner tube bottoms in the outer tube.

Electrical Tests and Illustrated References

Starter-motor repair includes brush, commutator, and armature checks. Separate electrical tests cover the generator’s stator and field coils, oil-level switch, and fuel-gauge sender.

The FZ600S/SC Circuit Diagram and Starting Circuit Operation flowchart support fault tracing, while Cable Routing drawings locate harnesses and hoses. For mechanical work, the Carburetor Section View identifies the main-metering, float, and starter circuits. The Lubrication Chart and Transmission exploded view cover oil distribution and gearbox component arrangement.

Specification Highlights

The reference tables provide component-specific tightening torques and fluid capacities. Inspection data cover cylinder-head warpage, crankshaft main-bearing oil clearances, and intake/exhaust valve clearances. Electrical specifications include resistance and charging-voltage data.

Valve-pad selection charts and color-coded main-bearing and connecting-rod bearing selection guidance support parts sizing during engine repair. Special tools are identified by part number, including tappet adjusting tool YM-01245, vacuum gauge YU-08030, and fuel-level gauge YM-01312 with adapter YM-01329.

Before beginning any mechanical work or applying torque values, always review the manufacturer safety guidelines and technical alerts to prevent component damage or personal injury.
