Yamaha FZR750/FZR1000 Genesis 1987–1988 Service Manual Set (P/N LIT-11616-FZ-10)

Yamaha specifies that the RT model-change material be used with the FZR1000T/TC procedures, and the RU supplement with the earlier service information. Keeping these sections together lets you match the model-specific revisions to the shared repair procedures.

PDF Search, Bookmarks, and Diagram Detail

Search and diagram access: PDF text search is not available. Embedded bookmarks cover the base manual and both 750 sections, although some destinations open on an adjacent page. “Back to Index” points to a separate file outside this ZIP. Small wiring labels require zooming, particularly in the RU diagram.

The ZIP contains one printable, 419-page PDF in English. That total includes the shared cover, preliminary pages, two memo pages, and the three model-specific wiring diagrams.

Engine Overhaul, Chassis Service, and Electrical Fault Finding

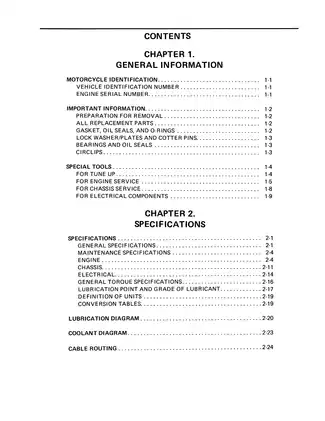

These selected workshop topics outline the repair coverage. Other included subjects include cowling and fuel-tank removal, battery inspection, and headlight adjustment.

• Engine and drivetrain: Step-by-step procedures for engine removal, cylinder-head and valve repair, piston and crankshaft inspection, clutch overhaul, transmission service, and timed reassembly.

• Carburetion: Mikuni BDS37 and BD34 carburetor disassembly, diaphragm and float inspection, fuel-level adjustment, four-carburetor synchronization, and throttle adjustment.

• Cooling system: Radiator and cap testing, water-pump bearing and mechanical-seal replacement, thermostatic-valve inspection, coolant replacement, and leak checks.

• Brakes and hydraulic clutch: Wheel and bearing service, brake-pad replacement, caliper and master-cylinder repair, clutch-release-cylinder inspection, and hydraulic bleeding procedures.

• Suspension and final drive: Front-fork overhaul, steering-bearing service, rear-shock removal and adjustment, swingarm-linkage inspection, and drive-chain and sprocket checks.

• Electrical diagnosis: Digital-ignition, starter-interlock, charging, lighting, signal, display, cooling-fan, and fuel-pump tests, supported by circuit diagrams and troubleshooting charts.

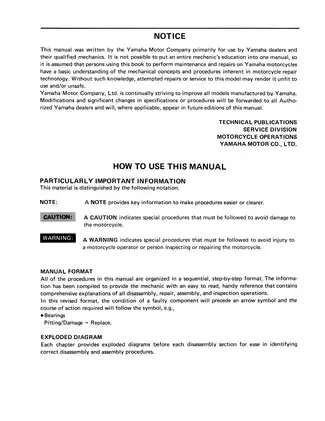

Written primarily for Yamaha dealers and qualified mechanics, these manuals assume an understanding of motorcycle repair and access to the specified workshop tools.

Engine Repair and Model-Specific Revisions

The overhaul chapter identifies major components that can be serviced with the engine still in the chassis. Internal repair coverage extends to valve guides and seats, lifters and adjusting pads, piston rings, connecting rods, color-coded bearing selection, oil jets, the relief valve, shift components, crankcase sealing, and starter drives.

The RT pages add oil-cooler removal and installation, revised oil-delivery hoses and strainer details, oil-pump inspection, starter-clutch checks, and model-specific transmission and engine assembly views. The RU supplement adds revised cam-chain and carburetor identification, emissions-maintenance information, and valve-lifter selection by camshaft-case color and bore classification.

Engine tool references include the YU-33223 compression gauge, YM-91042 universal clutch holder, and YM-04019 valve-spring compressor with YM-04108 attachment.

The camshaft-installation cautions explain how independently rotating the crankshaft or camshafts can damage the pistons and valves.

Fuel Delivery and Cooling Checks

Carburetor sections distinguish the FZR1000T and California TC settings and cover piston valves, diaphragms, floats, needle valves, jets, and reassembly. They also explain which components can be inspected without separating the carburetors and caution against casually changing factory pilot-screw settings.

Periodic service includes ignition-timing and compression checks, engine-oil and filter replacement, intake and fuel-line inspection, and crankcase-ventilation-hose inspection. The TC receives separate air-induction-system inspection coverage.

Cooling procedures include pressure testing with the YU-24460-01 radiator-cap tester, water-pump seal installation, thermostat testing, and checks after filling.

Suspension, Brake Hardware, and Workshop Diagrams

The RT suspension material covers fork preload, damping and height adjustment, rear-shock preload and rebound adjustment, and a factory front/rear setup chart. Fork service identifies the YM-33298 damper-rod holder; its handling notes explain how excessive force or bottoming the tubes can damage seals, bushings, and the oil-lock piece.

Brake illustrations show pad-spring and shim orientation, including the RU rear-caliper arrangement. The chassis material also covers steering bearings, the link-type swingarm, chain and sprockets, and meter-assembly removal. Rear-shock coverage concerns removal, inspection, adjustment, and handling of the sealed nitrogen-charged unit.

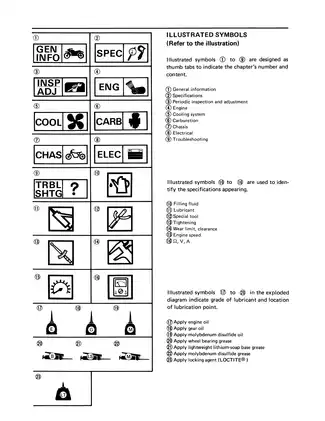

Illustrated references include the Lubrication Diagram, Coolant Diagram, Cable Routing, carburetor Section View, and model-specific Wiring Diagrams, alongside exploded assembly views and component torque tables.

Circuit Tests and Mechanical Troubleshooting

Electrical test sequences cover no-spark faults, starter operation and safety interlocks, charging failure, lamps and signals, temperature indication, fan operation, and fuel-pump relay timing. The digital-ignition section explains its connection to fuel-pump control; tool references include the YU-33263 digital volt-ohm meter.

Mechanical troubleshooting charts address hard starting, poor running, shifting and clutch faults, overheating, poor braking, fork leakage, and unstable handling. These charts connect symptoms to the inspection and adjustment procedures elsewhere in the manual.

Fuel-system work, hot pressurized coolant, hydraulic brakes and clutch components, engine timing, and gas-charged suspension require appropriate mechanical experience and safe workshop practices.

Selected Cooling-System Capacities and Test Values

Coolant capacity: FZR1000T/TC specifications list a total capacity of 2.3 L, including all coolant routes.

Component checks: The base manual specifies a radiator-cap opening pressure of 74–103 kPa. Its thermostatic-valve inspection checks whether opening begins at 80–84°C.
