2000 Yamaha PW80M1 Y-Zinger Owner's Service Manual

Wiring diagrams, specifications, and repair sequences for the PW80M1 Y-Zinger. Includes part numbers like LIT-11626-13-26 for engine, chassis, and electrical systems.

4.6starstarstarstarstar_half(5)
visibility Preview Available

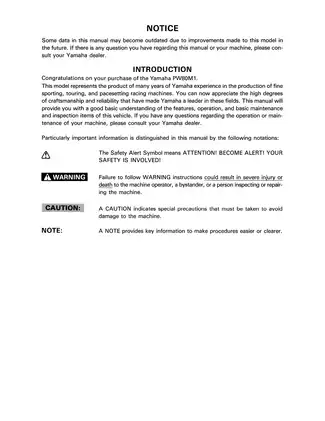

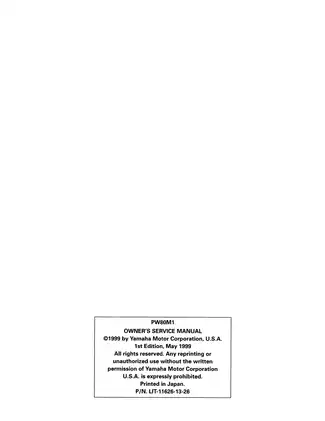

Yamaha 2000 Yamaha PW80M1 Y-Zinger Owner's Service Manual manual page preview - page 1 of

Sample pages from the 2000 Yamaha PW80M1 Y-Zinger Owner's Service Manual manual

Yamaha 2000 Yamaha PW80M1 Y-Zinger Owner's Service Manual manual preview page 1 - thumbnail
info_outline Click thumbnails to preview different pages
$15.95 (incl. VAT) Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Yamaha Models Covered & Key Technical Specifications

Models: Yamaha PW80M1
Sub-models / Variants: Y-Zinger
Trade Names: Y-Zinger
Build Years: 2000
Serial Numbers: 3RV-28199-19
Technical Data:

  • Engine displacement: 79 cc
  • Engine type: Air-cooled 2-stroke, gasoline, torque induction
  • Transmission: 3-speed constant mesh
  • Fuel capacity: 4.9 L (1.29 US gal)
  • Engine oil capacity: 0.95 L (1.00 US qt)
  • Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)
  • Spark plug torque: 25 Nm (18 ft-lb)
  • Drive chain slack: 15–20 mm (0.6–0.8 in)
  • Front/Rear tire pressure: 100 kPa (15 psi)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27347 / Amanda Thomas
File Size:
8.09 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Minibike
Last updated / verified
Apr 2, 2026

Yamaha Manual Features & Content Preview

Yamaha PW80M1 2000 Owner's Service Manual

  • Covers the 2000 Yamaha PW80M1 Y-Zinger minibike with its air-cooled 2-stroke torque induction engine
  • Official Yamaha publication P/N LIT-11626-13-26, first edition May 1999
  • Contains 26 exploded-view component diagrams and comprehensive chassis, engine, and electrical specifications
  • Stored against your account so you can retrieve it after a hard-drive loss
  • Full-text search finds any part number in seconds
  • Suitable for printing individual sections for shop-floor use
  • This first edition serves as the foundational reference for the 2000 PW80M1 model build and maintenance program

Documentation Overview

This 2000 Yamaha PW80M1 owner's service manual functions as an authoritative guide for routine maintenance, minor repairs, and machine adjustments. The document structure begins with detailed machine identification procedures, control function descriptions, and essential pre-operation inspection steps for the Y-Zinger. Separate chapters provide dedicated focus on periodic maintenance, detailing lubrication schedules and special tool applications. The manual also includes specific guidance on engine top-end inspections, clutch housing service, and chassis component maintenance, while clarifying noise regulation compliance and storage protocols.

Technical Depth and Specifications

Detailed specifications are provided throughout, offering data such as torque values, fluid capacities, and electrical reference points. Cylinder head bolt torque values are documented at 14 Nm (10 ft-lb) within the engine assembly data. The ignition system data includes a primary coil resistance range of 0.26–0.36 ohms at 20°C (68°F). Transmission oil capacity for the 2000 PW80M1 is documented at 0.75 liters (0.79 US qt) for a total fill. Readers may consult the how factory workshop documentation is structured for additional insight into factory-level maintenance procedures. This 70-page official Yamaha OEM service publication provides complete technical, chassis, and electrical specifications for the 2000 Yamaha PW80M1 Y-Zinger, facilitating precise maintenance for the 3RV-series minibike.

Manual FAQ, Purchase & Download Details

Is the 2000 Yamaha PW80M1 manual identified by publication number LIT-11626-13-26? keyboard_arrow_down

Cover page confirms this document is the first edition Owner's Service Manual for the PW80M1, specifically labeled with publication number LIT-11626-13-26.

Can I find technical information regarding transmission oil levels or drive chain slack in the manual? keyboard_arrow_down

Manual includes dedicated sections containing specification tables for fluid capacities and drive chain tension references. These tables list standard operational values to assist with your pre-operation checks.

Does this manual cover the PW80M1 model specifically? keyboard_arrow_down

Document is explicitly titled as the Owner's Service Manual for the 2000 Yamaha PW80M1 model. It includes information regarding control functions, identification numbers, and general maintenance schedules unique to this specific minibike production year. All technical data provided throughout the chapters aligns with this model designation.

Are wiring diagrams included in the miscellaneous sections of the document? keyboard_arrow_down

Table of contents confirms that the miscellaneous chapter contains electrical components and wiring diagrams for the machine.

Which engine components are depicted in the exploded views and illustrations throughout the service chapters? keyboard_arrow_down

Service manual includes exploded views and mechanical illustrations for the engine and chassis assemblies. These graphics show component breakdowns and help visualize the location of individual parts throughout the machine.
