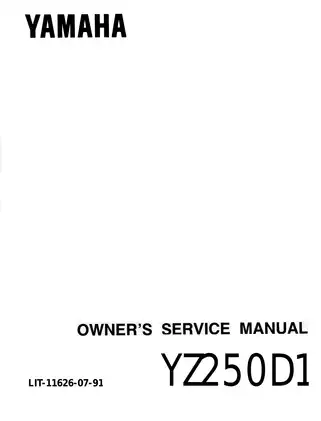

Yamaha YZ250D1 1992 Owner’s Service Manual (P/N LIT-11626-07-91)

Yamaha’s YZ250D1 Owner’s Service Manual (P/N LIT-11626-07-91) is the first edition, published in June 1991 for the 1992 YZ250. The identification tables distinguish the U.S. YZ250D1, the European YZ250LC, and the YZ250(D) designation for other markets. They also identify the applicable variants for Canada, Australia, and New Zealand.

PDF Bookmarks, Text Search, and Diagram Detail

Navigation and legibility: Embedded bookmarks open the internal index, chapters, and service sections. Text search is limited to the cover. The small wire color codes are legible when zoomed in. Most of the radiator and water pump job chart on PDF p. 160 is unreadable.

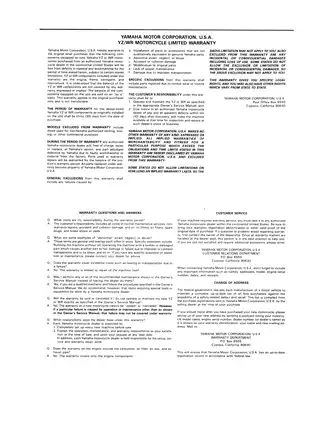

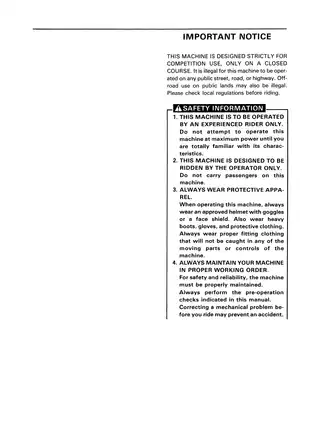

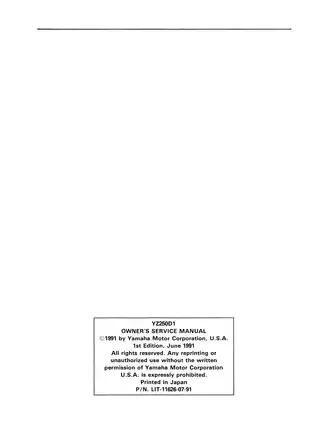

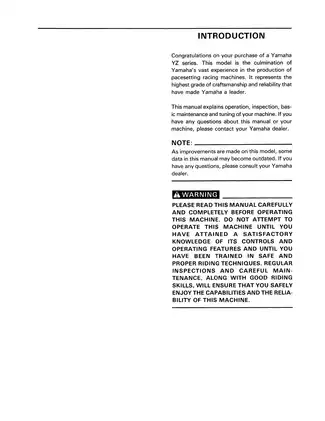

The ZIP download contains one printable PDF. Its 266 pages include the cover, publication and warranty pages, introductory material, index, and table of contents.

Engine, Chassis, and Race Service

These are selected topics from the manual, which also covers engine break-in and silencer packing replacement.

• Race maintenance: Service intervals, coolant and transmission oil service, drive chain adjustment, and separate pressure tests for the radiator cap and cooling system.
• Engine repair: Carburetor and reed-valve service, cylinder head and piston work, YPVS power-valve and governor service, and radiator and water pump repair.
• Crankcase and transmission: Engine removal, crankcase separation, crankshaft installation, clutch and primary-drive service, and inspection of the kick axle, shift shaft, gears, shift cam, and shift forks.
• Chassis and brakes: Front and rear wheel bearing service, brake caliper and master cylinder overhaul, brake bleeding, inverted fork disassembly and seal service, and steering-head repair.
• Ignition diagnosis: CDI magneto removal and timing, spark-gap and coil resistance tests, and an ignition wiring diagram with a wire color legend.
• Race tuning: Carburetor circuit tuning, spark plug reading, secondary gearing selection, fork and shock setup, handlebar position options, and a setup record.

Yamaha introduces operation and routine checks for owners of this closed-course competition model and provides mechanics with a workshop reference for disassembly, inspection, repair, and reassembly.

Regional Settings and Special Tools

The European specifications give separate carburetor settings, final-drive gearing, and front-fork oil settings. Yamaha specifies unleaded fuel for Australia and lists a different standard spark plug for Canada and South Africa.

Exploded illustrations pair with job charts, removal notes, and assembly checks. Component-specific torque tables, wear limits, clearances, and fluid capacities support inspection and reassembly. The special-tool section helps you identify what to have on hand before taking an assembly apart. It lists the YU-01135/90890-01135 crankcase separator, YU-90050 and YU-90062 crankshaft installation tools, YM-01189/90890-01189 rotor puller, YM-38853/90890-01442 fork seal driver, and YU-03112/90890-03112 pocket tester.

Engine and Suspension Repair Limits

Yamaha shows how to match the piston and cylinder size marks and cautions against reboring the cylinder. Leaving the temporary YPVS locating pin in place can interfere with valve operation and reduce high-rpm power. The crankcase section warns against forcing the case halves apart or driving out the crankshaft with a hammer.

The chassis section includes fork base-valve inspection and swingarm linkage checks, including side-clearance shimming. Rear shock coverage includes removal, spring service, external inspection, adjustment, and installation. Yamaha prohibits opening the nitrogen-charged cylinder or reservoir and reserves disposal for dealers.

No-Spark Diagnosis and Track Setup

The no-spark flowchart helps trace a fault through the connections, engine stop button, ignition coil, and magneto before considering the CDI unit. The specifications table and magneto test procedure give different upper resistance limits for charging coil 1. Separate cable-routing diagrams show the paths for the cables, hoses, and electrical leads.

The suspension troubleshooting charts connect symptoms such as fork dive and rear-end kick with possible setup causes. A front-to-rear balance check and a sample setup record help riders evaluate and document changes for a particular track.

Sample Piston and Fork Measurements

For top-end inspection, Yamaha gives a standard piston-to-cylinder clearance of 0.045–0.050 mm and a service limit of 0.1 mm.

Standard front-fork oil level is 105 mm for Europe and 110 mm for other markets. The reference point is the top of the outer tube, with the inner tube and damper rod fully compressed, the spring removed, and the spring guide installed.
