Yamaha YZ80S 1986 Owner's Service Manual (P/N LIT-11626-05-14)
134 Pages • ZIP Download: 1 Printable PDF (English)
Yamaha Models Covered & Key Technical Specifications
Model & Model Code: YZ80 (YZ80S; I.B.M. No. 1LR)
Model Year: 1986
Serial Numbers: Engine starting number 1LR-000101
-
Engine: Liquid-cooled 2-stroke (engine model 1LR)
-
Transmission: Constant-mesh 6-speed, return type (YZ80S)
-
Cylinder head nut torque: 25 Nm (18 ft-lb)
-
Magneto nut torque: 35 Nm (25 ft-lb)
-
Piston clearance: 0.060–0.065 mm (0.0024–0.0026 in)
-
Valve opening pressure: 109.7 +/- 15 kPa (16 psi)
-
Cylinder bore standard: 48.00 mm (1.890 in)
-
Spark plug: Champion N-84
Yamaha Manual Features & Selected Content Preview
Yamaha’s OEM Owner’s Service Manual for the 1986 YZ80S, P/N LIT-11626-05-14, covers operation, scheduled maintenance, troubleshooting, and repair.
PDF Access, Bookmarks, and Page Count

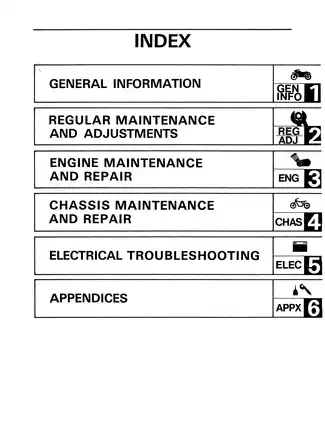

Text search and diagram detail: PDF text search is not available. Embedded bookmarks provide chapter and section access, although “Back to Index” is inactive and “How to use this Manual” opens the illustrated-symbols page. Small wire-color codes and component labels in the ignition diagram are legible when enlarged.
The ZIP download contains one printable, English-language, 134-page PDF. That total includes three preliminary pages, one largely blank chapter-opening page, and the final warranty-information page.
Engine Overhaul, Chassis Service, and Ignition Diagnosis
The following selected highlights outline the repair coverage rather than reproduce the full contents. Other topics include pre-operation checks, break-in guidance, and storage preparation.
-
Engine and bottom-end repair: Step-by-step procedures cover top-end service, clutch and kick-starter work, engine removal, crankcase separation, crankshaft installation, and transmission inspection.
-
Fuel and induction: Mikuni VM26 carburetor disassembly, main-jet replacement, float inspection and adjustment, Yamaha Energy Induction System checks, and reed-valve service.
-
Cooling system: Coolant replacement, water-pump inspection and reassembly, radiator removal, hose checks, radiator-cap testing, and cooling-system pressure testing.
-
Wheels and brakes: Wheel removal and installation, rear drum-brake inspection, front pad replacement, caliper and master-cylinder service, disc inspection, and hydraulic bleeding.
-
Suspension and steering: Fork-oil service, fork disassembly and seal replacement, steering-head service, swingarm and linkage inspection, and Monocross “De Carbon” shock adjustment.
-
Diagnostics and reference data: CDI wiring diagram, ignition fault-isolation chart, cable-routing views, symptom tables, torque tables, capacities, clearances, wear limits, and electrical test specifications.
Because the factory procedures are concise and rely on measuring equipment and model-specific service tools, this manual is suited to mechanics and experienced owners who already understand basic motorcycle repair practice.
Engine Maintenance and Bottom-End Repair
Top-end coverage includes carbon removal, cylinder-head warpage checks, bore measurement, piston and ring inspection, and reassembly. Related sections address exhaust maintenance, the wet multi-disc clutch, kick starter, external shift mechanism, and CDI magneto removal and installation.
For bottom-end work, the manual explains bearing and oil-seal inspection, gear and shaft checks, shift-fork orientation, and crankcase assembly. Transmission and crankshaft service require engine removal. Crankshaft measurements are included, but an out-of-tolerance crankshaft is referred to an authorized Yamaha dealer for repair.
Assembly notes identify the piston-crown arrow orientation and the lower-corner cuts in the reed and stopper plates. Yamaha warns that uneven tightening can warp the reed-valve plates.
Carburetor, Induction, and Cooling
The Mikuni VM26, identified by carburetor mark 1LR00, has standard jetting data and a tuning-and-repair-parts table. Inspection covers the needle valve and seat, throttle slide, jet needle, float, and seals.
The Yamaha Energy Induction System (Y.E.I.S.) section addresses air-chamber and hose condition; reed-valve coverage includes sealing, stopper height, and bending checks. Detailed carburetor tuning is assigned to Yamaha’s separate Race Preparation and Tuning Manual, which is not included.
Water-pump instructions identify impeller, driven-gear, and seal inspection points, including seal orientation and seal-lip protection during assembly.
Brakes, Forks, and Rear Suspension
Front brake coverage extends to piston and seal inspection, master-cylinder components, and hose condition. Rear brake coverage addresses shoes, drum condition, and camshaft wear. Wheel-bearing inspection is included, with bearing replacement referred to a Yamaha dealer.
The fork chapter adds damper-rod inspection, slide-metal removal, and reassembly details. Yamaha warns that bottoming the inner fork tube during slide-metal removal can damage the oil-lock piece.
The Monocross “De Carbon” section provides spring choices, preload and rebound ranges, nitrogen-pressure specifications, and shock removal and installation. It does not describe an internal shock rebuild. Detailed fork and shock tuning is referred to the separate racing manual; shock disposal is designated for Yamaha dealers only.
The handling cautions address trapped fork pressure and the shock’s high-pressure nitrogen reservoir. Brake work also carries specific warnings about fluid contamination and incomplete bleeding.
Electrical Fault Tracing and Illustrated References
The ignition flowchart links engine-stop-switch, spark-plug, magneto charge- and pickup-coil, connector, ignition-coil, and CDI-unit checks. It helps narrow a weak- or no-spark complaint to the relevant circuit or component.
Appendix tables address hard starting, poor high-speed performance, overheating, coolant loss, transmission and shifter faults, clutch trouble, and chassis problems.
Illustrated references include the CDI ignition wiring diagram, no-spark flowchart, ignition-advance curve, transmission-and-shifter exploded view, front-fork exploded view, and cable-routing diagrams. Routing views cover the throttle and clutch cables, front brake hose, Y.E.I.S. hose, rear-suspension sub-tank hose, and CDI leads.
Named Yamaha tools include clutch holder YM-91042, crankcase separator YU-01135, crank installer YU-90050 with adapter YM-90063, magneto puller YM-01189, pocket tester YU-03112, fork damper tools YM-01326/YM-33256, and fork-seal driver set YM-33963/YM-01368.
A Preview of Carburetor and Clutch Inspection Data
The VM26 float-height specification is 21.0 ± 1.0 mm. Its measurement notes distinguish the float arm resting on the needle valve from compressing it, an important condition when interpreting the setting.
Clutch reference data distinguish standard dimensions from replacement limits: friction plates are listed at 3.0 mm thick, with a 2.7 mm wear limit. These accompany the component-inspection procedures.
