Yamaha YZF600RJ Thundercat Service Manual, 1996–2004 (P/N LIT-11616-10-55)

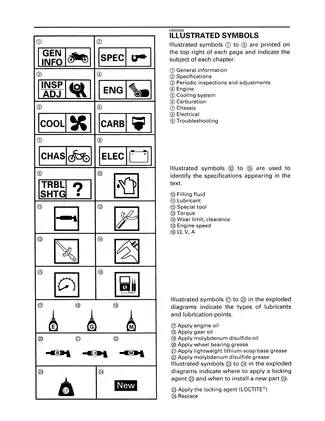

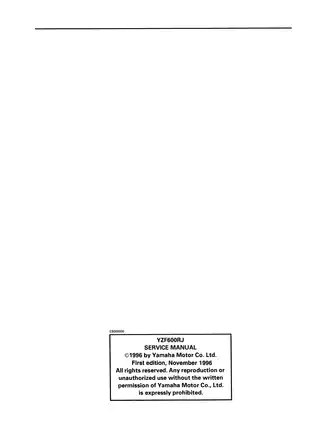

Yamaha’s factory service manual covers the YZF600RJ, model code 5AH1. This is the first edition, November 1996, P/N LIT-11616-10-55, with additional Yamaha cover identifier 5AH-28197-10. It is a single service publication rather than a multi-year supplement set.

PDF Bookmarks, Diagram Detail, and File Contents

Search and navigation: PDF text search is unavailable. Chapter and subsection bookmarks are included, but the external main-index shortcut requires a separate file, and the wiring-diagram bookmark opens the cover. The complete wiring diagram is on PDF p. 372. Small circuit labels require zooming; lettering in some reduced chapter diagrams remains coarse when enlarged.

The ZIP download contains one printable English PDF with 373 pages: 365 chapter pages, six opening pages covering the front cover and introductory/reference material, one wide-format wiring-diagram page, and one rear cover. These pages are all included in the total.

Engine Overhaul, Carburetor Setup, and Electrical Fault Tracing

The following highlights are a selection of the contents, rather than a complete table of contents. Other topics include maintenance-free battery charging checks and headlight adjustment.

• Engine and transmission: Engine removal, internal disassembly, component inspection, bearing selection, clutch service, valve work, cam timing, and final assembly checks.

• Induction and cooling: Keihin carburetor overhaul, synchronization, fuel-level setting, TPS testing and adjustment, radiator pressure testing, thermostat inspection, and water-pump and oil-cooler service.

• Brakes and chassis: Wheel removal and static balancing, hydraulic brake overhaul and bleeding, fork disassembly and seal replacement, steering-head service, swingarm and linkage inspection, and chain and sprocket replacement.

• Electrical diagnosis: Circuit diagrams and test sequences for ignition, starting, charging, lighting, signals, cooling-fan control, and fuel-pump operation, plus tachometer-based self-diagnosis.

• Factory reference data: Component-specific torque tables, capacities, wear limits, clearance and pressure-test specifications, lubrication charts, cable-routing views, special-tool numbers, and exploded assembly views.

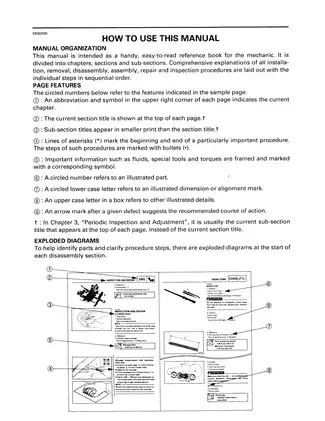

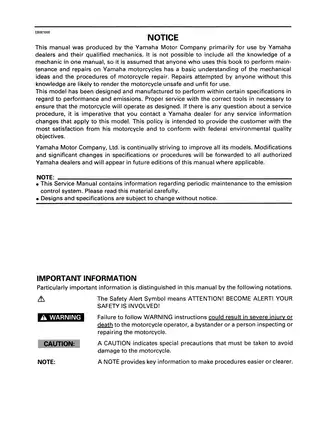

Yamaha states that the manual was produced primarily for its dealers and qualified mechanics; it assumes basic motorcycle repair knowledge and access to the proper tools.

Periodic Service and the Air-Intake System

Periodic service is split between an emission-control schedule and a general maintenance/lubrication schedule, followed by system-specific inspection and adjustment procedures. The emission-control schedule separately identifies the California-only evaporative-control system.

The air-intake explanation connects the pressurized ducts, surge tanks, carburetor float-chamber venting, and condensate collector. Related maintenance procedures address air-filter service, surge-tank cleaning, and the carburetor air-vent drain hose.

Internal Engine Repair and Valve Timing

Step-by-step procedures cover the cylinder head, camshafts, cylinders and pistons, crankshaft, and connecting rods. Separate sections address the transmission and shift mechanism, starter clutch, AC magneto, oil pump, and lubrication system.

Inspection and parts selection: Wear limits, runout checks, Plastigauge oil-clearance measurements, and color-coded main-journal and crankpin bearing selection support decisions about component reuse and replacement. Valve-clearance adjustment is linked to pad-selection charts and final timing checks.

The camshaft section warns that incorrect crankshaft or camshaft movement during installation can damage pistons and valves. It also warns against interchanging select-fit bearings or matched connecting rods, which can upset oil clearance and damage the engine.

Carburetors, Cooling, and Lubrication

The Keihin CVKD36 carburetor section explains rack separation, cleaning, inspection, reassembly, and TPS resistance and position checks. The covered powertrain uses a forward-inclined engine, wet multi-disc clutch, and chain final drive.

Cooling-system inspection includes the radiator cap, fan motor, thermostat, hoses, and leak testing. Water-pump inspection identifies conditions requiring replacement of the housing assembly. Oil-pressure checks and oil-cooler installation include the associated test equipment and sealing requirements.

Brake Hydraulics, Forks, and Rear Suspension

Brake repair covers pads and shims, calipers, master cylinders, seals and cups, hose routing, and final hydraulic bleeding. Wheel service includes bearings and the speedometer drive.

Fork procedures extend to damper-rod removal, bushing and tube inspection, seal installation, oil-level setup, and adjuster checks. Steering-head bearing service includes a separate ring-nut tightening sequence.

The dual front discs and link-type rear suspension have dedicated service sections. Rear-shock coverage is limited to removal, inspection, installation, handling, and disposal rather than an internal rebuild. The nitrogen-charged chamber carries specific warnings. Work involving hot coolant, fuel, brake hydraulics, or engine removal requires the support equipment and safety practices specified in the manual.

Electrical Test Charts, Diagrams, and Tools

Branch-by-branch test charts help distinguish switch, relay, wiring, and component faults during no-spark, no-crank, and charging diagnosis. Further checks address lighting, signals, fan control, and fuel-pump operation. Tachometer-displayed self-diagnosis covers TPS and fuel-level circuit faults.

Drawings include cooling-system flow diagrams, engine lubrication diagrams, cable-routing views, the starting-circuit operation diagram, the fuel-pump circuit diagram, and the complete YZF600RJ wiring diagram.

Special tools: The list identifies vacuum gauge YU-08030 / 90890-03094, oil-pressure gauge 90890-03153 with adapter 90890-03139, and radiator-cap tester YU-24460-01 / 90890-01325. Fork-seal tools include driver weight YM-33963 / 90890-01367 and attachment YM-33968 / 90890-01381; ignition testing specifies checker 90890-06754.

Examples of Valve-Clearance and Fuel-Level Specifications

Cold valve clearances are 0.11–0.20 mm for the intake valves and 0.21–0.30 mm for the exhaust valves. The adjustment section pairs these ranges with pad-selection charts.

The carburetor fuel-level specification is 11.5–12.5 mm below the float-chamber line. The carburetion chapter illustrates the measurement reference and describes gauge-based inspection and float adjustment.
