Jeep Liberty KJ 2005 Service & Diagnostic Manual Set (P/N 81-370-05060)

The main service manual carries the mechanical repair procedures, while the separate diagnostic books provide the code-by-code test paths used with the DRBIII scan tool. That combination matters on the KJ because many faults cross module boundaries.

PDF Search, Navigation, and Diagram Detail

Text search and wiring detail: The six main manuals contain searchable text and internal bookmarks, but many schematic labels are not text-searchable. Some older links between files have incorrect targets; the PDFs can be opened individually. The separate cover/foreword has no bookmarks, and the menu provides file links rather than chapter navigation. Small pin numbers and wire labels in dense schematics require zooming.

The ZIP download contains eight printable English PDFs totaling 4,208 pages, including the separate two-page cover/foreword and one-page publication menu listed above.

Engine, Driveline, and Electronic System Coverage

Selected coverage is outlined below rather than a complete contents list. Other included work covers wheel alignment and hub/bearing replacement.

• Engine repair: Gasoline and common-rail diesel engine diagnosis, cylinder-head work, internal inspection, and step-by-step timing-belt or timing-chain service.

• Driveline repair: NSG370 manual and 42RLE/545RFE automatic transmission removal, disassembly, inspection, and assembly, plus clutch and transfer-case service.

• Powertrain diagnostics: NGC gasoline controls, diesel ECM and SKIS faults, fuel and ignition tests, transmission diagnostics, and post-repair verification.

• Body electronics: BCM, restraint and occupant-classification diagnostics, PCI communication faults, lighting, locks, audio, wipers, and tire-pressure monitoring.

• Brakes and steering: Base and ABS brake bleeding, Teves Mark 25e fault isolation, hydraulic-control diagnosis, and power-steering fill and bleed procedures.

• Body and climate systems: Body-component removal and installation, heater/A/C performance diagnosis, and R-134a refrigerant recovery, evacuation, and charging.

Written for professional automotive technicians involved in daily repair operations, these manuals assume familiarity with workshop procedures and access to the specified diagnostic equipment.

Mechanical Repair and Maintenance

Separate maintenance schedules distinguish gasoline, diesel, and export applications. Engine coverage includes the 2.4L and 3.7L gasoline engines and the 2.8L common-rail diesel, with compression and combustion-leakage testing alongside mechanical repair procedures.

Cooling-system work includes thermostat diagnosis, water-pump replacement, and filling procedures. Diesel sections add turbocharger service and charge-air system leak testing.

Axles and transfer cases: The service manual covers the NV231, NV241 Gen II, and NV242 transfer cases, the 186FIA (Model 30) front axle, and the 8 1/4 rear axle. Differential procedures include ring-and-pinion setup, bearing preload, backlash adjustment, and Trac-Lok lubrication requirements.

The axle sections warn against loosening a pinion nut to reduce rotating torque: incorrect preload or a damaged collapsible spacer can compromise the pinion-bearing setup.

Gasoline and Diesel Fault Isolation

NGC diagnostics address OBDII monitor logic, fuel and ignition control, no-start complaints, emissions faults, 42RLE transmission control, and transfer-case faults. The gasoline controller combines powertrain and transmission control functions, making module communication part of the diagnostic process.

The diesel book covers fuel-rail pressure, boost and air metering, glow-plug control, injector classification programming, cylinder compression, and injector quantity tests. Front Control Module gateway diagnosis includes CAN C, J1850, and PCI communication faults.

Tool references identify the DRBIII, Diagnostic Pinout Box 8815, Terminal Removal Tool 3638, Evaporative Emissions Leak Detector 8404, fuel-pressure equipment, and transmission simulator/adapter. NGC terminal-service instructions specify the removal pick and pinout box because incorrect probing can damage PCM terminals and harness connectors.

Automatic Transmission Tests and Relearns

The diesel automatic diagnostic volume covers line-pressure control, pressure switches, input/output speed sensors, solenoids, gear-ratio faults, limp-in strategy, EATX event data, and clutch-volume indexes.

Quick Learn coverage identifies when adaptation is required after a new service TCM, internal transmission repair or rebuild, or torque-converter replacement. The procedures distinguish the required temperature and operating conditions from ordinary fault diagnosis.

Body Networks, Restraints, and ABS

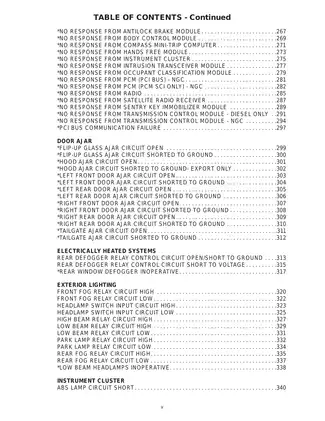

The Body volume explains communication among the BCM, Occupant Restraint Controller, Occupant Classification Module, Mechanical Instrument Cluster, PCM, and SKREEM. Test paths distinguish no-response faults, shorts to ground or voltage, loopback faults, and invalid messages, helping trace a shared network problem before replacing an individual module.

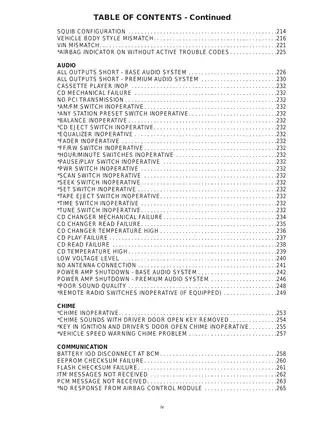

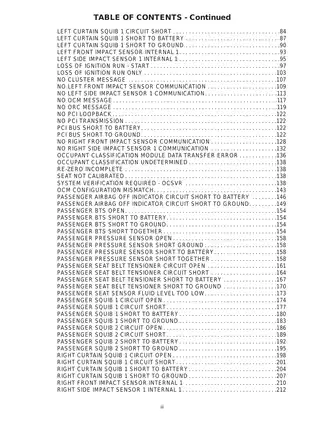

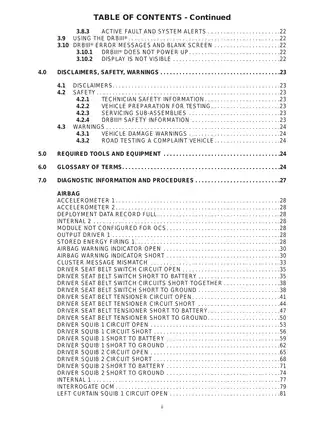

Restraint coverage includes staged deployment, clockspring and squib circuits, seat-belt tensioners, front and side impact sensors, and the OCS. Other sections address EVIC, audio, hands-free phone, interior and exterior lighting, power locks/RKE, VTSS, windshield wipers, and TPMS training and fault diagnosis.

The Teves Mark 25e material covers the 47-way Anti-Lock Brake Module, Hydraulic Control Unit, wheel-speed sensors, Electronic Variable Brake Proportioning, optional traction control, freeze-frame data, PCI faults, and verification tests.

SRS/OCS service requires battery isolation and the specified capacitor-discharge period. The manuals also identify dropped airbag-control or occupant-classification modules as replacement items because sensing or calibration may be compromised.

Wiring Diagrams and Connector References

Named schematics include Inter-Module and DRB Communication, Teves Mark 25e Anti-Lock Brake Module, and Transmission Control System. Engine diagrams distinguish 2.4L NGC, 3.7L NGC, and 2005 KJ 2.8L Turbo Diesel circuits.

Connector references include ORC C1 24-way and C2 32-way connectors, BCM 26-way and 22-way connectors, cluster pinouts, the data-link connector, and gasoline/diesel powertrain interfaces. Component-location views connect the diagnostic charts with the corresponding hardware.

Oil and Transmission Fill Examples

The engine-oil table lists 5.0 qt with filter for both gasoline engines and 6.4 qt with filter for the 2.8L diesel.

Automatic transmission figures distinguish service fill from overhaul fill: 8.0 pt versus 17.6 pt for the 42RLE, and 10.0 pt versus 28.0 pt for the 545RFE. The accompanying notes explain that dry-fill requirements vary with cooler and line configuration.
