1997 Jeep Wrangler TJ Sport, SE & Sahara Factory Service & Repair Manual

This factory service manual covers the 1997 Jeep Wrangler TJ Sport, SE, and Sahara, including the 2.5L and 4.0L engines and service information for left- and right-hand-drive configurations.

• Engine repair: Engine removal and installation, cylinder-head and valve service, piston and bearing inspection, timing-chain replacement, and lubrication diagnosis.

• Transmission and transfer case: AX5 and AX15 teardown, 30RH/32RH hydraulic testing and overhaul, and NV231 rebuilding and shift-linkage adjustment.

• Axles and chassis: Differential bearing preload, ring-gear backlash, Trac-Lok service, suspension component replacement, and manual and power steering gear repair.

• Brake service: Base-brake troubleshooting, caliper and wheel-cylinder service, rotor inspection, ABS component replacement, and scan-tool-assisted bleeding.

• Fuel and ignition: Fuel-pressure testing, injector and sensor checks, PCM input/output descriptions, ignition diagnosis, and emission-control trouble-code information.

• Electrical troubleshooting: System wiring diagrams, starting and charging tests, connector pin-outs, ground locations, and splice references.

The teardown procedures, measurement requirements, and DRB scan-tool references make this manual suited to experienced mechanics with appropriate shop equipment.

Maintenance, Engine Repair, and Cooling

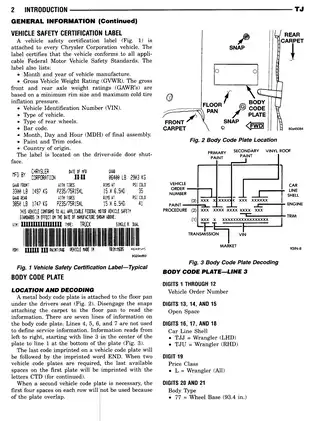

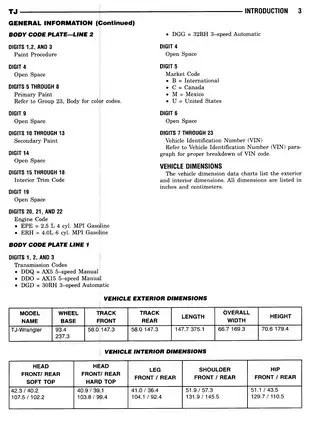

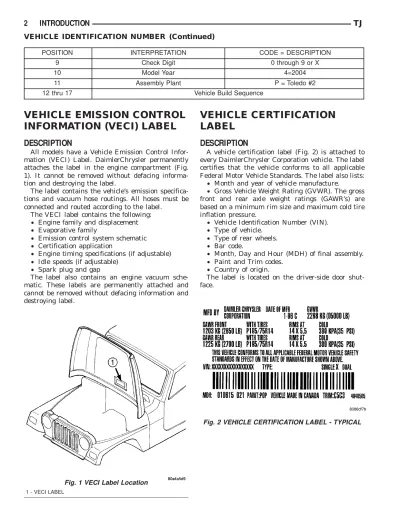

The opening material covers VIN decoding, vehicle dimensions, metric conversions, fastener identification, and general torque references. Maintenance Schedules A and B distinguish normal driving from severe conditions such as dusty roads, off-road use, and trailer towing.

Engine chapters detail piston fitting, crankshaft-bearing clearance checks, rear-main-seal replacement, and cylinder-head tightening sequences. Exhaust-system and intake-manifold removal procedures are covered separately.

Cooling coverage includes coolant-flow diagrams, pressure and combustion-leak testing, thermostat diagnosis, and water-pump replacement.

Axle Setup, Transmission Overhaul, and Clutch Service

Axle coverage distinguishes the 181 FBI front axle and 194 RBI and 216 RBI rear axles, including standard and Trac-Lok differentials. Pinion-depth measurements, shim-selection procedures, and gear-tooth contact patterns help you evaluate gear setup during differential repair.

Manual-transmission sections document synchronizer wear, shaft inspection, and assembly clearances. The automatic-transmission chapter distinguishes 30RH and 32RH rear-band designs and supplies clutch-and-band application charts, hydraulic flow diagrams for Park/Neutral, and dry-fill capacity references. Pressure-test procedures identify gauges C-3292 and C-3293-SP.

The automatic-transmission removal section warns that leaving the torque converter attached to the driveplate can damage the driveplate, pump bushing, or oil seal. NV231 coverage extends to the drive chain, planetary assembly, range hub, and shift forks.

Clutch service limits: The hydraulic master cylinder, slave cylinder, and connecting line are serviced as a sealed assembly. The manual also explains how improper clutch-cover bolt tightening can distort the cover, causing chatter and rapid wear.

Brakes, Steering, and Circuit Diagnosis

Suspension sections cover alignment measurements, caster and toe adjustment, and front and rear link/coil components. Front camber is fixed. Steering coverage includes pump-pressure testing and manual and power steering gear adjustments.

Wiring references: Fuel/Ignition Systems and All-Wheel Anti-Lock Brakes diagrams are supported by connector pin-outs and splice locations. These references help trace a sensor circuit between its connector and the control module.

Diagnostic scope: Detailed ABS scan-tool tests refer to the separate Chassis Diagnostic Manual. Advanced powertrain and airbag fault diagnosis also refers to separate Powertrain and Body Diagnostic Procedures manuals. Those diagnostic publications are not included in this file.

Cabin Systems, Body Repairs, and Climate Control

Instrument-panel and audio sections provide testing and component-service information. Separate sections address horn and chime/buzzer systems, lamps, wiper and washer systems, electrically heated systems, and passive restraints.

Body and frame coverage includes bumpers, frame measurements, doors, glass, and hard- and soft-top components. Heating and air conditioning sections add heater-A/C vacuum-circuit diagrams, leak testing, compressor service, and refrigerant recovery, evacuation, and charging procedures.

Follow the manual’s lifting and pressurized-system precautions. Airbag trim-cover and horn-switch service is reserved for Chrysler-trained, authorized dealer technicians; A/C repairs are specified for qualified service personnel.

A Few Hub and ABS Sensor Specifications

These examples are a small selection of the chassis inspection and assembly data in the manual. The front hub nut specification is 237 N·m (175 ft-lb), listed with the hub-and-bearing installation information.

Front and rear ABS wheel-speed sensors have a specified resistance of 900–1,300 ohms, although the sensors are not interchangeable. The front sensor air-gap inspection range is 0.40–1.3 mm; the front gap is fixed.

Text Search, Bookmarks, and PDF Contents

Search and diagram detail: Text search is available across the main sections, with OCR errors and some labels omitted from the text layer. Bookmarks cover major systems and subsections, but the ABS subsection link opens the beginning of the brake chapter. Small wiring labels are best read at higher zoom.

The download contains one printable English 1,152-page PDF: 1,121 pages of service information and indexes, one group-tab locator page, 28 blank separator pages, and a two-page comment form. All are already included in the total.
