Jeep Liberty / Cherokee (KJ) 2004 Service Manual (P/N 8137004060)
2,092 Pages • Printable PDF • 68.74 MB • Download
Jeep Models Covered & Key Technical Specifications
Models & Model Codes: Liberty (KJ), Cherokee (KJ)
Sub-models / Variants: Renegade, Sport, Limited
Model Year: 2004
Engine identification (VIN position 8): 2.4L MPI gasoline (1), 3.7L MPI gasoline (K), 2.5L diesel (7)
Manual transmission variants: NV1500 (2.4L), NV3550 (4x2 and 4x4)
Automatic transmission documentation: 42RLE (internal repair), 45RFE (2.8L diesel wiring and connector data), 545RFE (fluid-capacity data)
-
Engine oil capacity (2.4L/3.7L): 4.7L (5.0 qts.)
-
Engine oil capacity (2.5L/2.8L Diesel): 6.0L (6.3 qts.)
-
Fuel tank capacity: 19.5 U.S. Gallons (74 Liters)
-
Cooling system capacity (2.4L): 9.5L (10.0 qts.)
-
Cooling system capacity (3.7L): 13.2L (14.0 qts.)
-
Cooling system capacity (2.5L/2.8L Diesel): 12.5L (13.2 qts.)
-
Automatic transmission service fill (545RFE): 4.73L (10.0 pts)
-
Automatic transmission service fill (42RLE): 3.8L (8.0 pts)
-
Transfer case capacity (NV231): 1.4L (2.95 pts.)
-
Transfer case capacity (NV242): 1.6L (3.4 pts.)
-
Manual transmission dry fill (NV1500): 2.3L (4.8 pts.)
-
Manual transmission dry fill (NV3550 4x4): 1.98L (4.2 pts.)
-
Front axle capacity (Model 30): 1.24L (2.6 pts.)
-
Rear axle capacity (8 1/4): 2.08L (4.4 pts.)

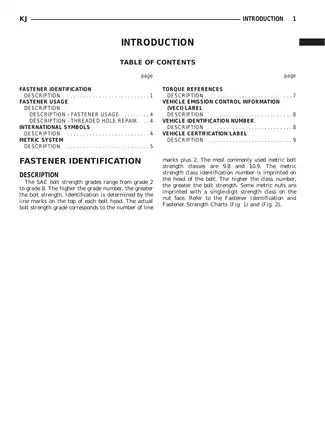

Jeep Manual Features & Selected Content Preview
This 2004 Jeep Liberty / Cherokee (KJ) factory service manual (P/N 8137004060) covers Renegade, Sport, and Limited models, with configuration-specific material for gasoline and diesel, LHD/RHD, and domestic/export applications.
PDF Search, Navigation, and Page Count
Finding procedures and reading diagrams: Procedure text and indexes support PDF text search, but many wiring sheets have no searchable labels. Embedded bookmarks cover service groups and numerous individual procedures. Small wire codes, connector numbers, and pin labels on representative wiring pages are legible when enlarged.
One printable PDF contains 2,092 pages, including one added cover and 2,091 pages of factory service material. The total includes 37 blank divider pages.
Powertrain Overhaul, Chassis Service, and Circuit Diagnosis
The following selected content highlights outline major workshop tasks rather than reproduce the full contents. Other topics include wiper/washer diagnosis and remote-keyless-entry service.
- Gasoline engine repair: Engine removal, internal inspection, cylinder-head and valvetrain repair, lubrication diagnosis, and timing-belt or timing-chain service for the 2.4L and 3.7L engines.
- Transmission overhaul: NV1500 and NV3550 disassembly and assembly, plus 42RLE road testing, hydraulic-pressure testing, clutch-air testing, and internal repair.
- Transfer cases and axles: NV231 and NV242 overhaul, front differential setup, rear axle service, Trac-Lok repair, propeller shafts, and CV half shafts.
- Suspension and steering: Wheel alignment, ride-height checks, hubs, bearings, ball joints, control arms, springs, shocks, and power-steering flow-and-pressure tests.
- Brakes and ABS: Base-brake diagnosis, hydraulic and manual bleeding, pads, calipers, rotors, parking brakes, wheel-speed sensors, and hydraulic control unit service.
- Electrical fault tracing: System wiring diagrams, connector pinouts, location views, starter-circuit diagnosis, charging-system tests, and module programming procedures.
- HVAC and body repair: A/C performance diagnosis, refrigerant service, door actuators, housing disassembly, glass, sunroof, seats, and body-structure reference information.
This material is suited to professional technicians and experienced owners who can follow factory repair procedures and have access to appropriate lifting equipment, pullers, presses, precision gauges, and DRB III-level diagnostics.
Gasoline Engine Repair and Diesel Scope
The gasoline engine chapters provide step-by-step procedures for removal and installation, cylinder-head work, camshaft and valve service, pistons and connecting rods, crankshaft and bearing inspection, oil pumps, and valve timing. Compression and combustion-leakage tests support mechanical diagnosis.
Timing-system cautions: Incorrect crankshaft-sprocket depth on the 2.4L can damage the timing belt and engine; the procedure identifies installer 6792. For the 3.7L, incorrect camshaft-to-crankshaft timing can damage intake valves, while forcing timing-chain wedge 8379 too far can damage the tensioners.
Related cooling, fuel-delivery, PCM-controlled fuel-injection, ignition, exhaust, and emissions sections support system troubleshooting. Domestic and export maintenance schedules distinguish operating conditions.
Diesel coverage is limited: The 2.5L appears in identification, maintenance, clutch, cooling-support, electrical, steering, and HVAC material. Selected electrical and HVAC sections also address the 2.8L. This PDF does not include a full diesel-engine teardown and rebuild chapter.
Transmission and Driveline Repair Depth
The NV1500 chapter applies to the 2.4L engine; NV3550 material distinguishes two- and four-wheel-drive configurations. The 42RLE section extends to bearing adjustment, valve-body and oil-pump service, with hydraulic schematics supporting the test procedures.
RFE scope: The 2.8L diesel 45RFE appears in electrical diagrams and connector data, while 545RFE capacities are listed in the lubrication group. A complete 45RFE/545RFE overhaul chapter is not included.
Separate chapters distinguish the NV231 part-time and NV242 full-time transfer cases and cover seals and shift components. Axle material adds ring-and-pinion setup, bearing preload, tooth-contact checks, axle shafts, and seals.
Chassis Tests and Workshop Equipment
Alignment procedures distinguish camber, caster, and toe adjustments. Suspension service includes control-arm bushings and stabilizers; ball-joint procedures identify press C-4212-F and the relevant 8859 adapters.
Steering chapters cover the rack-and-pinion gear, column, linkage, pump, hoses, and cooler. ABS bleeding includes scan-tool operation, and replacement ABS controllers require programming.

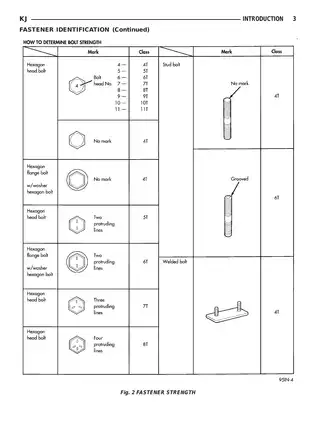

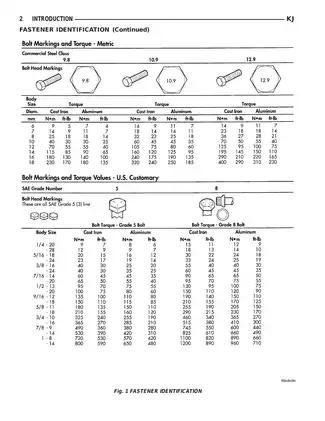

Component-specific torque tables, approved lubricants, fluid data, electrical test specifications, runout and clearance limits, and wear criteria accompany the repair sections.
Wiring Variants and Module Procedures
The 8W section separates gasoline and diesel, LHD and RHD, export and non-export, and Base/Midline/Highline equipment. These distinctions help match the circuit and connector information to the vehicle before fault tracing begins.
Named diagram groups include Power Distribution, Fuel/Ignition System, Transmission Control System, Antilock Brakes, Airbag System, and Connector/Ground/Splice Location. Circuit explanations, short-to-ground and voltage-drop tests, terminal repair, wire splicing, and location indexes support diagnosis beyond the schematic itself.
Module procedures include PCM/SKIM programming, TCM Quick Learn, Sentry Key initialization, and tire-pressure sensor retraining.
Separate diagnostic publications: Detailed DRB III diagnostic routines are referred to the appropriate Powertrain, Body, or Chassis Diagnostic Procedures manuals. Those separate publications are not included in this file.
HVAC Service and Body Reference Material
HVAC chapters distinguish gasoline- and diesel-specific compressor applications and cover refrigerant recovery, evacuation, and charging. Refrigerant-system repairs require qualified service personnel.
Body material includes doors and the swing gate, body dimensions, weld and structural-adhesive locations, sealers, and gap-and-flush data.
Observe the manual's vehicle-support, spring-load, fuel- and brake-pressure, airbag-isolation, and refrigerant-handling precautions whenever those systems are serviced.
Selected Warm-Engine Oil-Pressure Specifications
For the 3.7L engine, the lubrication test specifies readings after the engine has warmed until the thermostat opens. Minimum pressure at curb idle is 25 kPa (4 psi); the specified range at 3,000 rpm is 170–758 kPa (25–110 psi).
These values accompany the mechanical-gauge testing procedure and oil-pickup and pressure-relief diagnosis.
