Honda CB1300F Super Four Factory Service Manual (P/N 62MEJ00)

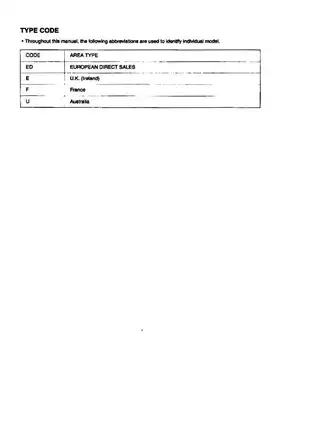

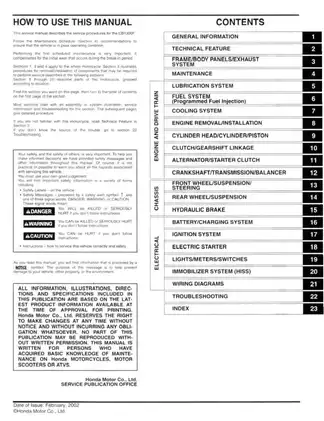

• Exact coverage: Honda shop manual for the CB1300F3, dated February 2002, covering ED (European Direct Sales), E (U.K./Ireland), F (France), and U (Australia) market types. The 518-page PDF contains 517 pages of Honda manual content through the index, followed by one separate reference-links page.
• Engine repair scope: Documents engine removal and installation, compression testing, camshaft and cam-chain timing, cylinder-head and valve work, cylinder and piston service, lubrication-system testing, and cooling-system repair.
• Bottom-end and drivetrain work: Covers crankcase separation, crankshaft and connecting-rod bearing inspection and selection, five-speed transmission service, shift drum and fork work, hydraulic clutch overhaul and bleeding, starter-clutch service, and balancer installation and backlash adjustment.
• PGM-FI diagnosis: Includes MIL blink-code and DTC indexes, guided fault isolation, ECM terminal checks, fuel-pressure and pump-flow testing, injector and sensor diagnosis, starter-valve synchronization, and variable-air-intake and PAIR controls.
• Chassis repair procedures: Details fork disassembly and rebuilding, fork filling and air bleeding, steering-stem bearing replacement and preload checks, wheel and swingarm bearing service, rear shock inspection, and front and rear brake hydraulic service.
• Electrical and security systems: Covers battery and charging tests, ignition peak-voltage and timing checks, starter diagnosis, meters and switches, HISS key registration and fault codes, plus market-specific wiring diagrams for the listed ED and U configurations.

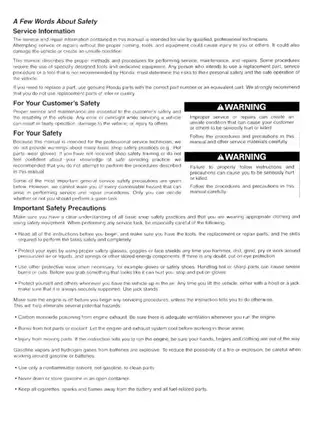

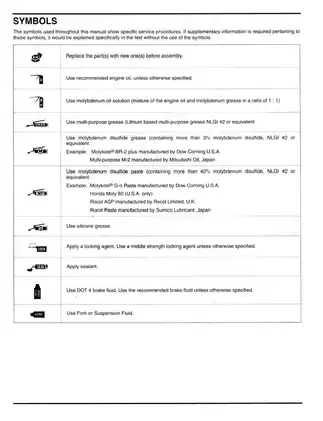

Honda identifies this as service information for qualified professional technicians and states that it is written for people who already have basic Honda motorcycle maintenance knowledge. The depth of the repair procedures and the required measuring equipment make it suited to experienced owners only when they have comparable skills and workshop tools; it does not teach basic shop safety. Coverage is limited to the CB1300F3 and the market types listed above. Later S, SA, A, and ABS-specific repair procedures are not part of this edition.

Engine, Fuel, and Drivetrain Reference

The 1,284 cc liquid-cooled DOHC inline-four is treated as a repairable assembly, not just a maintenance item. The manual follows oil flow through the pump, strainer, pressure-relief valve, and cooler, then carries engine work through top-end inspection and crankcase service. Factory tables supply component torque data, oil clearances, wear limits, valve and piston measurements, fluid capacities, pressure-test figures, and adjustment specifications without leaving the technician to combine values from separate publications.

PGM-FI coverage separates MIL blink-code checks from DTC-based diagnosis and provides an ECM test-harness terminal layout for circuit measurements. Named factory tools include the fuel-pressure gauge 07406-0040003, SCS short connector 070PZ-ZY30100, two ECU test harnesses 070MZ-0010201, and HISS inspection adapter 07XMZ-MBW0101. The HISS chapter addresses lost-key and replacement-key registration, ignition-switch replacement, diagnostic-code indication, and tests for the indicator, receiver, ECM, power, ground, and signal lines.

Two repair cautions are worth noting. The throttle body is factory preset; disturbing its white-painted screws or snapping the throttle closed with the cables removed can upset throttle and idle-valve synchronization. During bottom-end repair, Honda calls for color-coded crankpin and main-journal bearing selection followed by an oil-clearance recheck with Plastigage, warning that an incorrect clearance can cause severe engine damage.

Chassis, Electrical, and Diagram Coverage

Suspension work extends beyond removal and replacement. The fork section covers internal inspection, bushing and seal service, damper assembly, fluid filling, trapped-air removal, and final adjustment. Separate chapters handle steering-head bearings, rear wheel and driven-flange bearings, swingarm pivot bearings, twin rear shocks, brake master cylinders and calipers, brake bleeding, and clutch master and slave cylinders.

Useful graphics include the lubrication-system diagram, PGM-FI system diagram and ECM terminal layout, cooling-system flow pattern, battery/charging and ignition system diagrams, HISS system diagram, and the complete market-specific wiring schematics. The wiring chapter spans seven PDF pages: one chapter page and six schematic pages forming three two-page layouts for ED English/French/Germany, ED Italian/Spanish/Dutch, and U types. Cable and harness routing views, component-location drawings, exploded assemblies, troubleshooting flowcharts, and the final index support repair work throughout the manual.

Fuel pressure must be released with the engine off before fuel lines are opened, and the cooling system must be allowed to cool before the radiator cap is removed. Brake and clutch fluid can damage painted, plastic, and rubber surfaces, so the manual’s system-specific precautions belong with the repair procedures.
