Mercury MerCruiser 4.3L MPI Engine Service Manual – 2001 (P/N 90-864261)

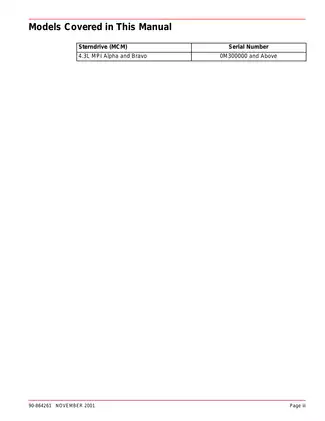

Mercury Marine Service Manual No. 32, P/N 90-864261, November 2001 edition, covers MerCruiser 4.3L MPI MCM gasoline engines used with Alpha and Bravo sterndrives. The cover specifies SN 0M322781 and above; the internal Models Covered table lists 0M300000 and above. Check this difference against your engine identification before ordering.

PDF Text Search and Wiring Detail

Search, navigation, and diagram labels: Text search is available throughout the main service chapters, but the GMEFI Harness MCM diagram’s labels are not reliably searchable. There are no embedded PDF bookmarks. Small connector numbers and wire-color labels in the dense harness diagram require zooming.

The download contains one printable, English-language 510-page PDF. This total includes the original cover, front matter, and 24 blank pages distributed throughout the document.

Engine Overhaul, EFI Service, and Marine Systems

These are selected contents, rather than a complete table of contents. Further topics include battery-cable sizing and spark-plug condition analysis.

• Engine installation: Engine removal, mounting and alignment, Alpha/Bravo shift-cable setup, throttle adjustment, and restoration of electrical and fluid connections.

• Mechanical repair: Step-by-step procedures for cylinder-head and valvetrain service, camshaft and balance-shaft work, oil-pump repair, and lower-engine overhaul.

• Electrical diagnosis: Starter and solenoid tests, ignition-component service, charging-circuit checks, wiring diagrams, and symptom/cause/action troubleshooting charts.

• Fuel and EFI: Cool Fuel disassembly and reassembly, throttle-body and intake-manifold service, ECM replacement, and sensor and relay procedures.

• Cooling systems: Seawater-pump output testing and overhaul, thermostat tests, closed-cooling pressure tests, heat-exchanger service, and drain-system diagnosis.

• Exhaust repair: Manifold, elbow, and riser removal, sealing-surface inspection, manifold leak testing, and installation for seawater-cooled and closed-cooled configurations.

• Power steering: Pump and pulley replacement, flow-control-valve service, shaft-seal replacement, hose routing, fluid-cooler connections, filling, and bleeding.

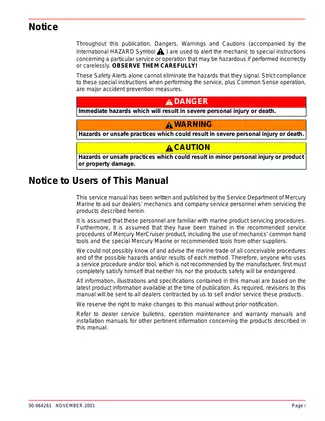

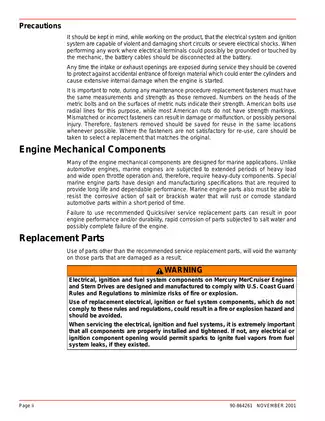

Written for Mercury Marine dealers’ mechanics and company service personnel, this manual assumes training in marine servicing and familiarity with the recommended tools and procedures.

Engine Installation and Internal Repair

Installation details: The removal and installation section addresses engine-coupler alignment with the gimbal bearing, continuity wiring, instrumentation, trim-position sender, MerCathode controller, warning alarm, and power-trim pump. Fuel, gear-lube-monitor, power-steering, cooling-water, and coolant-recovery connections are also covered.

Alpha installations include temporary shift-cable setup with the drive removed. Bravo procedures distinguish propeller-rotation configurations and cable-backlash adjustment. Separate instructions address sterndrive water pickups and alternative pickups.

Overhaul depth: Cylinder-head work extends through rocker arms, pushrods, valve springs and seals, hydraulic lifters, valve-guide inspection, and valve-seat reconditioning. Camshaft and balance-shaft procedures include bearing removal, installation, and inspection.

Lower-engine coverage includes the oil pan and pump, crankshaft balancer and front cover, pistons and connecting rods, crankshaft and main bearings, block inspection, and cylinder reconditioning. Timing-chain and sprocket service, flywheel housing, flywheel, rear oil seal, and oil-filter bypass adapter procedures complete the mechanical section.

Tools and repair precautions: References include Engine Alignment Tool 91-805475A1, Shift Cable Adjustment Tool 91-12427, Camshaft Bearing Service Kit J33049, and Balance Shaft Service Kit J38834. The alignment cautions explain how forcing the tool or moving the engine with it inserted can damage the gimbal bearing or coupler.

Sterndrive scope: This is an engine service manual, not an internal sterndrive overhaul manual. Drive-unit removal, propeller work, MerCathode testing, and Alpha sterndrive seawater-pump repair refer to the applicable separate sterndrive publication.

Starting, Ignition, and Charging Diagnosis

Electrical procedures cover the Delco PG260F1 starter and solenoid, spark plugs and wires, ignition coil, distributor disassembly and indexing, and Delco alternator testing on the engine. Resistance checks, charging-circuit tests, and a battery-isolator layout are included. The listed electrical tool is Multi-Meter/DVA Tester 91-99750A1.

The starting-system voltage-drop tests help distinguish battery-cable and connection resistance from starter faults before the starter is removed.

Troubleshooting charts address hard starting, no-start and no-crank conditions, charging failure, poor fuel economy, poor idle, high-rpm complaints, and weak acceleration. Other charts cover vacuum-gauge diagnosis, engine noise, oil pressure and consumption, water intrusion, overheating, steering faults, and slow or inoperative drain systems.

Diagram examples include Single Station Installations - Typical, Power Trim System, MerCathode System Wiring Diagram, and GMEFI Harness MCM.

Cool Fuel and EFI Component Service

The fuel section identifies the fuel rail and six injectors, sensor locations, and supply and return paths in the Fuel System Flow Diagrams. Procedures address fuel-pressure relief, flame-arrestor cleaning, water-separating fuel-filter replacement, and upper and lower intake-manifold service.

Component coverage includes the MAPT sensor, TPS, IAC valve, knock sensor, oil-pressure sensor and switch, fuel-pump relay, and main-power relay. ECM service covers removal, inspection, and replacement of the sealed module. EFI precautions address harness probing, splicing, accessory connections, and approved diagnostic tools.

Cooling, Drain Systems, and Exhaust

Cooling instructions distinguish engine-mounted and Alpha sterndrive-mounted seawater pumps. They also cover inlet and strainer installation, auxiliary-heater connections, circulating-pump service, water-distribution-housing repair, and thermostat testing.

Closed-cooling diagnosis includes system and pressure-cap testing, cylinder-head-gasket leak checks, heat-exchanger inspection and repair, and hose routing. The Closed Cooling System Water Flow Diagram shows the circuit arrangement. The manual identifies tube-leak repair as a temporary measure.

Manual single-point, air-actuated single-point, and three-point manual drain systems have separate instructions for boats in and out of the water.

Exhaust illustrations distinguish no-riser, 3-inch-riser, and 6-inch-riser arrangements. The removal warnings explain how water left in manifolds or elbows can enter the combustion chambers and cause severe engine damage.

Steering and Scheduled Maintenance

Power-steering instructions distinguish pressure and return hoses and their cooler connections. Routine and scheduled service covers engine oil and filter changes, flushing, gear-lube monitoring, trim and steering fluids, seawater strainers, closed-cooling maintenance, anodes, continuity circuits, and MerCathode checks.

Cable and linkage lubrication, gimbal-bearing and coupler lubrication, flame-arrestor cleaning, serpentine-belt service, drain-system care, and cold-weather storage are included. Belt illustrations identify the idler-bracket and washer order needed for correct tracking. Applicable procedures also address battery isolation, bilge ventilation, fuel-pressure relief, and cooling-water supply.

Camshaft and Ignition Test Values: A Preview

The camshaft inspection section specifies a maximum runout of 0.065 mm (0.0026 in.), checked with V-blocks and a dial indicator. Journal-diameter and out-of-round limits accompany the inspection procedure.

For ignition coil 392-863704, the specification table lists primary resistance of 0.60–0.80 ohms and secondary resistance of 9,400–11,700 ohms.
