MerCruiser D7.3L D-Tronic V-8 Diesel Service Manual #27, 1998–2002 (P/N 90-861784 998)

Mercury Marine Service Manual No. 27 (P/N 90-861784 998, ©1998) covers the MerCruiser V-8 Diesel D7.3L D-Tronic marine engine, with structured guidance on core engine maintenance, complete teardowns, and advanced troubleshooting.

PDF Search, Diagram Detail and Page Count

Text search and diagram viewing: Service text is searchable, although some diagram and diagnostic-menu labels are not searchable as displayed. There are no embedded PDF bookmarks. Small pin numbers and wire codes on detailed wiring diagrams require zooming.

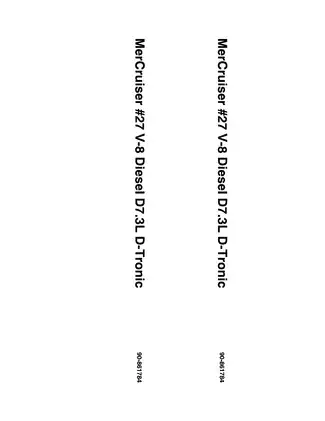

One printable, English-language PDF contains 631 pages, including the original cover and one spine-label page. Both are already included in the total.

Engine Overhaul and D-Tronic Fault Diagnosis

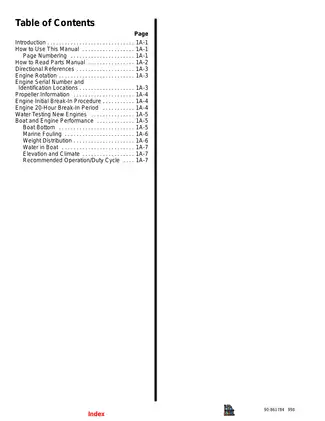

These selected coverage highlights are not a complete table of contents. Other topics include sacrificial-anode service and recommissioning after storage.

• Engine repair: Step-by-step cylinder-head disassembly, injector-sleeve replacement, crankshaft and piston inspection, camshaft service, and hydraulic valve-lifter testing.

• Fuel and injection hardware: Tandem lift-pump removal and installation, injector replacement, high-pressure oil-pump service, and Injection Pressure Regulator (IPR) replacement.

• D-Tronic diagnostics: STI switch flash-code retrieval, Electronic Service Tool (EST) Injector Buzz Tests, Cylinder Contribution Tests, and High Pressure Leakage Tests.

• Starting and charging: Delco Remy 28MT starter overhaul, Mando alternator testing and repair, and glow-plug circuit diagnosis.

• Cooling systems: Seawater-pump disassembly and seal replacement, cooling-system flushing, thermostat testing, and heat-exchanger and closed-circuit leak checks.

• Intake and exhaust: Intake-manifold service, aftercooler cleaning and leak testing, exhaust-manifold replacement, and Schwitzer turbocharger inspection and replacement.

• Power steering: Pump replacement, pressure and return-hose service, fluid-level checks, and system filling and bleeding.

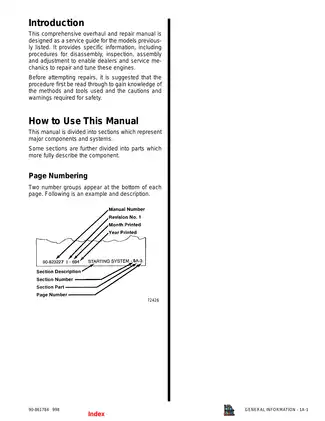

Written for dealers and service mechanics, this manual assumes workshop knowledge and access to the specified measuring equipment and special tools.

Engine Installation and Internal Inspection

Installation scope: Engine removal, installation, and alignment instructions cover the MCM sterndrive configuration. Stern-drive removal and installation require the separate Stern Drive Service Manual.

The mechanical sections combine exploded views, component-specific torque data, and inspection limits. The Engine Lubrication System Flow Chart and Fuel System Diagram show the routing behind the service procedures.

Piston and cylinder-head checks: Keystone top-ring groove inspection uses the ZTSE-30201 pin-gauge method rather than a conventional side-clearance measurement. The cylinder-head inspection section warns that resurfacing the head can cause piston-to-valve contact.

Tracing Injection and Electrical Faults

The diagnostic sections support systematic fault isolation across fuel delivery, high-pressure oil supply, and electrical controls. For poor idle quality, the Injection Control Pressure Test addresses oil aeration, including depleted anti-foam additives after extended oil drain intervals.

Control-system checks: Electronic Control Module (ECM), Injector Driver Module (IDM), and Vessel Personality Module (VPM) coverage includes operating explanations, communication checks, and circuit diagnosis. ECM System Harness wiring diagrams, the Injector Circuit Diagram, and connector pinouts connect fault codes with the relevant test points.

The tool-use section explains the PRO-LINK 9000 EST, ZTSE-4346 breakout box, and ZTSE-4347 sensor breakout tee. STI flash-code retrieval offers an alternative when EST communication is unavailable, but it does not display VPM fault codes.

Follow the manual’s precautions for high-pressure oil and energized injector-drive circuits.

Cooling Routes and Leak Diagnosis

Separate seawater and closed-cooling sections distinguish pump, cooler, and internal engine leak checks. The head-gasket leak discussion explains why a conventional pressure test may miss a combustion leak that appears under operating load.

The Water Flow Diagram and Flow Diagram - Auxiliary Hot Water Heater Connection identify cooling routes and heater connections.

Turbocharger and Steering Service Limits

The Schwitzer turbocharger section covers bearing-clearance inspection and unit replacement; faulty internal components call for replacement of the complete turbocharger. Its cleaning precautions explain how spinning the turbine with compressed air can damage unlubricated bearings.

Power-steering pumps are treated as replacement units rather than internally repairable assemblies. Additional procedures for the complete steering system are assigned to the separate Stern Drive Service Manual.

A Preview of Fluid and Valve Specifications

Cooling and lubrication: Closed-cooling capacity is approximately 26 US qt (24.5 L). The engine specifications give a minimum oil pressure of 10 PSI at 650 RPM.

Valve inspection: Intake-valve stem diameter is 0.31185–0.31255 in. (7.9210–7.9388 mm). The cylinder-head section also provides guide-clearance limits, valve-seat dimensions, and gasket-surface flatness criteria.
