MerCruiser Alpha One Gen II Sterndrive Service Manual 1997–2001 (P/N 90-818177-3)

Mercury MerCruiser Service Manual No. 14 is the April 2001 factory repair manual for Alpha One Generation II sterndrive units, covering standard-rotation and counter-rotation assemblies. This edition carries P/N 90-818177-3.

PDF Text Search, Bookmarks, and Diagram Detail

Search and diagram access: Service text is searchable, although some labels embedded in illustrations are not. Embedded bookmarks are only partly usable: most entries have no destination. Small wiring labels and terminal numbers are readable when enlarged.

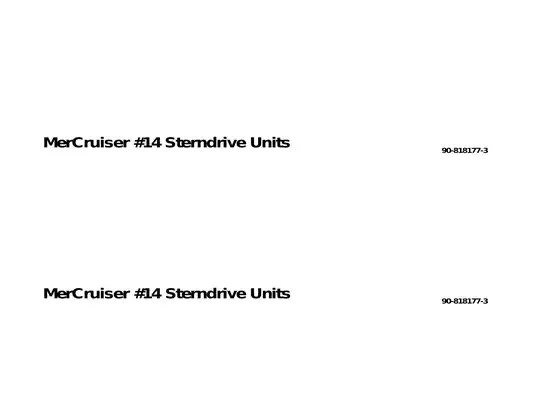

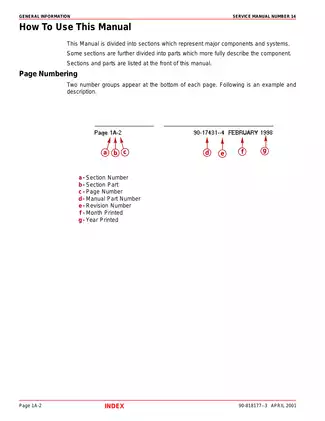

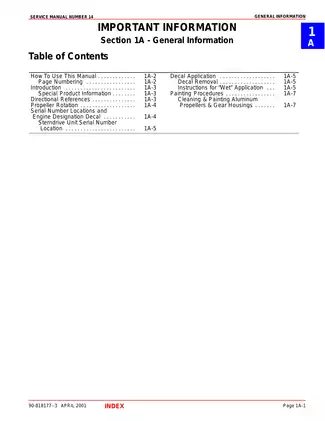

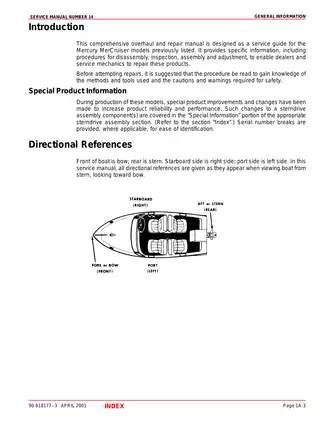

One printable English-language PDF contains 673 pages, including the cover, one spine-label page, and 28 intentionally blank pages.

Sterndrive Overhaul, Transom Service, and System Diagnosis

The following selected repair areas outline the coverage. Additional material includes a cutout-switch adjustment-tool pattern and crimp-clamp tool fabrication drawings.

• Removal and installation: Sterndrive, propeller, and transom procedures; right- and left-hand drive identification; remote-control shift-cable adjustment; separate transom installation instructions for power and manual steering.

• Drive-shaft housing: U-joint and driven-gear inspection, oil-seal carrier and pinion subassemblies, top-cover service, bearing preload, gear-location adjustment, seal installation, and final reassembly.

• Gear-housing overhaul: Separate step-by-step standard-rotation and counter-rotation procedures cover the water pump, bearing carrier, drive and propeller shafts, gears, shift spool and shaft, pinion bearing, shimming, and backlash.

• Transom assembly: Trim-limit switch and position sender, gimbal bearing, shift cable and bellows, exhaust and U-joint bellows, gear-lube monitor plumbing, gimbal ring, swivel shaft, and steering lever.

• Power trim: Oildyne pump pressure and restriction tests, bleeding, cylinder leakage and shock-piston checks, motor and solenoid testing, hydraulic and motor repair, cylinder overhaul, and dual-trim electrical tests.

• Steering systems: Early- and late-style power-steering diagnosis, pressure and booster-cylinder tests, early-style control-valve balancing, manual-steering swivel-ring repair, and multiple-drive tie-bar arrangements.

• Corrosion diagnosis: Troubleshooting for underwater corrosion, MerCathode electrical checks, reference-electrode testing, and hull-potential assessment.

Mercury wrote this manual for dealers and service mechanics; overhaul work calls for shop experience, precision measuring equipment, and the specified service tools.

Before beginning repair work, review the factory warnings covering drive lifting and support, in-water shift and steering tests, electrical isolation, and hydraulic-system service.

Production Changes That Affect Parts and Setup

Serial-specific production notes help match replacement parts and setup procedures to the installed drive before an overhaul. They distinguish the bearing and gear-housing revisions at S/N 0F680000, counter-rotation shift spools at 0F726586, standard-rotation shift spools at 0K041000, and the revised U-joint bearing arrangement at 0L100009.

The removal and installation material also illustrates the 1997-1/2-and-earlier and 1998-and-later speedometer connectors.

Mercury warns that mixing incompatible earlier- and later-style gear-housing parts can damage the sterndrive. Incorrect trim-limit adjustment can let the drive move beyond the gimbal-ring support flanges and damage the unit.

Maintenance, Storage, and Corrosion Protection

Routine and scheduled maintenance covers lubrication of the shift-cable pivots, propeller shaft, steering system, tie bars, hinge pins, and gimbal bearing. Gear-lubricant checks distinguish installations with and without a gear-lube monitor.

Further procedures address water contamination, lubricant changes, exterior surfaces, anodes, grounding continuity, gear-housing refinishing, antifouling precautions, seasonal layup, and recommissioning.

Corrosion coverage: Maintenance guidance and corrosion troubleshooting are included, but the separately referenced Section 7 corrosion-protection chapter is not included in this PDF.

Steering Component Repair and Service Limits

Early-style steering component procedures cover the cable guide tube, control valve, and booster cylinder. The later-style control valve is replaced as a complete assembly and must not be repaired or adjusted.

Power-steering pump service includes flow-control valve work, shaft-seal replacement, disassembly, inspection, and reassembly. Cable-selection guidance and tie-bar sizing and installation information support steering-system replacement work.

Service Tools, Diagrams, and Fault-Finding References

Repair sections provide torque tables, lubricant and sealer references, bearing-preload data, shimming and backlash specifications, pressure-test values, inspection limits, and electrical checks.

Listed equipment includes Drive Shaft Bearing Preload Tool 91-14311A2, Pinion Gear Shimming Tool 91-56048T, and Shift Cable Removal and Installation Tool 91-12037. Hydraulic diagnosis uses Trim Pump Test Gauge Kit 91-52915A6 and Power Steering Test Gauge 91-38053A4.

Assembly references include the Standard Rotation Gear Housing Exploded Parts View, Counter-Rotation Gear Housing Exploded Parts View, and Alpha One Transom Assembly Exploded View.

Electrical and hydraulic references include the Power Trim Hydraulic Schematic, Power Trim System Wiring Diagram, and Auto Trim II System Wiring Diagram. Troubleshooting charts address hard or failed shifting, housing noise, performance and cavitation complaints, steering faults, and trim electrical and hydraulic problems.

Repair boundaries: Auto Trim II coverage consists of electrical troubleshooting and wiring references. Engine alignment and engine repair require the appropriate engine service manual.

Preview of Trim-Pump Test and Gear-Shimming Data

Oildyne pump pressure-test specifications distinguish the OUT/UP circuit at 2,200–2,600 psi from the IN/DOWN circuit at 400–600 psi. The manual gives the test-gauge configuration for each circuit alongside separate restriction and cylinder-leakage checks.

For standard-rotation gear-housing setup, the pinion-location procedure specifies an average pinion-gear height of .025 in. (0.64 mm), supported by checking and shim-adjustment instructions.
