Mercury MerCruiser Alpha One (Gen II), Bravo I, II, III, 3.0L, V6 & V8 Sterndrive Service Manual (P/N 90-818177-3)

Mercury Marine Service Manual No. 14, publication 90-818177-3 (April 2001), is a 727-page PDF covering the MC Alpha One Generation II transom assembly and standard- and counter-rotation sterndrive units. Written for Mercury Marine dealer mechanics and company service personnel, it assumes prior sterndrive-service experience, common shop equipment, and access to the specified factory tools.

• Covers sterndrive removal and installation, propeller installation, engine-alignment checks, and separate right- and left-hand remote-control shift-cable adjustment.
• Provides drive-shaft housing and standard- and counter-rotation gear-housing disassembly, inspection, shimming, bearing-preload, gear-location, backlash, sealing, water-pump, and reassembly procedures.
• Details minor and major transom service, including the gimbal bearing, bell housing, gimbal ring, swivel shaft, steering lever, U-joint and shift-cable bellows, trim sender/limit switch, and gear-lube monitor plumbing.
• Includes Oildyne trim-pump pressure and restriction tests, hydraulic and motor repair, trim-cylinder leak and shock-piston tests, system bleeding, Dual Power Trim diagnosis, and Auto Trim II adjustment.
• Separates early and late component designs by serial break, with identification and repair information for bearing bores and carriers, U-joints, propeller shafts, shift spools, and related gear-housing parts.
• Supports fault isolation with sterndrive, shift, steering, power-trim, Auto Trim II, and corrosion-protection troubleshooting, plus electrical wiring diagrams and hydraulic schematics.

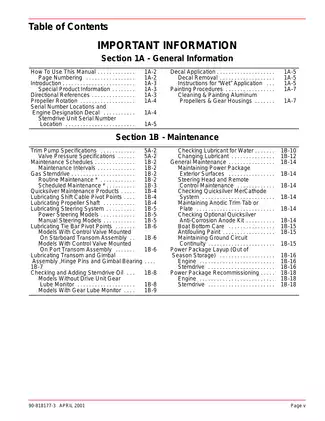

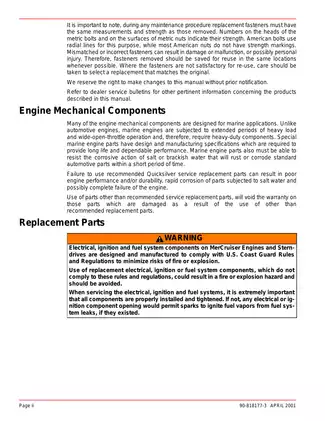

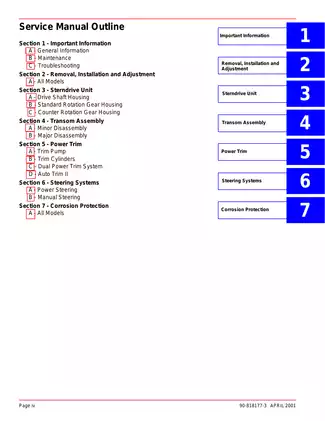

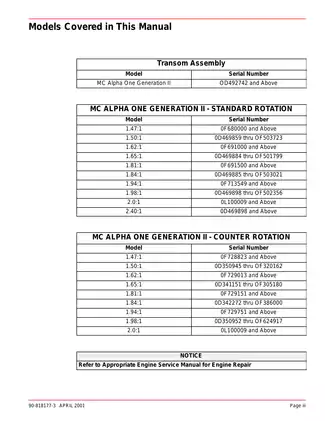

Model and Serial Coverage

The transom-assembly coverage begins at serial number 0D492742. Drive coverage is listed by ratio and rotation:

Serial-specific service notes distinguish the Perm-A-Lube U-joint change at 0D899000, bearing-bore and carrier changes at 0F680000, the standard-rotation shift-spool change at 0K041000, the counter-rotation shift-spool change at 0F726586, and the revised U-joint bearing-preload arrangement beginning at 0L100009.

Repair Procedures and Shop Data

The gear-housing chapters go beyond parts replacement. They cover pre-disassembly checks, internal teardown, bearing and seal service, shaft and gear inspection, pinion setup, forward/reverse backlash adjustment, final assembly, and joining the gear housing to the drive-shaft housing. Transom sections add trim-limit and sender adjustment, shift-cable replacement, gimbal-housing repair, bellows service, and an Alpha One access-plug drilling template.

Power-trim coverage includes in-boat and bench electrical tests for fuses, solenoids, the motor, armature, fields, and thermal protection. Steering chapters address earlier serviceable and later non-serviceable power-steering control valves, filling and bleeding, control-valve balancing, pump and booster-cylinder pressure tests, power-steering component repair, multi-drive tie-bar arrangements, and manual-steering swivel-ring repair. The corrosion section covers continuity circuits, anodes, Integral MerCathode component service, freshwater and saltwater test interpretation, and Quicksilver Isolator applications.

Tool tables identify equipment such as Alignment Tool Assembly 91-805475A1, Bearing Preload Tool 91-14311A2, Pinion Gear Shimming Tool 91-56048T, Trim Pump Test Gauge Kit 91-52915A6, Power Steering Test Gauge 91-38053A4, and MerCathode Reference Electrode Test 91-76675T1. Specification sections provide component-specific torque data, shimming and preload specifications, pressure-test data, electrical test values, lubricants and sealers, and adjustment criteria.

Diagrams, Repair Cautions, and Scope

Named references include the Drive Shaft Housing Exploded Parts View, standard- and counter-rotation gear-housing exploded views, the Power Trim Hydraulic Schematic, Auto Trim II System Wiring Diagram, Dual Power Trim harness and electrical-box diagrams, and MerCathode monitor/controller wiring.

The manual warns that early- and late-style gear-housing parts must not be intermixed because drive damage can result. It also identifies cross-connected trim hoses as a sterndrive-housing damage risk and treats the gimbal bearing and carrier as a matched assembly that can be damaged during removal.

The 3.0L/in-line-four and V6/V8 illustrations apply to shift-component location, cable routing, exhaust-pipe layout, and transom installation differences; internal engine repair is not included. Engine work requires the appropriate separate engine service manual, and this publication does not cover Bravo I, II, or III drives. Drive removal, hydraulic service, and electrical work involve heavy components, stored pressure, and high-current circuits, so the factory safety notices should be reviewed before service.
