Mercury MerCruiser 3.0L Alpha 1998+ Service Manual Set (P/N 90-861329--1)
528 Pages • 1 Printable PDF (English) • Download
Mercury Models Covered & Key Technical Specifications

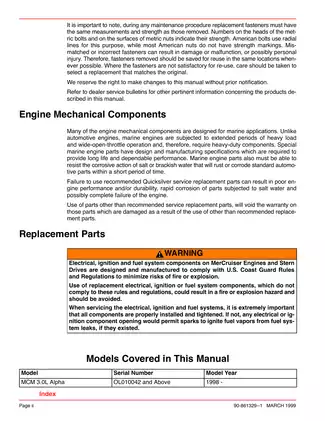

Models: MCM 3.0L Alpha
Model Year: 1998–2003 (1998, 1999, 2000, 2001, 2002, 2003)
Sub-models / Variants: MCM 3.0L Alpha (engine-code suffix RX: S/N 0L096999 and below; engine-code suffix RP: S/N 0L097000 and above); 3.0L TKS (Generation 2 carburetor).
Starter-mount variants: RK long block (2 mounting holes; S/N 0L096999 and below); RP long block (3 mounting holes; S/N 0L097000 and above).
Serial Numbers: 0L010042 and Above
TKS supplement serial numbers: 3.0L Alpha: 0W302000; 4.3L Alpha: 0W300013; 5.0L Alpha and Bravo: 0W300010; 5.7L Bravo: 0W300755.
Thermostat serial breaks (seawater-cooled models): Brass thermostat: 0L340999 and below; stainless steel thermostat: 0L341000 and above.
-

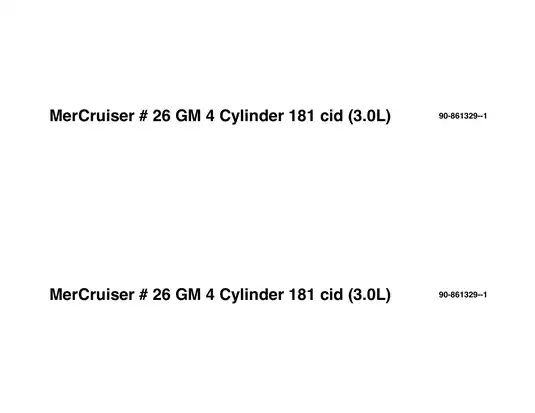

Engine displacement: 181 CID (3.0L)
-
Engine configuration: 4 Cylinder, GM
-
Compression ratio: 9.25:1
-
Idle rpm (in neutral): 700 rpm (base manual); 800 rpm (3.0L TKS normal idle)
-
Max rpm (at W.O.T.): 4400-4800 rpm
-
Firing order: 1-3-4-2
-
Compression pressure: Minimum 100 psi (690 kPa); the lowest cylinder reading must also be at least 70% of the highest reading.
-
Fuel pump pressure (at 1000 rpm): 6-8 psi (41-55 kPa)
-
Electrical system: 12 Volt Negative Ground
-
Spark plug gap: .035 in. (0.9 mm)
-
Crankcase capacity: 4 U.S. Quarts (3.8 liters), including filter; approximate capacity.
-
Rear engine mount torque: 38 lb-ft (52 Nm)
Mercury Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

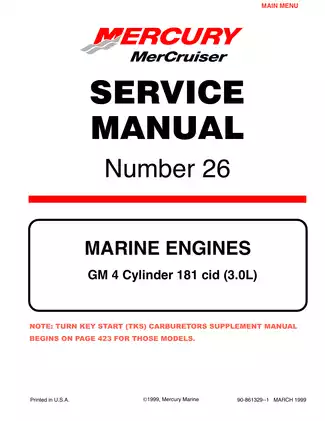

| Mercury MerCruiser Service Manual No. 26 — MCM 3.0L Alpha, serial 0L010042 and above; model year 1998 onward. March 1999 edition, P/N 90-861329--1. | 422 |
| Service Manual No. 41: Turn Key Start (TKS) Carburetors — supplement to Nos. 25, 26, and 31. Covers TKS systems for 3.0L Alpha, 4.3L Alpha, 5.0L Alpha/Bravo, and 5.7L Bravo. December 2004 edition, P/N 90-866202. | 106 |
The TKS supplement explains system changes and is intended for use alongside the appropriate engine service manual.
Engine and drive scope: Full engine repair coverage is specific to the application in No. 26. The other engine applications receive supplemental TKS coverage. Alpha sterndrive removal, installation, and internal overhaul require the appropriate separate sterndrive manual.
PDF Search, Bookmarks, and Diagram Detail
Search and navigation: Base-manual text supports searching, although some diagram lettering does not. Character-encoding problems limit normal word searches in most of the TKS supplement. Embedded bookmarks navigate the base manual’s subsections, but the carburetor entry is mislabeled and the supplement has no bookmark entries. Small wiring labels require zooming.
One printable English PDF contains 528 pages, including both publications’ covers and preliminary material, an additional identification page, and 24 blank pages.

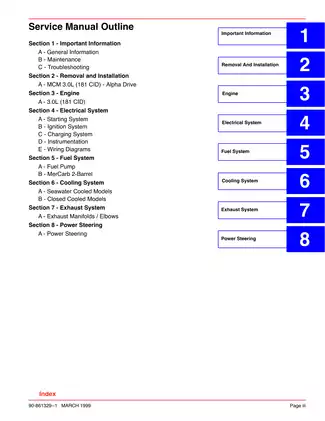

Engine Overhaul, MerCarb Service, and TKS Diagnosis
These selected coverage highlights summarize the main workshop subjects. Further topics include propeller-selection considerations and exhaust emissions-test probe installation.
-
Engine installation: Step-by-step removal, lifting-point selection, mounting, gimbal-bearing-to-coupler alignment, exhaust-bellows connections, cable connections, fuel-line routing, electrical hookups, and operational checks.
-
Internal engine repair: Cylinder-head and valve work, hydraulic lifters, rocker arms, push rods, lubrication components, timing gears, crankshaft seals, bearings, pistons, camshaft, and cylinder block.
-
Electrical service: Delco starter testing and repair information, EST distributor and ignition diagnosis, Mando alternator service, gauge and sender tests, ignition-key checks, and audio-warning circuits.
-
Fuel systems: Carter pump testing and replacement, water-separating filters, MerCarb adjustment and overhaul, high-altitude re-jetting, and TKS carburetor repair and enrichment-system diagnosis.
-
Cooling and exhaust: Seawater and closed-cooling procedures, thermostat and heat-exchanger tests, pressure checks, draining, recommissioning, manifold/elbow replacement, exhaust shutters, and riser selection.
-
Power steering: System filling and bleeding, belt adjustment, pulley service, pump and cooler replacement, hose routing, and a system flow diagram.
-
Troubleshooting: Charts address starting, charging, mixture, idle, acceleration, overheating, water intrusion, engine noise, oil pressure, steering faults, and insufficient Alpha seawater flow.

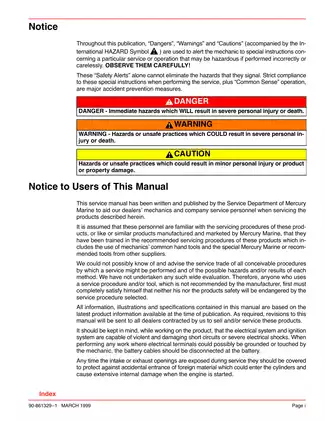

Mercury wrote these publications for dealer mechanics and company service personnel already familiar with marine servicing, common shop tools, and the specified special equipment.
Engine Variants and Overhaul Detail
The starter chapter distinguishes the earlier RK long block from the later RP version by starter-mount configuration. The engine-identification chapter separately lists RX and RP engine-code suffixes. These references help match the installed assembly to the relevant component information.
Step-by-step internal repair procedures extend to oil-pan and oil-pump service, flywheel and engine-coupler work, main and connecting-rod bearing inspection, piston assembly, and camshaft-bearing replacement. Supporting tables provide fits, clearances, wear limits, and component-specific torque specifications.
Maintenance schedules distinguish owner/operator tasks from dealer work. The material also covers the 20-hour break-in period, oil and filter changes, engine oil priming, closed-cooling coolant selection, flushing, seasonal layup, and recommissioning.
Starter Limits, EST Ignition, and Charging Tests
Starter repair limits: Both Delco PG260 and PG260F1 sections contain component illustrations, testing, and disassembly information. However, the PG260 section expressly limits available replacement components to the solenoid and drive housing; it should not be read as unrestricted rebuild coverage.
Ignition and charging: Delco EST coverage includes distributor installation, module and coil tests, a special timing procedure, advance curves, and a conditional timing revision associated with a specified cylinder-head-gasket failure.
Mando coverage includes 55-amp alternator overhaul and separate 65-amp reference specifications and an exploded view. Instrumentation material covers gauge, sender, ignition-switch, and warning-system checks.
MerCarb and TKS System Differences
The standard MerCarb section provides step-by-step carburetor overhaul procedures. The Carter fuel pump is tested and replaced as an assembly rather than repaired with a diaphragm kit.
For TKS applications, the supplement distinguishes Generation 1 and Generation 2 construction and provides exploded parts views for both. The 3.0L application uses Generation 2 only; its Generation 1 version was never released for production.
TKS diagnosis covers the module, oil-pressure switch, coolant-temperature switch, and enrichment circuit. The 3.0L system switches the module’s ground path, while the V6/V8 arrangement switches its positive supply. That distinction helps select the correct circuit diagram before tracing an enrichment fault.
Wiring References and Cooling Diagnosis
Named references include MCM engine wiring with and without a circuit breaker, Quicksilver instrumentation wiring, the battery-isolator diagram, cooling-system and power-steering flow diagrams, and 3.0L TKS production and retrofit wiring.
Vacuum-gauge diagnosis supplements the symptom charts. Closed-cooling tests distinguish external leaks, heat-exchanger leakage, and combustion-gas entry from a failed head gasket, linking overheating symptoms to different diagnostic checks.
Specified Tools and Repair Cautions
Specified equipment includes Engine Alignment Tool 91-805475A1, Timing Jumper 91-818812A1, Module Tester J24642, Universal Carburetor Gauge 91-36392, and TKS Idle Mixture Adjusting Tool 91-866201. Individual engine operations also identify Kent-Moore rebuilding tools.
The alignment warnings explain how forcing the tool or moving the engine with it inserted can damage the gimbal bearing or coupler. Carburetor cleaning cautions address enlarged metering passages caused by wire or drill bits.
Fuel, ignition, and electrical work carries fire, explosion, and short-circuit hazards; engine removal also requires properly rated lifting equipment and a stable work stand. Follow the manual’s ventilation, battery-isolation, cooling-water, and hot-coolant precautions throughout service.
Examples of TKS Module Test Specifications
The supplement’s resistance table specifies 35–45 ohms at an ambient temperature of 21°C (70°F), and 55–70 ohms at −6.6°C (20°F).
Its module bench-test reference gives a cold plunger extension of 20.6–22.2 mm from the module face. With the module connected to the specified power supply, extension should reach approximately 31.75 mm after 8–10 minutes.
