1983–1990 MerCruiser R, MR, Alpha One & Alpha One SS Sterndrive Service Manual #6 (P/N 90-12934--2 1097)
566 Pages • Printable PDF • 17.61 MB • Download
Mercruiser Models Covered & Key Technical Specifications
Models: MC 120R, MC 140B, MC 185R, MC 488R, MC 898R, MC 228R, MC 260R, MC 120MR, MC 140MR, MC 170MR, MC 185MR, MC 190MR, MC 200MR, MC 230MR, MC 260MR, MC 300 Tempest MR, MC Alpha One, Alpha One SS
Sub-models / Variants: 3.0L, 4.3L, 4.3LX, 5.7L, 350 Magnum, 454 Magnum, Sea Ray (Oyster White) Sterndrive Units: 3.0L (3.0L Alpha One), 4.3L2 (4.3L Alpha One), 4.3L4 (4.3LX Alpha One), 5.7L (5.7L Alpha One), SRX 5.7L (350 Magnum Alpha One), SRX 7.4L (454 Magnum Alpha One); early MR gear housings (propeller-shaft identification mark A), RH Rotation, LH Rotation / Alpha One Counter Rotation (propeller-shaft identification mark L)
Model Years: 1983–1990 (1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990)

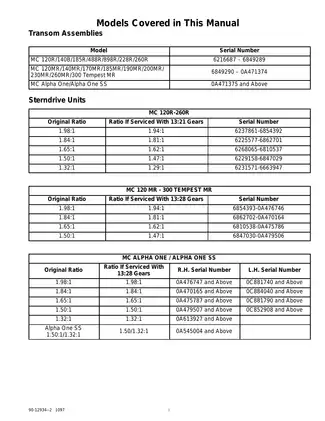

Serial Numbers: Transom Assemblies — R models: 6216687–6849289; MR models: 6849290–0A471374; Alpha One / Alpha One SS: 0A471375 and Above.
Sterndrive Units, original gear ratios — MC 120R–260R: 1.98:1, 6237861–6854392; 1.84:1, 6225577–6862701; 1.65:1, 6268065–6810537; 1.50:1, 6229158–6847029; 1.32:1, 6231571–6663947.
MC 120MR–300 Tempest MR: 1.98:1, 6854393–0A476746; 1.84:1, 6862702–0A470164; 1.65:1, 6810538–0A475786; 1.50:1, 6847030–0A479506.
Alpha One RH: 1.98:1, 0A476747 and Above; 1.84:1, 0A470165 and Above; 1.65:1, 0A475787 and Above; 1.50:1, 0A479507 and Above; 1.32:1, 0A613927 and Above.
Alpha One LH: 1.98:1, 0C881740 and Above; 1.84:1, 0C884040 and Above; 1.65:1, 0C881790 and Above; 1.50:1, 0C852908 and Above.
Alpha One SS: 1.50:1 / 1.32:1, 0A545004 and Above.

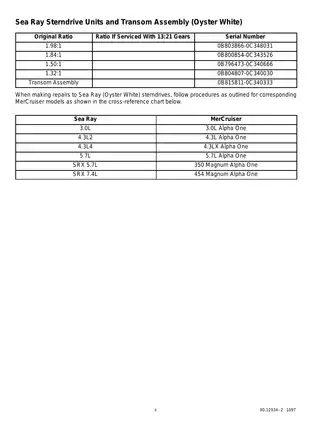

Sea Ray (Oyster White) Sterndrive Units: 1.98:1, 0B803866–0C348031; 1.84:1, 0B800854–0C343526; 1.50:1, 0B796473–0C340666; 1.32:1, 0B804807–0C340030. Sea Ray Transom Assembly: 0B815811–0C340333.
-
Propeller torque: 55 lb. ft. (75 N·m) minimum
-
Sterndrive to bell housing torque: 50 lb. ft. (68 N·m)
-
Transom assembly screw torque: 20–25 lb. ft. (27–34 N·m)
-
Power steering hose fitting torque (large): 20–25 lb. ft. (27–34 N·m)
-
Power steering hose fitting torque (small): 96–108 lb. in. (11–12 N·m)
-
U-joint retainer nut torque: 200 lb. ft. (271 N·m)
-
U-joint drive gear nut torque: 70–80 lb. ft. (95–108 N·m)
-
Upper drive shaft new bearing preload: 6–10 lb. in. (0.7–1 N·m)
-
Upper drive shaft used bearing preload: 2.5–4 lb. in. (0.3–0.45 N·m)
-
Trim limit switch adjustment dimension: 21-3/4 in. ± 1/4 in. (554 mm ± 6 mm)
Mercruiser Manual Features & Content Preview
MerCruiser Service Manual #6, 1997 edition, covers 1983–1990 R, MR, Alpha One, and Alpha One SS sterndrive units and transom assemblies. The printed document code is 90-12934--2 1097.
-
Sterndrive repair: Drive shaft housing disassembly, U-joint rebuilding, lower gear housing overhaul, water pump service, gear shimming, and bearing preload checks.
-
Transom assemblies: Gimbal bearing replacement, bell housing service, gimbal ring and swivel shaft repair, exhaust bellows installation, and lower shift cable replacement.
-
Shift diagnosis: RH and LH cable adjustment, excessive-play isolation, remote-control output checks, shift cutout switch timing, and hard-shifting troubleshooting.
-
Power trim: Oildyne pumps with plastic or aluminum reservoirs, Prestolite pumps, motor and solenoid tests, hydraulic bleeding, trim cylinder repair, and automatic trim controls.
-
Steering systems: Power and manual steering, hydraulic pressure testing, control valve balancing, booster cylinder service, and power steering pump repair.
-
Maintenance and corrosion: Lubrication schedules, gear lube monitor service, storage preparation, continuity circuit checks, MerCathode testing, and corrosion troubleshooting charts.

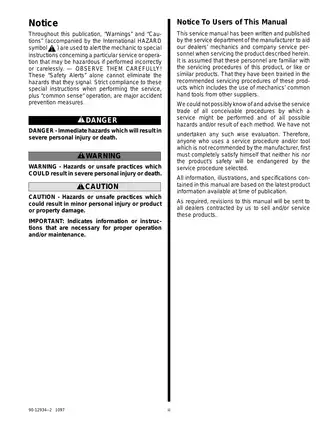

This manual was written for dealer mechanics and manufacturer service personnel already familiar with similar products and trained in their service procedures.
Drive Housings, Gear Sets, and Shift Control
Separate lower-unit procedures cover I-R, MR/Alpha One/Alpha One SS, and Alpha One Counter Rotation gear housings. They address driven gears, bearing carriers, propeller shafts, water pocket covers, and water pumps, with inspection criteria and reassembly guidance.
The Drive Shaft Housing Exploded View and Alpha One Counter Rotating Gear Case exploded view accompany gear-ratio identification tables, gear-depth and shimming charts, and alignment illustrations. Tool lists identify drive gear shimming tool 91-60523, driven gear shimming tool 91-60526, and alignment tool assembly 91-805475A1.
Shift-system troubleshooting distinguishes cable play and remote-control output faults from internal gearcase problems, helping narrow down hard-shifting complaints before replacement parts are selected.
The shift spool and forward gear bearing sections warn that mixing incompatible earlier and later internal parts can damage the drive; complete replacement shift spool assemblies receive separate guidance.
Gimbal Components, Bellows, and Steering
Transom service is divided into work requiring minor disassembly and work involving gimbal ring, swivel shaft, and steering lever removal. Earlier and later shift cables, trim position senders, and trim limit switches have their own service notes.
Gimbal bearing instructions treat the bearing and carrier as a matched assembly. Steering coverage extends to cable selection, single- and dual-engine installations, control valve servicing, and booster cylinder tests.
Oildyne and Prestolite Trim Diagnosis
Hydraulic test charts distinguish restrictions, pump faults, internal cylinder leakage, and shock piston problems. Motor repair sections include armature, field, and thermal switch tests, plus brush replacement.
The Oildyne sections distinguish motor and hydraulic adaptor repair from replacement of the pump itself. The pump descriptions also warn that substituting Oildyne and earlier high-pressure Prestolite units can impair trim operation and damage the system.
The Power Trim Hydraulic Schematic supports hydraulic fault tracing. Electrical references include the Power Trim Wiring Diagram, Auto Trim II System Wiring Diagram, and Dual Trim Control Panel Wiring Diagram, with relay, diode module, and switch testing for dual power trim control.
MerCathode Testing and Routine Maintenance
Corrosion diagnosis combines reference-electrode testing with cause-and-remedy charts for low readings, high readings, and corrosion despite normal readings. Maintenance sections identify Quicksilver 2-4-C Marine Lubricant applications and distinguish drives with and without gear lube monitors.
Engine-specific troubleshooting and engine storage procedures refer to the appropriate separate engine service manual.
Before starting any hands-on work on marine drive components, always ensure the battery is disconnected and the vessel is properly secured to prevent accidental injury or equipment damage.
A Preview of Gear Backlash Specifications
These gear housing values are a small sample of the inspection and setup specifications in the manual. For MR, Alpha One, and Alpha One SS units, forward gear backlash is .017–.028 in. (0.43–0.71 mm), while reverse gear backlash is .028–.052 in. (0.71–1.32 mm).
Alpha One Counter Rotation uses a different reverse gear range of .020–.030 in. (0.50–0.76 mm), showing why lower-unit specifications must match the drive configuration.
PDF Search, Bookmarks, and Diagram Detail
Finding procedures and wiring: Main text supports PDF search, and embedded bookmarks lead to sections and procedures. Some diagram labels are not searchable. Small wire-color codes and terminal numbers in dense Auto Trim and dual trim drawings require zooming.

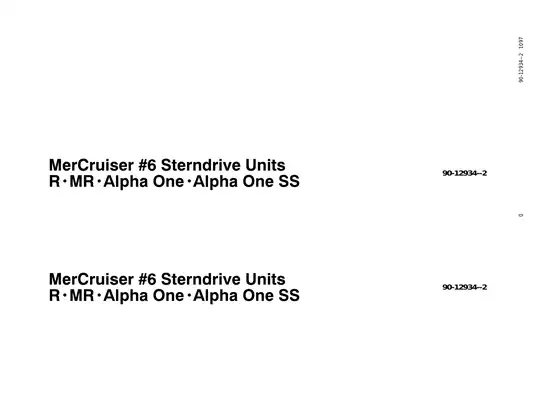

Supplied as one printable, English-language, 566-page PDF. The total already includes one cover page, one binder-label sheet, five preliminary pages, 19 section dividers, and nine intentionally blank pages.
