Mercury MerCruiser 3.7L & 3.7L LX Engine Service Manual #8 – 1993 (P/N 90-44553)

Mercury Marine Service Manual Number 8 (P/N 90-44553) covers the MerCruiser MCM 170 MR, 170 Alpha One, 165 Alpha One, 190 MR, 190 Alpha One, 180 Alpha One, 3.7 Litre Alpha One, and 3.7 Litre LX Alpha One engines. Coverage includes the engine and its electrical, fuel, cooling, exhaust, and power-steering systems.

PDF Bookmarks and Wiring Detail

Navigation and small labels: PDF text search is unavailable. Embedded bookmarks provide access to model coverage and the system sections. Small wire-color and terminal labels in the dual-station and engine wiring diagrams require zooming; the dual-station drawings are oriented sideways.

One printable English PDF contains 274 pages, including the original cover, contents, section dividers, and 12 blank reverse or end pages. The four pages of voltage-regulator-kit instructions are also included in that total.

Engine Overhaul, Carburetion, and System Diagnosis

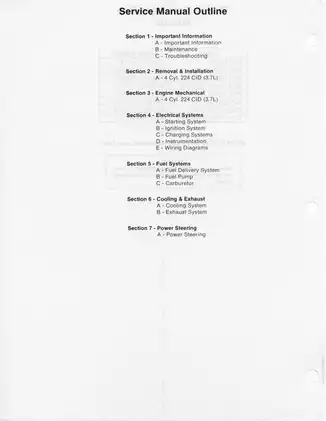

The following topics are selected examples of coverage, rather than a complete contents list. Other material includes voltage-regulator-kit installation and a power-steering priority-valve kit.

• Removal and alignment: Engine removal and installation, front and rear mounts, coupler alignment, and separate throttle-cable procedures for two-barrel and four-barrel carburetors.

• Internal engine repair: Step-by-step disassembly, inspection, and reassembly procedures for the cylinder head, valve train, lubrication system, bearings, pistons, crankshaft, camshaft, and timing chain.

• Starting and ignition: Starter teardown and bench tests, solenoid checks, Delco and Prestolite breaker-point distributor service, ignition timing, and advance-curve references.

• Charging and instruments: Alternator and regulator fault isolation, battery-isolator connections, gauge and sender checks, switch testing, and electrical wiring diagrams.

• Fuel delivery and carburetors: Carter mechanical fuel-pump testing and replacement, plus MerCarb two-barrel and Rochester 4MC four-barrel diagnosis, adjustment, and overhaul.

• Cooling and exhaust: Closed-cooling and seawater-system troubleshooting, head-gasket leak checks, heat-exchanger and pressure-cap tests, thermostat service, and exhaust manifold/elbow inspection.

• Power steering: System bleeding, belt adjustment, pump and cooler replacement, and pulley removal and installation, with troubleshooting for poor assist, noise, and leaks.

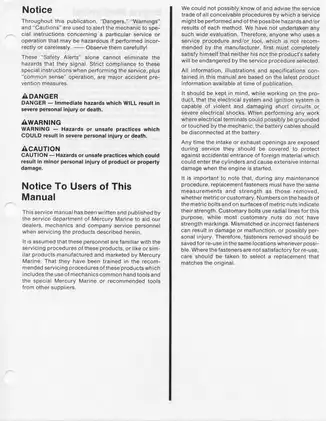

Mercury Marine wrote this manual for dealers, mechanics, and company service personnel already familiar with comparable service work and trained in the recommended procedures, including common hand tools and specified special tools.

Serial-Specific Applications and Setup

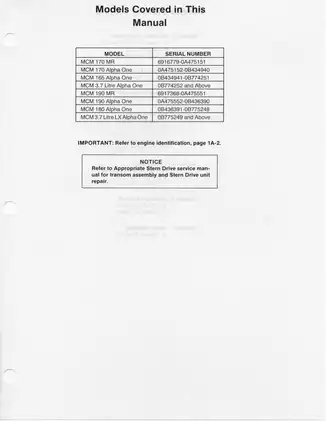

For the 170/165 family, coverage is MCM 170 MR, 6916779–0A475151; MCM 170 Alpha One, 0A475152–0B434940; MCM 165 Alpha One, 0B434941–0B774251; and MCM 3.7 Litre Alpha One, 0B774252 and above.

For the 190/180 family, coverage is MCM 190 MR, 6917368–0A475551; MCM 190 Alpha One, 0A475552–0B436390; MCM 180 Alpha One, 0B436391–0B775248; and MCM 3.7 Litre LX Alpha One, 0B775249 and above.

These application breaks and the separate carburetor sections help identify the appropriate parts and adjustment information before service work begins.

Mechanical Inspection and Maintenance

The engine section goes beyond assembly removal. It addresses valve-guide and valve-seat repair, hydraulic lifters, cylinder boring and honing, piston selection, bearing clearances, lubrication flow, and oil-pump inspection. Component torque tables and production-versus-service limits support the inspection work.

Maintenance coverage includes crankcase oil and filter changes, coolant and power-steering fluid checks, cable and coupling lubrication, engine break-in, seasonal layup, and recommissioning.

Factory tool references include alignment tool 91-805475A1, piston ring expander 91-24697, coupler wrench 91-35547, oil-pump alignment tool 91-14822, carburetor gauge 91-36392, and pulley installer 91-93656A1. Kent-Moore and Owatonna tools are also identified.

Fault Finding and Diagram References

Troubleshooting charts connect symptoms with possible causes for hard starting, rich or lean running, poor acceleration, high-RPM problems, engine noise, abnormal oil pressure, water intrusion, overheating, and erratic steering assist. Spark-plug condition charts and vacuum-gauge interpretation provide additional checks before teardown.

Illustrations include starting-system component schematics, 170/190 ignition and engine-harness wiring, alternator/regulator and battery-isolator connections, dual-station instrument layouts, power-trim wiring, and closed-cooling flow diagrams with auxiliary water-heater routing. Supporting tables cover fluid capacities, electrical tests, distributor advance, carburetor adjustments, and cooling-system checks.

Fuel-Service Limits and Repair Cautions

The carburetor chapters distinguish MerCarb and Rochester construction and adjustments, including float, choke, accelerator-pump, and idle-mixture work. The Carter fuel-pump section covers pressure testing, sight-tube inspection, filter service, and pump replacement; its diaphragm is nonreplaceable.

Transom assembly and stern-drive-unit repair require the appropriate Stern Drive Service Manual. That separate manual is also referenced for power-steering pump pressure checks and internal repairs, and for seawater pickup-pump service.

The rocker-arm section warns that incorrect valve positioning during bolt tightening can bend a pushrod. Incorrect exhaust installation can admit water into the manifolds and combustion chambers, causing severe engine damage.

Marine ignition and fuel-system work requires proper battery isolation, ventilation, and compliant replacement components to control fire, explosion, and electrical-shock hazards.

Sample End-Play and Exhaust Installation Specifications

For all covered models, the engine specifications list crankshaft end play of .006–.010 in. and camshaft end play of .002–.005 in., alongside the related inspection and assembly material.

The exhaust section specifies a minimum 13 in. (33 cm) between the waterline and the highest point of the exhaust elbow, with the boat at rest in the water and carrying its maximum load.
