1994 MerCruiser MCM 120/140, 2.5L & 3.0L Marine Engine Service Manual No. 10 (P/N 90-14693-1)

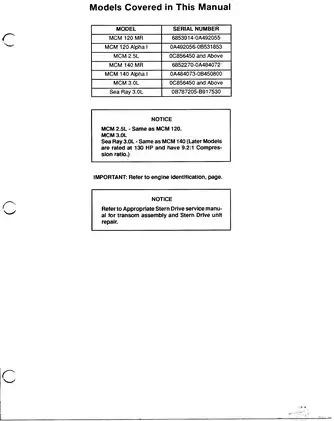

The 1994 edition of MerCruiser Service Manual Number 10 (90-14693-1) covers GM marine engines used in MCM 120 and 140 MR/Alpha I packages, MCM 2.5L and 3.0L models, and Sea Ray 3.0L.

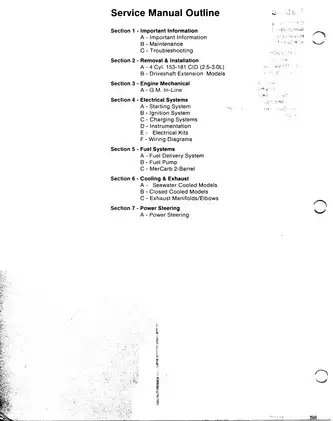

• Engine repair: Cylinder-head and valve reconditioning, hydraulic lifter service, piston and bearing inspection, crankshaft and camshaft work, and oil-pump overhaul.

• Removal and alignment: Engine removal, installation, and alignment for standard installations and driveshaft-extension models, with throttle-cable attachment and adjustment.

• Ignition and charging: Delco distributor repair, digital distributorless ignition (DDIS) tests, Delco-Remy starter overhaul, and Mando and Prestolite alternator diagnosis and repair.

• Fuel systems: MerCarb two-barrel overhaul, choke and float adjustments, Carter fuel-pump testing, and water-separating fuel-filter replacement.

• Cooling and exhaust: Seawater pickup pump troubleshooting, thermostat tests, closed-cooling pressure checks, heat-exchanger servicing, exhaust-manifold leak testing, and exhaust-shutter replacement.

• Maintenance and steering: Service schedules, engine-coupler and U-joint spline lubrication, winterization, recommissioning, and power-steering fluid checks and bleeding.

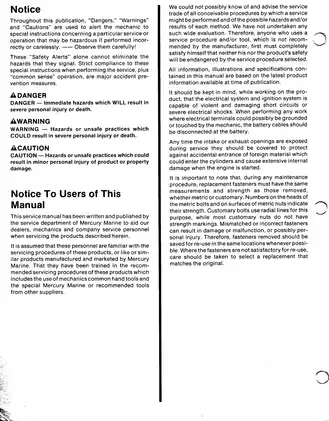

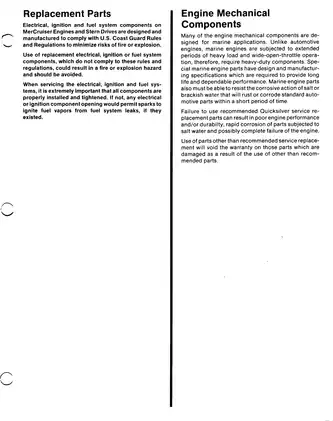

Written for dealers, mechanics, and service personnel already trained in Mercury Marine servicing, this manual assumes familiarity with workshop procedures and the specified special tools.

Engine Repair and Installation

The engine section covers cylinder heads, valve trains, oil pumps, and crankshafts, with production dimensions, service limits, and component torque tables. Illustrations include bearing-failure examples, spark-plug condition views, a vacuum-gauge troubleshooting chart, a cylinder-block exploded view, and the cylinder-head torque sequence.

Alignment: The installation sections relate engine-coupler alignment to the gimbal bearing and give separate bearing-support and shaft-angle procedures for driveshaft-extension models. They identify alignment tool 91-805475A1 and warn that incorrect driveshaft angles can damage U-joint bearings.

Valve-train precautions: The hydraulic-lifter adjustment notes explain how rapid preload changes can cause valve-to-piston contact and bent pushrods.

Transom-assembly and sterndrive-unit repairs, including work on Alpha I transom assemblies, require the applicable separate sterndrive service manual.

Ignition Diagnosis and Wiring

The DDIS section covers the ignition amplifier, coils, motion sensor, and shift-interrupter switch. Its no-start and no-idle charts help distinguish spark-plug and lead faults from failures within the ignition system before components are replaced.

Delco breaker-point distributor procedures include dwell, timing, and advance-curve checks. Prestolite replacement distributors require Service Manual 13 for their specifications and repair procedures.

Charging-system coverage includes output, excitation, sensing-circuit, rotor, stator, and diode tests for the documented alternators. Engine, DDIS, instrument-harness, and dual-station wiring diagrams identify wire colors and connector terminals; gauge and sender tests cover instrumentation faults.

MerCarb and Carter Fuel Systems

MerCarb repair extends to the throttle body, float bowl, air horn, and electric choke. Separate float settings distinguish solid from spring-loaded inlet needles; accelerator-pump linkage options and high-altitude jetting are also documented.

The low-volume Carter fuel pump has diaphragm-repair procedures. The high-volume Carter pump is replaced as an assembly, with pressure testing and sight-tube inspection covered for diagnosis.

Fuel and ignition work carries fire and explosion risks; consult a qualified marine technician when the required procedures are beyond your training.

Cooling, Exhaust, and Power Steering

Cooling-system flow diagrams distinguish seawater and closed-cooling arrangements. The text covers thermostat and water-distribution housings, heat-exchanger leak and blockage checks, and tests for combustion leakage through the cylinder-head gasket.

Exhaust coverage includes manifold inspection, elbow installation, and upper and lower exhaust-pipe work. Seawater-cooling page 6A-2 is missing from this file; page 6A-1 appears twice.

Power-steering coverage includes pump-pulley and cooler replacement, belt adjustment, and priority-valve kit 79691A1 for specified dual-engine installations. Detailed power-steering system testing and repair are referred to the separate sterndrive manual.

Examples of Bore and Cylinder-Head Specifications

These examples represent a small selection of the engine data in the manual.

The maintenance table lists nominal cylinder bores of 3.87 inches for MCM 120/2.5L engines and 4.00 inches for MCM 140/3.0L engines. The mechanical section separately provides production dimensions and service wear limits.

The cylinder-head bolt specification is 93 lb-ft (126 N·m), with a retorque requirement after the first 20 operating hours. The installation section supplies the tightening sequence and thread-preparation requirements.

PDF Access and Page Contents

Search, bookmarks, and wiring detail: Manual text is not searchable. Existing bookmarks point to separate chapter files and do not navigate this combined PDF. Small labels in engine and dual-station wiring diagrams require zooming; faint reverse-side text shows through on some pages.

One printable 308-page PDF in English. That total includes the cover and four introductory pages, plus the duplicate of page 6A-1; these pages are already included in the count.
