Mercruiser Stern Drive Units MCM 120-260 No. 4 service manual Preview image 1
Mercruiser Stern Drive Units MCM 120-260 No. 4 service manual Preview image 2
Mercruiser Stern Drive Units MCM 120-260 No. 4 service manual Preview image 3
Mercruiser Stern Drive Units MCM 120-260 No. 4 service manual Preview image 4
Mercruiser Stern Drive Units MCM 120-260 No. 4 service manual Preview image 5
Mercruiser Stern Drive Units MCM 120-260 No. 4 service manual Preview image 6

Mercruiser Stern Drive Units MCM 120-260 No. 4 service manual

Models covered in this manual:

  • MCM 120
  • MCM 140
  • MCM 165
  • MCM 170
  • MCM 175
  • MCM 185
  • MCM 190
  • MCM 200
  • MCM 205
  • MCM 228
  • MCM 230
  • MCM 260

Transom Assemblies

  • MCM 120/140/170/185/470/485/488/228/260

MC 120 - 260 Stern Drive Units

  • 1.98:1
    • Serial Number: 4896303 - 6200690
  • 1.84:1
    • Serial Number: 4896303 - 6205776
  • 1.65:1
    • Serial Number: 4896303 - 6220984
  • 1.50:1
    • Serial Number: 4896303 - 6220984

File specifications

File size: 41.45 MB
File type: PDF
Language: English

Printable: Yes
Estimated download time: 0.85 Minutes
$13.99 (incl. VAT) - Instant Download

Pay with Bitcoin

Product Information

Table of Contents

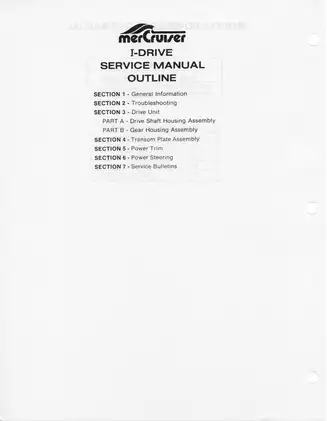

SECTION 1: GENERAL INFORMATION

  • Introduction
  • Safety Information
  • Maintenance Schedules
  • Specifications
  • Special Tools

SECTION 2: TROUBLESHOOTING

  • General Troubleshooting Procedures
  • Diagnostic Codes and Procedures

SECTION 3: DRIVE UNIT

  • Part A: Drive Shaft Housing Assembly
  • Part B: Gear Housing Assembly

SECTION 4: TRANSOM PLATE ASSEMBLY

  • Disassembly Procedures
  • Inspection and Reassembly

SECTION 5: POWER TRIM

  • System Description and Operation
  • Troubleshooting and Repair
  • Maintenance Procedures

SECTION 6: POWER STEERING

  • System Description and Operation
  • Troubleshooting and Repair
  • Maintenance Procedures

SECTION 7: SERVICE BULLETINS

  • Relevant Updates and Changes
  • Manufacturer Service Bulletins
