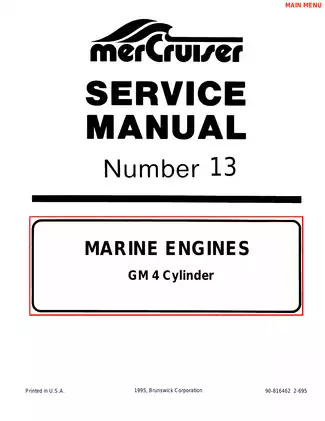

MerCruiser MCM 3.0L & 3.0LX Service Manual, 1990–1997 (P/N 90-816462)

Mercury Marine Service Manual No. 13 (P/N 90-816462) covers the 1990–1997 MerCruiser MCM 3.0L and 3.0LX GM four-cylinder marine engines. Engine removal, installation, and alignment are covered for Alpha One applications. Transom assembly and sterndrive repair require the separate sterndrive manual.

PDF Search, Bookmarks, and Wiring Detail

Searchable text and section bookmarks help locate procedures and specifications. Some wiring labels are embedded in the drawings. Zoom in to read small connector pin numbers and wire color codes.

The download contains one printable, English-language PDF with 348 pages, including the cover and its blank reverse.

Engine Overhaul, Electrical Diagnosis, and Fuel System Service

This selection of service topics includes major repair and diagnostic procedures. The manual also discusses how propeller pitch and boat loading affect engine performance.

• Internal engine repair covers cylinder head removal, valve train inspection, hydraulic lifter adjustment, piston service, and Plastigage checks of main and connecting rod bearings. It also covers oil pump disassembly, front cover service, and rear crankshaft seal replacement.
• Engine removal and installation includes Alpha One engine alignment and throttle cable adjustment, with flywheel and coupler inspection in the engine chapter.
• Ignition diagnosis includes Prestolite breaker-point distributor repair, DDIS motion sensor and amplifier checks, ignition advance curves, and the two-part Delco EST system check.
• Starting and charging covers conventional Delco and PG200 starter repair, PG260 service limits, and Mando and Prestolite alternator overhaul with rotor, stator, and rectifier tests.
• Fuel system service covers MerCarb two-barrel overhaul, float and electric choke settings, accelerator pump adjustment, and Carter fuel pump pressure testing and filter replacement.
• Cooling and exhaust covers seawater and closed cooling, thermostat and heat exchanger checks, pressure-cap testing, cylinder head gasket leak diagnosis, and exhaust shutter replacement.
• Power steering service covers pump, pulley, cooler, and hose replacement, plus filling, air bleeding, and installation of Priority Valve Kit 79691A1 for twin-engine systems.

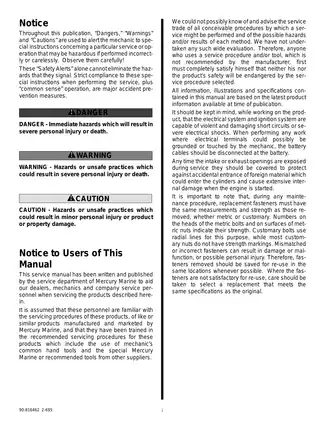

Mercury Marine wrote this manual for dealers, mechanics, and company service personnel trained in its service procedures and familiar with the recommended tools.

Engine Identification and Overhaul

Cylinder head identification matters when selecting overhaul specifications. The 3.0L uses a 2.5L-type head and the 3.0LX uses a 3.0L head. The block code suffix can help identify the engine if its model decal is missing. Machining procedures cover valve guide bore repair, cylinder boring and honing, piston selection, and camshaft gear and bearing replacement.

Engine alignment specifies tool 91-805475A1 or a properly modified 91-57797A3. Forcing the tool or moving the engine with it engaged can damage the gimbal bearing or coupler.

Wiring, Cooling, and Component Service Limits

Electrical drawings cover EST engine wiring, battery-meter instrumentation, and dual-station harnesses with neutral safety switches in one or both controls. Gauge and sender tests address oil pressure, water temperature, fuel level, tachometer operation, and the audio warning system. EST timing uses jumper 91-818812A1. Module testing calls for a J24642 tester or equivalent.

Cooling and maintenance references include seawater flow diagrams, separate draining procedures for seawater and closed-cooled systems, winter layup, recommissioning, and oil priming after overhaul. On closed-cooled engines, the exhaust manifold still uses seawater. Troubleshooting charts distinguish water in the crankcase from water on top of the pistons and separate mechanical causes of overheating from cooling-system faults.

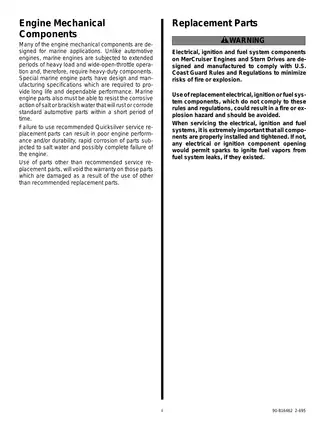

Component service limits matter when ordering parts. The PG260 starter is non-rebuildable, with only its solenoid and drive housing available as replacement components. A failed Carter pump requires assembly replacement. Scraping the MerCarb float-bowl sealing bead can damage it and require bowl replacement.

Fuel Pump Pressure and Carburetor Jetting Examples

The MerCarb tables distinguish 36 mm and 43 mm carburetors by carburetor number and venturi cluster ID. They also cover solid and spring-loaded inlet needles and high-altitude jetting. For example, the 3.0LX specification table lists a 1.60 mm primary jet for carburetor 3310-805924 and a 1.65 mm primary jet for 1389-815397.

The Carter fuel pump specification lists 5¼–6¼ psi at 1,800 rpm as the reference range for the pressure test.

Safety notice — Proper marine engine service requires specialized tools and mechanical expertise. Follow the manual’s precautions for fuel vapors, electrical isolation, and moving machinery, and consult a certified marine technician before performing internal engine work if you lack the necessary training.
