1997 Sabre 1338, 1538, 1546, 15538, 1638 & 1646 Lawn Tractor Technical Manual (TM-GX10131)

This March 1997 John Deere Consumer Products Group technical manual, TM-GX10131, covers Sabre 1338, 1538, 1546, 15538, 1638, and 1646 lawn tractors in the gear and hydrostatic variants listed above.

• Engine work: Briggs & Stratton engine removal and installation, drive-pulley installation, throttle-cable adjustment, and related mounting specifications.

• Electrical diagnosis: Magnetron ignition, cranking, fuel shutoff solenoid, charging, headlight, and safety-interlock tests, supported by wiring diagrams and troubleshooting charts.

• Gear power train: Dana Spicer 4360 transaxle disassembly, shaft and gear inspection, differential repair, clutch/brake adjustment, and shift-linkage service.

• Hydrostatic drive: K55 disassembly, component inspection, reassembly, and bleeding; K51 external component service, transaxle replacement, and linkage adjustments.

• Steering and chassis: Steering gear removal, backlash adjustment, pedestal bushing replacement, front axle removal and installation, and wheel-bearing repair.

• Mower decks: Belt replacement and tensioning, spindle-brake adjustment, deck leveling, lift-linkage service, and complete spindle assembly replacement.

• Service bulletins: Factory guidance on engine surging, contacting mulching blades, under-frame chatter, smoking mower belts, and thrown belts.

This manual is written for experienced technicians handling the tractor’s diagnosis, adjustments, and mechanical repairs.

Briggs & Stratton Engine Coverage

Engine identification includes 28M707, 28N700, and 28Q777 units. The installation procedures address engine-to-frame mounting, ground connections, pulley hardware, and throttle/choke adjustment.

Engine repair scope: Internal engine service requires the separate Briggs & Stratton Single Cylinder 4-Cycle Engines repair manual referenced in this publication. That engine overhaul manual is not included in this PDF.

Electrical Fault Tracing

The Electrical Schematic, Wire Harness, and Ignition Circuit Test Points drawings identify circuits, connectors, and numbered test locations. Diagnostic tables pair test conditions and normal readings with follow-up checks, helping distinguish chassis wiring and safety-interlock faults from engine ignition problems.

Fuel-shutoff-solenoid circuit tests apply to the 16 hp configuration. Battery-load, starter-current, and AC/DC output tests support cranking and charging diagnosis.

Gear and Hydrostatic Transaxle Repair

The gear section includes intermediate-shaft and drive-shaft repair, shim clearances, and differential/axle inspection. Transaxle Component Location and Shift Linkage Component Location drawings support assembly identification. Separate traction-drive belt layouts show the gear and hydrostatic routing.

Gear-ratio and forward/reverse ground-speed tables accompany torque data for engine, transaxle, and mower hardware, plus unified inch and metric torque charts.

K55 coverage extends to the pump, motor, center block, swashplates, and differential, with quick and standard bleed procedures. K51 coverage is limited to external service, adjustments, and transaxle replacement; internal pump and motor overhaul procedures are not included.

The K55 assembly notes warn that incorrectly positioned bypass push pins can break when the case halves are joined.

Steering, Mower Decks, and Service Bulletins

Steering illustrations show pinion/sector alignment and the washers used to control backlash. Pedestal bushing repair calls for an inside puller and slide hammer.

Deck drawings distinguish early and revised assemblies. Belt-routing illustrations and the specified TY15272 deck-leveling gauge support side-to-side and front-to-rear setup.

Spindles are replaced with their pulleys as complete assemblies. The manual warns that adding grease through the factory spindle fitting can damage spindle seals.

Bulletin 96-009 addresses thrown belts on 1338 Gear and 1538 Hydro models. Bulletin 96-010 covers surging on 1538 Hydro, 1546 Gear, and 1646 Hydro models, including oil saturation of the paper air-filter element.

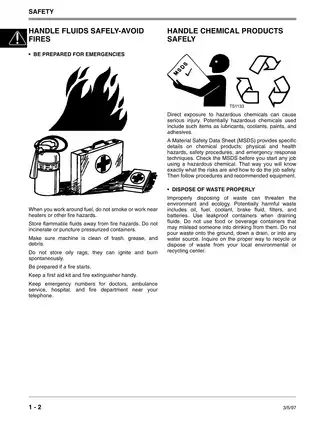

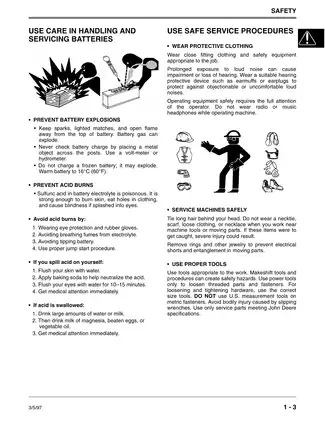

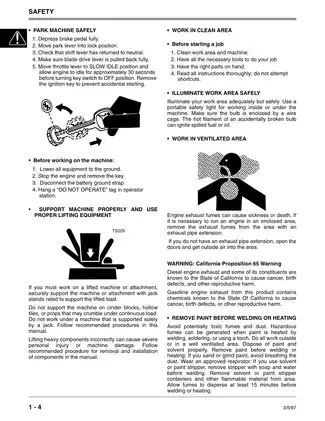

Follow the manual’s isolation and support precautions for mechanical work around rotating blades, tensioned springs, and raised tractor components.

Sample Engine, Electrical, and K55 Service Data

These figures are a small selection from the engine, electrical, and hydrostatic service specifications.

Engine mounting hardware is specified at 32 N·m (24 lb-ft), and the spark-plug gap for the 15 and 16 hp engines is 0.76 mm (0.030 in.).

The ground-circuit ohmmeter test allows a maximum resistance of 0.1 ohm with the ignition switch off.

The K55 reservoir fill is 1.6 L (1.7 U.S. qt) of 10W30 Class CD engine oil, to the bottom of the fill opening.

PDF Search, Navigation, and Page Count

Search and diagram detail: Embedded text supports searching, and PDF bookmarks link to system sections and individual procedures. Wiring diagrams have legible wire colors, circuit codes, and connector labels; zooming and rotating the landscape drawings makes dense areas easier to read.

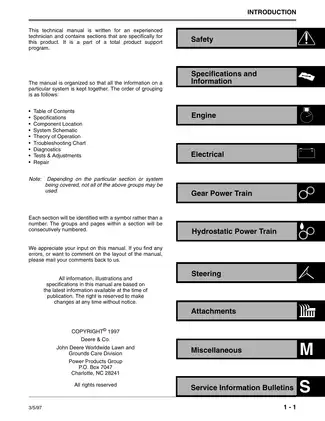

One printable English PDF with 191 pages: 175 pages of cover, front matter, and technical chapters; 12 pages in the Service Information Bulletins section; and 4 index pages. Ten blank, notes, or placeholder pages are already included in this total.
