2000 Sabre 1438GS, 1538HS, 1642G, 1646H, 1846HV, and 2046HV Lawn Tractor Technical Manual (P/N TM1769)

John Deere technical manual TM1769 (03Mar00), replacing the 25May99 edition, covers the 2000 Sabre lawn tractor lineup: 1438GS, 1438HS, 1438G, 1538HS, 1542HS, 1542G, 1542H, 15.538G, 15.538H, 15.542G, 15.542H, 1642G, 1642H, 1642HS, 1642HV, 1646H, 1646HS, 1646HV, 1742GS, 1742HS, 1846HV, 1846HMS, and 2046HV.

• Engine repair: Separate sections for Briggs & Stratton Diamond Plus, Intek single-cylinder, Vanguard V-Twin, and Intek V-Twin engines, including internal inspection and reassembly.

• Fuel and engine diagnosis: Carburetor rebuilding, governor adjustment, fuel shutoff solenoid testing, V-Twin compression comparisons, cylinder-balance testing, and Vanguard oil-pressure testing.

• Gear drive: Dana Spicer transaxle disassembly and assembly, intermediate-shaft repair, drive-belt replacement, and clutch, brake, and shift-linkage adjustments.

• Hydrostatic drive: K51/K51E inspection and assembly, K55 internal repair, traction-drive diagnosis, brake and linkage adjustments, and K55 transaxle bleeding.

• Electrical troubleshooting: Standard and RIO wiring, circuit schematics, connector identification, charging tests, safety-interlock diagnosis, and starter-motor repair.

• Steering and mower decks: Pinion-and-sector steering service, pedestal-bushing replacement, deck leveling, belt-tension adjustment, spindle-brake checks, and spindle-assembly replacement.

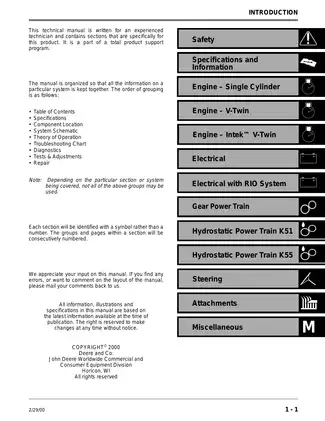

This manual is written for experienced technicians; its internal engine and transaxle procedures assume workshop skills and the specified measuring and test equipment.

Engine Diagnosis and Internal Repair

The engine sections cover cylinder-head removal, valve inspection and refacing, piston and connecting-rod inspection, cylinder-bore honing and resizing, and crankshaft and bearing work. Torque tables, tightening-pattern illustrations, and standard-versus-wear-limit data accompany the repair procedures.

V-Twin fault isolation: Compression comparisons and cylinder-balance tests help identify a weak cylinder when an engine runs rough, misses, or lacks power. The manual specifies tools such as the JDM59 compression gauge and JTO3502 cylinder leak tester, with illustrations showing the test arrangements.

Gear and Hydrostatic Power Trains

Exploded component views and traction-drive drawings support gear-transaxle teardown, differential inspection, and linkage adjustment. The hydrostatic sections extend into the pump, motor, center block, swashplates, axle shafts, and case assemblies.

K51/K51E repair limits: Internal procedures are designated for out-of-warranty repairs. The section also directs complete transaxle replacement when worn or damaged internal components are found. The K55 section provides component-replacement guidance, assembly procedures, and both quick and installed-transaxle bleeding procedures.

The K55 assembly instructions warn that incorrect bypass-pin and actuator positioning can break the push pins when the case halves are joined. In the K51/K51E section, incorrect idler-shaft seating can damage the transaxle case during assembly.

Electrical Fault Tracing and RIO Interlocks

Separate electrical sections distinguish standard wiring from the Reverse Implement Option (RIO). Diagnostic tables pair test locations with normal results and follow-up checks, helping trace starting, ignition, charging, and PTO-interlock faults through the relevant circuit.

The Electrical Schematic and W1 Standard Electrical Schematic show the complete circuit arrangements. The W1 Wiring Harness adds wire numbers, colors, and connector views.

More focused drawings include the Cranking Circuit Schematic, Charging Circuit Electrical Schematic, and PTO with RIO Circuit Operation. Related tests cover switches, diodes, relays, grounds, the starting solenoid, and starter current draw.

Steering, Chassis and Mower Decks

Steering procedures distinguish the 2046HV drag-link arrangement from the other tractors. Coverage includes pedestal bushings, steering backlash, front-wheel bearings, front-axle service, and fuel-tank and dash-panel removal.

Deck service covers the 38-, 42-, and 46-inch configurations, including suspension adjustment, belt routing, spindle brakes, and side-to-side and front-to-rear leveling. The spindle and pulley are replaced as a complete assembly; the manual identifies the spindles as nonserviceable.

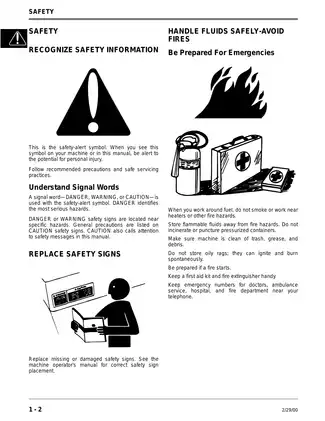

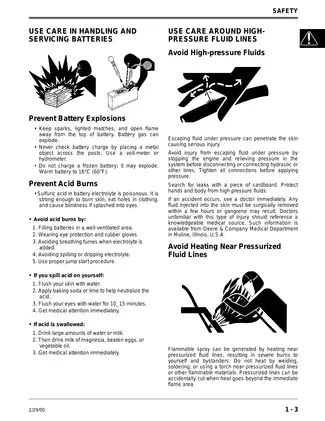

Blade and drive-system work requires the manual’s ignition-isolation, stopped-component, and machine-support precautions.

Examples of Engine Inspection and Assembly Data

For the 16 HP Vanguard V-Twin, the cylinder-bore standard dimension is 68–68.025 mm. The single-cylinder repair tables identify 31.80 mm as the connecting-rod crankpin bearing wear limit, rather than a standard new-part dimension.

The single-cylinder engine section also specifies a flywheel-nut torque of 115.6 N·m. These examples accompany the engine-specific inspection limits and assembly specifications.

PDF Navigation and File Contents

Text search and diagram navigation: The PDF contains searchable text and embedded bookmarks for sections and individual procedures. Small wire codes and connector labels in the checked schematics are readable when enlarged; additional split-page diagram views are included.

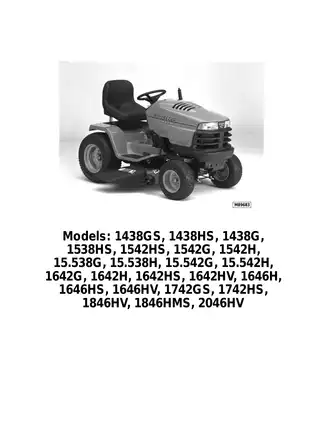

Delivered as one English-language, printable, 416-page PDF. The total includes the technical-manual cover, model-identification page, and four additional enlarged detail pages for the RIO electrical schematic and main wiring harness.
