Pontiac Vibe 2005–2010 Service & Repair Manual Collection

Use the service procedures for workshop work and the owner's manual for vehicle operation and scheduled maintenance. The wiring publications support circuit tracing alongside the component and connector views.

Coverage varies by document; match the document header, engine code and transmission type to your vehicle. The general GM code and relearn sheets cover multiple vehicles; the relearn reference is not a Vibe-specific programming manual. The supplied MTN manual-transmission file is damaged and cannot be opened.

PDF Search, Bookmarks and Wiring Detail

Search and diagram access: Body text is searchable in 60 PDFs. Another 43 schematic sheets have searchable headers but image-based circuit labels; 46 PDFs have no text search. Bookmarks are present in 52 files, including the owner's manual, although many service-file bookmark labels are numbered filenames. Small wiring labels in the checked diagrams require zooming.

ZIP download containing 149 usable, printable PDFs with 8,560 pages. This total includes one added credit page in the LNK document, the separate one-page vehicle-history sheet, and four notes pages in the owner's manual.

Engine Overhaul, Drivetrain Service and Circuit Diagnosis

The following selected coverage highlights outline the workshop content rather than reproduce the full contents list. Other included subjects range from liftgate-latch diagnosis to sunroof initialization.

• Engine diagnosis: Misfire and engine-noise symptom charts, compression and cylinder-leakage tests, oil-consumption diagnosis, and oil-pressure evaluation.

• Internal engine repair: Step-by-step cylinder-head, timing-chain, piston, crankshaft and oil-pump procedures, with bearing-selection charts and component inspection limits.

• Transmission and driveline: Automatic and manual transmission disassembly and assembly, clutch service, differential bearing adjustment, and separate transfer-case references.

• Brakes and suspension: ABS fault diagnosis, hydraulic brake bleeding, caliper overhaul, rotor inspection, wheel-bearing replacement, and variant-specific rear-suspension procedures.

• Fuel, cooling and HVAC: Fuel-pump and injector replacement, EVAP component service, cooling-system leak testing, radiator replacement, and A/C performance diagnosis and component replacement.

• Electrical and body systems: Wiring diagrams, connector views, ground distribution, starter and charging-system diagnosis, power-door fault tracing, and restraint-system service.

• Calibration and registration: Steering-angle initialization, steering-shaft torque-sensor calibration, tire-pressure sensor learning, and immobilizer key registration in the relevant sections.

The workshop sections suit technicians and experienced DIY owners familiar with mechanical inspection and electrical testing; internal overhaul and calibration work calls for the specified measuring tools and diagnostic equipment.

Working on internal engine components involves substantial risks. Always ensure you have the proper tools, training, and equipment to safely handle heavy assemblies and pressurized fluid systems before beginning any teardown or diagnostic work.

Mechanical Diagnosis and Engine Rebuilding

The mechanical symptom charts help distinguish possible internal engine faults before teardown. Compression and leakdown information connects low cylinder pressure with valve, ring, bore and head-gasket conditions rather than treating every misfire as an ignition problem.

Valve-train differences: The LNK section describes adjusting shims with J 45785 tooling; the LV6 section uses selective-thickness lifter replacement with camshaft removal. The LAX material adds balance-shaft inspection and oil-pump drive-chain work.

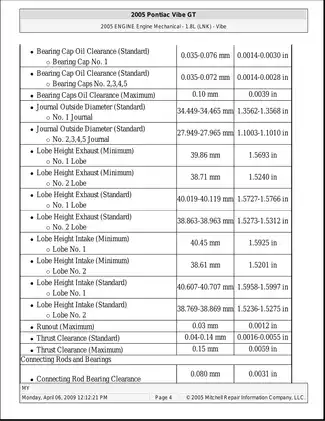

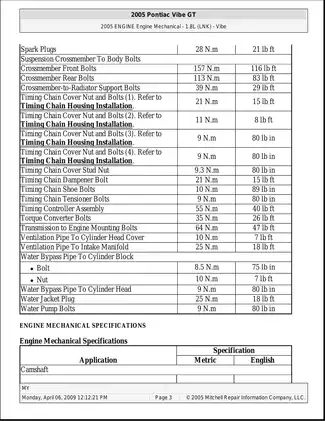

Intake and exhaust manifold views, valve-assembly drawings, timing-chain and housing views, and engine-mount illustrations accompany the procedures. Fastener tables cover the crankshaft main caps, connecting rods and cylinder head, while the sealant and lubricant tables identify materials for sensors, gaskets and housings.

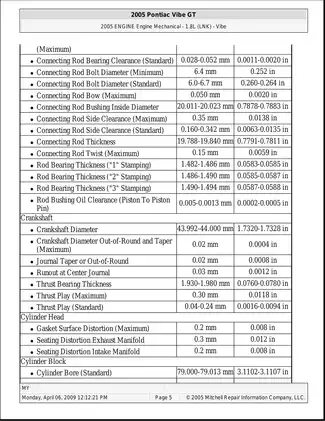

Bearing-selection charts match stamped crankshaft and cylinder-block markings to bearing grades. The manual warns that stamping connecting rods or caps near their bearing bores can distort component geometry.

Transmission, Driveline and Steering Variants

Separate overhaul material covers MU4/MU5 automatics and the MK5 manual transmission. The later service extracts distinguish MVA/MVB four-speed and MVD five-speed automatics from MVC/MVE five-speed manuals, with separate on-vehicle and bench-repair files.

Earlier AWD driveline sections include transfer-case overhaul and rear drive-axle service. The later Toyota MF1A transfer-case files provide specifications and disassembled views. Rear-suspension procedures distinguish AWD, GT and other configurations, with separate FWD and AWD steering-gear procedures.

The earlier hydraulic-steering chapter covers system testing, pump repair and bleeding; later extracts cover electric power steering and torque-sensor calibration.

Electrical Tests and System-Specific Diagrams

Examples include Engine Performance Circuit, Ground Distribution Circuit, Electronic Throttle Controls, Fuel Pump and Fuel Injectors, and SIR — SDM, Indicators and Sensors. Harness-routing and connector views help relate circuit connections to the components being tested.

ABS and restraint sections pair DTC information with diagnostic charts and component procedures. The later steering and tire-pressure sections also describe the initialization or registration required after relevant component replacement.

Oil-Pump Clearance Examples

For the 1.8L LNK oil pump, standard housing-to-gear-set side clearance is 0.030–0.080 mm, while standard outer-to-inner rotor tip clearance is 0.060–0.180 mm.
