2002 John Deere Z-Trak 737 and 757 Mid-Mount Zero-Turn Mower Technical Manual (P/N TM2003)

• Coverage and document identity: John Deere Technical Manual TM2003 (JUN03), North American version, supplied as a 282-page PDF for the Mid-Mount Z-Trak 737 and 757. Coverage includes Kawasaki FH680D and FH721D V-twin engines, 54- and 60-inch mower decks, and the optional MCS blower assembly.
• Engine diagnosis and internal repair: Covers hard-start, low-power, erratic-running, oil-consumption, and fuel-consumption diagnostics; compression, oil-pressure, crankcase-vacuum, fuel-flow, spark, and valve-clearance checks; plus carburetor, cylinder-head, valve, camshaft, piston, connecting-rod, crankshaft, cylinder-block, and starting-motor service.
• Hydrostatic power train: Identifies the Hydro-Gear BDP10A pumps and Parker PF15 wheel motors, with system bleeding, motion-control and neutral adjustment, pump flow testing, pump removal and internal repair, and wheel-motor disassembly, inspection, and assembly.
• Electrical system: Includes the full machine schematic, W1-W7 harness information, circuit-by-circuit fault isolation for cranking, run, charging, PTO, hour meter, oil-pressure warning, and optional headlights, along with switch, relay, diode, stator, ignition-coil, and charging-system tests.
• Mower, brake, and chassis work: Details deck removal, belt and tensioner service, PTO clutch diagnosis, deck leveling, blade and spindle repair, jacksheave service, optional MCS blower repair, dual-band park-brake and linkage work, height-of-cut assembly service, caster repair, and drive-wheel removal.
• Factory data and tools: Provides component-specific torque tables, capacities and lubricant data, hydraulic flow specifications, electrical test values, wear limits, clearances, adjustment data, service kits, and part-numbered special-tool callouts.

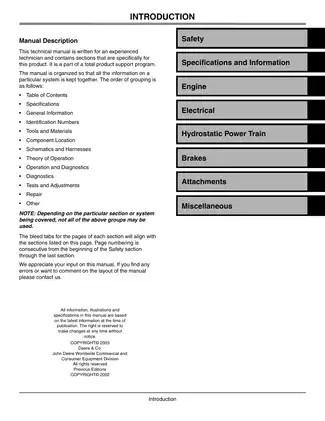

John Deere states that this manual is written for an experienced technician. Its repair depth and use of electrical meters, compression and pressure gauges, a hydraulic flow meter, presses, measuring tools, and lifting/support equipment assume established shop skills. This is a repair and diagnostic publication, not a basic operating guide.

Engine and Electrical Diagnostic Depth

The engine chapters explain lubrication, cooling, crankcase-breather, automatic-compression-release, carburetor, and ignition operation before moving into symptom-led testing and internal repair. The FH721D-only oil cooler is identified. The carburetor material also flags CARB/EPA restrictions on slow-idle mixture adjustment and directs high-altitude jet installation to an authorized repair facility.

Electrical diagnosis is organized around the actual safety-interlock logic. Separate operating and diagnostic sections trace the operator-on-seat and operator-off-seat run circuits, control-lever switches, brake switch, seat switch, PTO relay, and magneto-stop relay. The repair section also covers electric PTO clutch removal and break-in and METRI-PACK connector terminal service.

Diagrams, Tools, and Specifications

Named visual references include the Electrical Schematic, W1 Main Wiring Harness, W2 Engine Wiring Harness, Hydraulic System Hose Routing, Hydraulic System Schematic, and Spindle Cross Section. These are backed by component-location views, circuit diagnostic charts, hydraulic symbols, and exploded repair illustrations.

Tool callouts identify the JT07270 digital pulse tachometer, JDM-59 compression gauge, D-05351ST spark tester, Hydro Gear 70661 bidirectional pressure/flow meter, TY15272 blade-height gauge, and JDG1526 height-of-cut adjustment tool. The specifications support the test and setup work throughout the manual rather than presenting only general maintenance data.

Repair Cautions and Scope

The hydrostatic pump section warns that installing the marked charge-pump cover in the wrong orientation makes the pump rotate in the opposite direction; forcing the end cover can damage both the cover and the cylinder-block sealing surfaces. In the deck chapter, clamping the rounded blade end of the spindle shaft in a vise can damage the shaft and lead to improper blade operation.

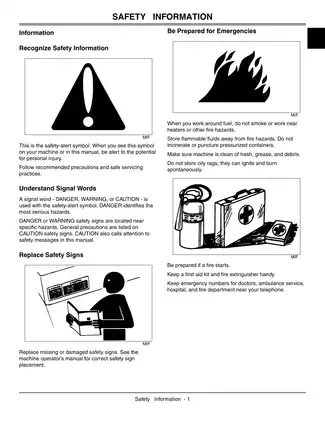

This is the North American version of the factory technical manual. Because repair procedures involve high-pressure hydraulic oil, supported machine and deck components, batteries, and rotating PTO/blade hardware, follow the manual's pressure-relief, electrical-isolation, lifting, and blade-handling precautions before service.
