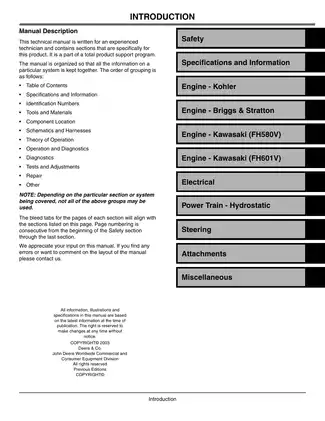

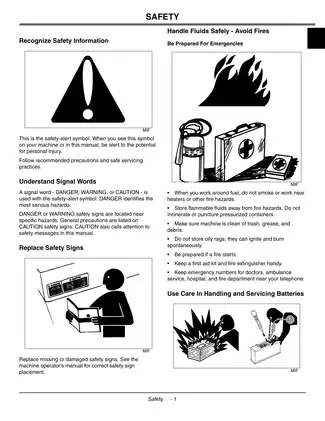

John Deere GT225, GT235, GT235E, GT245 garden tractor manual - TM1756

To make it easier for you to choose the right manual, we have compiled various information for you below, such as model designations, types, and production years. The manual is relevant for the listed models: GT225, GT235, GT235E, GT245, GT200 Series / Deere & Company / John Deere built in Horicon, Wisconsin, USA. John Deere GT225 (Year: 2003-2005) John Deere GT235 (Year: 1999-2005) John Deere GT235E (Year: 2002-2005) John Deere GT245 (Year: 2002-2005) Serial numbers: John Deere GT225: MOG225B010001 - MOG225B040000 John Deere GT235: MOG235B010001 - MOG235B040000 John Deere GT235E: MOG235E010001 - MOG235E040000 John Deere GT245: MOG245B010001 - MOG245B040000 Engine GT225 specs: Kohler CV15S, gasoline, 1-cylinder, air-cooled, 426 cc, 26 ci, 3.55x2.64 inches, 90 x 67 mm, 15 hp, 11.2 kW. Engine GT225 specs: Kohler CV460S, gasoline, 1-cylinder, air-cooled, vertical-shaft, 458 cc, 28 ci, 3.43x3.03 inches, 87 x 77 mm, 16 hp, 11.9 kW. Engine GT235 specs: Kawasaki FH580V, gasoline, 2-cylinder, air-cooled, vertical-shaft, V-Twin, 570 cc, 34.8 ci, 2.80x2.75 inches, 71 x 70 mm, 18 hp, 13.4 kW. Engine GT235 specs: Briggs & Stratton 350777, gasoline, 2-cylinder, air-cooled, vertical-shaft, V-Twin, ..., see above. Engine GT235E specs: see above. Engine GT245 specs: Kawasaki FH601V, gasoline, 2-cylinder, air-cooled, vertical-shaft, V-Twin, 675 cc, 41.2 ci, Bore/Stroke 2.96x2.99 inches = 75 x 76 mm, 20 hp, 14.9 kW Starter volts: 2 V Publication Number: TM-1756 Production year(s): 1999, 2000, 2001, 2002, 2003, 2004, 2005. Serial numbers or parts numbers: 060000, 090000 Pages: 562 Manual Language: English # ³ "Download the Comprehensive John Deere Garden Tractor Repair Manual for GT225, GT235, GT235E, GT245 Models" Unlock the secrets of garden tractor maintenance and repairs with the invaluable John Deere Garden Tractor Repair Manual, specifically designed for the GT225, GT235, GT235E, and GT245 models. This downloadable manual is a treasure trove of engine specifications, technical data, maintenance intervals, tuning tips, and much more. Whether you're a seasoned garden tractor enthusiast or a proud owner looking to keep your machine in optimal condition, this manual will equip you with the knowledge and instructions needed to tackle any repair or maintenance task. Discover the strengths and weaknesses of these versatile garden tractors, learn about common issues and their solutions, explore compatible accessories and attachments, and find out which repairs and parts may require your attention. Click on the green button to access the PDF version of the John Deere Garden Tractor repair manual and embark on a journey of garden tractor mastery. Engine specifications/technical data: • The GT225, GT235, GT235E, and GT245 garden tractors are equipped with a Kawasaki FH601V gasoline engine. • The engine has a displacement of 603 cc (36.8 cubic inches). • It features a V-twin design with two cylinders. • The engine has an overhead valve (OHV) configuration for efficient combustion. • The GT225 and GT235 models have a maximum power output of 16 horsepower. • The GT235E and GT245 models have a maximum power output of 18 horsepower. • The engine utilizes an air cooling system to maintain optimal operating temperatures. • These garden tractors feature an electric starter for easy ignition. • The engine is equipped with a full-pressure lubrication system to ensure proper lubrication of engine components. • The fuel tank capacity for these models is approximately 4.2 gallons. • The engine is equipped with a dual element air cleaner to prevent dust and debris from entering the engine. • The recommended oil type for these models is 10W-30 or 10W-40. • The transmission is a hydrostatic type, allowing for smooth and effortless operation. • The cutting width for the mower decks on these models ranges from 42 to 54 inches. • The GT235, GT235E, and GT245 models feature cruise control for maintaining a consistent speed while mowing. • The garden tractors utilize a 12-volt battery for electrical power. • The GT225, GT235, GT235E, and GT245 models feature a 2-wheel drive configuration. • The maximum forward speed of these garden tractors is approximately 5.5 miles per hour. • The minimum turning radius for these models is approximately 16 inches. • The total weight of these garden tractors ranges from approximately 550 to 620 pounds. Facts and details: - The GT225, GT235, GT235E, and GT245 garden tractors were part of John Deere's GT200 series. - These models were designed for residential use and offered a combination of power and versatility. - The GT235E model featured an electric PTO (power take-off) for engaging mower deck blades effortlessly. - These garden tractors featured durable construction and high-quality components for long-lasting performance. - The GT235, GT235E, and GT245 models were equipped with larger engines, offering increased power and performance compared to the GT225. - The comfortable operator seat provided support during long hours of operation. - The GT235, GT235E, and GT245 models featured hydrostatic power steering for easy maneuverability. - These garden tractors offered a wide range of attachments and accessories, including front blades, snow blowers, and baggers. - The GT235E model featured an electronic fuel gauge for convenient monitoring of fuel levels. - These models were equipped with headlights, allowing for mowing and other tasks in low-light conditions. - The GT235, GT235E, and GT245 models featured a heavy-duty frame for increased stability and durability. - These garden tractors offered adjustable cutting heights to suit various mowing conditions. - The GT235, GT235E, and GT245 models featured a convenient cup holder for easy access to beverages during operation. - The GT235, GT235E, and GT245 models offered optional power steering for enhanced maneuverability. Maintenance intervals, general maintenance tips, and common issues/solutions: ► Regular maintenance intervals for these garden tractors include engine oil and filter changes every 50 hours or annually, whichever comes first. ► Clean or replace the air filter every 100 hours or annually to ensure optimal engine performance. ► Check and adjust tire pressure regularly for proper traction and even cutting. ► Inspect and tighten all bolts and fasteners to ensure they are secure. ► Lubricate all grease fittings every 25 hours or annually. ► Check and adjust the mower deck belt tension regularly to prevent slipping and ensure proper cutting performance. ► Keep the mower blades sharp for clean and efficient cutting. Replace them if they are worn or damaged. ► Check the battery regularly and clean the terminals to prevent corrosion. ► Keep the fuel system clean by using high-quality fuel and periodically using a fuel system cleaner. ► Common issues with these garden tractors may include starting problems due to a weak battery. Ensure the battery is charged and in good condition. ► If the engine runs rough or stalls, check the fuel filter and fuel lines for clogs or restrictions. Replace them if necessary. ► In case of steering issues, check the steering linkage and tie rods for wear or damage. Replace any worn-out components. ► If the mower blades do not engage or disengage properly, check the PTO switch and wiring connections for faults. Replace faulty components as needed. ► If the mower deck cuts unevenly, check the deck level and adjust as necessary. Sharpen or replace the blades if they are dull or damaged. Popular tuning tips or modifications: * Install a high-flow air filter to increase airflow to the engine, potentially improving performance. * Upgrade to a performance exhaust system to enhance engine efficiency and add a deeper exhaust note. * Consider installing a larger diameter cutting blade for the mower deck to increase cutting width and productivity. * Upgrade the tires to a more aggressive tread pattern for improved traction, especially in challenging terrain. * Add auxiliary lighting, such as LED light bars or additional work lights, for enhanced visibility during nighttime operations. * Install a rear hitch or weight bracket to enable the use of rear-mounted attachments and improve traction. * Consider adding a mulching kit to the mower deck to finely chop grass clippings, promoting a healthier lawn. Accessories and attachments as described in the official manual: ■ Front blade for snow clearing or leveling tasks. ■ Rear bagger for collecting grass clippings. ■ Rear-mounted spreader for applying seed, fertilizer, or other granular materials. ■ Front bumper for added protection and durability. ■ Snow blower attachment for efficient snow removal. ■ Front thatcher attachment for dethatching lawns. ■ Sun canopy for protection from the sun while operating the tractor. ■ Rear-mounted sprayer for applying liquid herbicides or insecticides. ■ Rear-mounted tiller for cultivating garden beds. ■ Rear blade attachment for grading, leveling, or moving loose materials. ■ Lawn roller for creating an even and smooth lawn surface. ■ Front-end loader for handling heavy materials, such as gravel or soil. ■ Weight bracket for adding additional weight to improve traction and stability. ■ Wheel weights for increased traction and stability on slopes or challenging terrain. Owner reviews and opinions: Strengths: ☺ Reliable and durable construction. ☺ Powerful engines provide ample performance for various tasks. ☺ Versatile with a wide range of compatible attachments and accessories. ☺ Comfortable and ergonomic operator seating. ☺ Easy to maneuver, especially with optional power steering. ☺ High-quality cut with the mower deck. Weaknesses: ☻ Some owners have reported issues with the electric PTO clutch. ☻ The headlights may be insufficient for optimal visibility in dark conditions. ☻ Limited fuel capacity for prolonged use without refueling. ☻ Some components, such as belts and blades, may wear out faster than expected with heavy or frequent use. Repairs that need to be carried out most frequently: → Electric PTO clutch replacement. → Battery replacement. → Mower deck belt replacement. → Fuel filter replacement. → Steering linkage and tie rod replacement. → Blade sharpening or replacement. → Starter motor replacement. → Fuel line and fuel pump replacement. → Muffler replacement. → Ignition switch replacement. → Transmission drive belt replacement. → Tire replacement. Access the comprehensive PDF repair manual for John Deere garden tractors by clicking the green button and acquire expert knowledge for fixing your equipment. Upon payment, your official John Deere OEM shop manual and parts catalog download link will be instantly available on the checkout page. Additionally, we will promptly email you a payment confirmation. §

Price: 27.99 USD

↓ Instant Download: Paypal

Lifetime Guarantee
