1996 Toyota T100 Truck Factory Service Manual (P/N RM449U)

This Toyota factory service manual, publication RM449U, covers the 1996 T100 with 3RZ-FE and 5VZ-FE engines, including the documented 2WD and 4WD configurations. It combines maintenance, system diagnosis, and mechanical repair procedures.

• Engine repair: Engine removal, cylinder-head and cylinder-block work, 3RZ-FE timing-chain service, 5VZ-FE timing-belt replacement, valve-clearance adjustment, and compression testing.

• Fuel and emissions: MFI and SFI diagnosis, fuel-pump and injector testing, throttle-body service, and checks of the EVAP, EGR, and PCV systems.

• Drivetrain: Clutch repair, W59/R150/R150F manual-transmission disassembly, transfer-case overhaul, propeller-shaft service, and A340E/A340F automatic-transmission diagnosis and on-vehicle repairs.

• Suspension, brakes, and steering: Wheel alignment, axle and differential repair, brake bleeding, ABS troubleshooting, power-steering pressure testing, and steering-gear overhaul.

• Electrical diagnosis: Diagnostic trouble code charts, connector views, wiring diagrams, ignition and charging tests, starter service, cruise-control diagnosis, and supplemental restraint system checks.

• Body and air conditioning: Lighting and accessory circuits, door and glass service, instrument-panel removal, refrigerant-system testing, and compressor, evaporator, and heater-unit procedures.

The manual is suited to experienced technicians who understand automotive systems and electrical testing; its diagnostic procedures call for scan tools, measuring equipment, and Toyota special service tools.

Engine Mechanical, Cooling, and Lubrication

Separate engine chapters detail cylinder-head disassembly, piston and crankshaft inspection, bearing selection, and reassembly specifications. The timing sections distinguish the 3RZ-FE chain and balance-shaft arrangements from the 5VZ-FE belt drive. Valve-adjustment coverage includes shim selection and the associated special tools.

Camshaft procedures explain sub-gear spring loading and service-bolt use. They also warn that uneven camshaft removal can damage the cylinder-head thrust area, potentially causing the camshaft to seize or break.

Cooling and lubrication chapters cover water-pump replacement, thermostat inspection, radiator work, oil-pump inspection, and the 5VZ-FE oil cooler.

Fuel-System and Electrical Fault Diagnosis

Diagnostic trouble code charts and problem-symptom tables lead into circuit inspections, ECM terminal checks, and component tests. These connections help distinguish a sensor fault from a wiring or control-circuit problem before parts are replaced.

Illustrated references include injector signal waveforms, ABS control-motor-relay wiring, the stop-light switch circuit used for torque-converter lock-up control, and emissions vacuum-routing schematics. Connector views identify the terminals used in the corresponding tests.

MFI and SFI sections add fuel-pressure, injector-delivery, idle-air-control, and airflow-meter checks. Preparation lists identify equipment such as EFI fuel-pressure gauge 09268-45012, while engine diagnostics describe OBD II scan-tool and Toyota hand-held tester use.

Transmission and Transfer-Case Work

The manual-transmission chapters extend to input and output shafts, synchronizers, counter gears, bearings, and oil seals. Transfer-case procedures cover the oil pump, driven sprocket, output shafts, and planetary gear assembly.

For the A340E and A340F automatics, the manual provides road, stall, time-lag, and hydraulic tests, together with valve-body removal, shift-solenoid service, and transmission removal and installation.

Automatic-transmission overhaul scope: Internal clutch, brake, and planetary-unit repairs are referred to separate Toyota transmission repair manuals. Those publications are not included in this PDF.

Chassis, Body Electrical, and Climate Control

Suspension and axle coverage separates 2WD and 4WD assemblies and includes front differential work, the A.D.D. control system, rear axle shafts, and leaf springs. Alignment tables distinguish standard and extra cabs, tire configurations, and loaded versus unloaded measuring conditions.

Brake chapters cover front calipers, rear drums, the load-sensing proportioning and bypass valve, and ABS components. Steering sections include pump inspection, system bleeding, and separate steering-gear procedures.

Body electrical tests address lights, wipers, windows, locks, and related switches. Air-conditioning coverage extends to manifold-gauge diagnosis, refrigerant leak checks, compressor magnetic-clutch inspection, and heater-control cable adjustment.

Working on these critical automotive components carries inherent risks; always follow standard shop safety practices and verify your technical capability before handling high-tension electrical or restraint systems.

A Preview of Valve-Clearance and Thermostat Test Data

For the 3RZ-FE, cold valve-clearance specifications are 0.15–0.25 mm at the intake and 0.25–0.35 mm at the exhaust. These values accompany the inspection and shim-selection procedures.

The 5VZ-FE thermostat inspection specifies an opening temperature of 80–84°C and a valve lift of at least 8.5 mm at 95°C. The procedure distinguishes the opening-temperature check from the lift measurement.

Searchable Text, Chapter Bookmarks, and PDF Contents

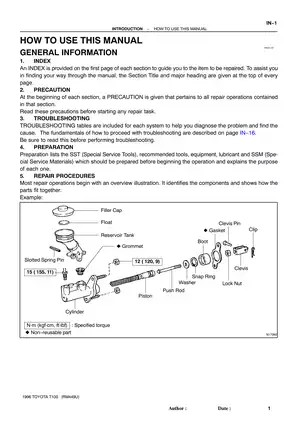

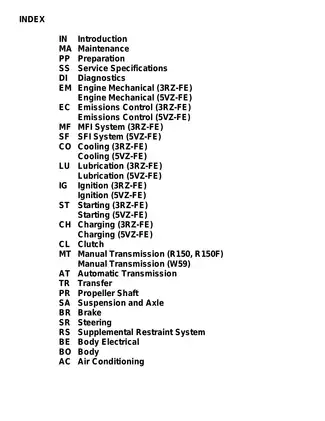

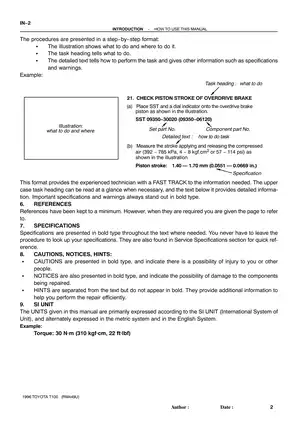

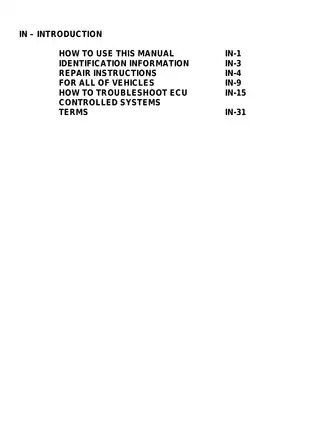

Text search and diagram detail: The manual has searchable text and 35 embedded bookmarks for the index and major sections. Some wiring-diagram labels are embedded in images and cannot be found through text search. Small wiring labels require zooming for comfortable reading.

One printable, English-language PDF contains 2,062 pages, including one cover page, one main index page, and 35 section-index pages.
