Jeep Wrangler TJ 1998 Service & Repair Manual Set (P/N 81-370-8148)

The service sections provide mechanical repair information, while the international supplement adds market-specific electrical and equipment details. Equipment operation is addressed in the Owner’s Manual, and operating theory belongs to separate service-training material.

Diagnostic coverage limits: Complete powertrain DTC fault isolation, ABS scan-tool testing, airbag diagnosis and immobilizer initialization require the applicable Chrysler diagnostic-procedures manuals and DRB/MDS equipment. Those separate diagnostic manuals are not included.

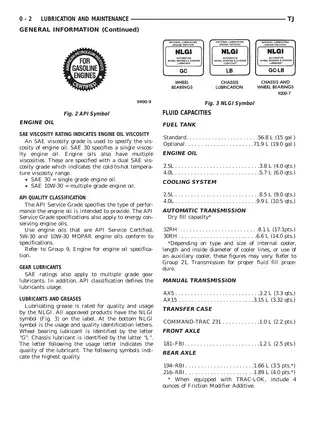

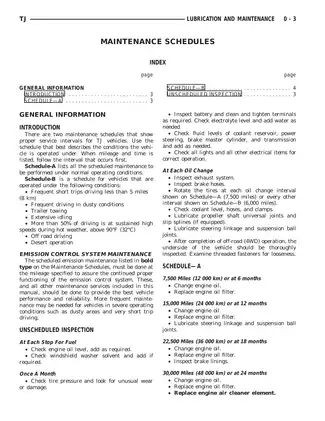

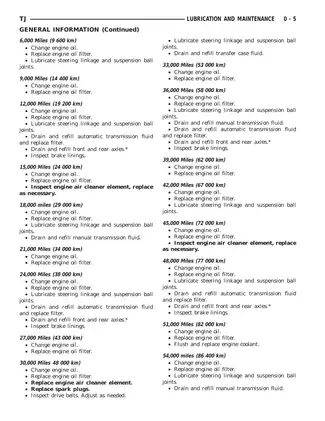

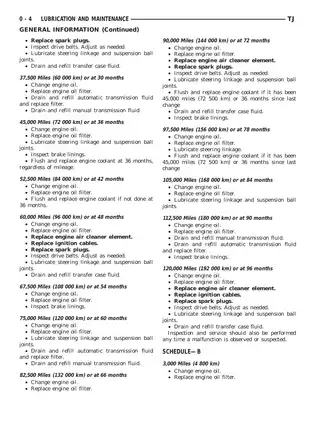

Searchable Section PDFs and Wiring Detail

Text search, bookmarks and diagrams: The section PDFs contain searchable text and embedded bookmarks. The separate cover/foreword file has searchable text but no bookmarks. Small wiring codes and connector-pin labels benefit from zooming.

The ZIP contains 38 printable English-language PDFs totaling 1,198 pages, including three cover, foreword and group-locator pages and 26 blank pages already counted in the total.

Engine, Drivetrain and Vehicle-System Repair

The following selected topics outline the repair coverage. Additional sections address tire and wheel runout, exhaust-system service and intake-manifold removal.

• Engine repair: Mechanical diagnosis, engine removal and step-by-step internal repair procedures for the four-cylinder and six-cylinder engines.

• Fuel and engine controls: Fuel-pump and injector diagnosis, fuel-system pressure release, component replacement, PCM inputs and outputs, and emissions-system checks.

• Transmission and transfer case: AX5 and AX15 manual transmission overhaul, 30RH/32RH automatic transmission service, and NV231 Command-Trac disassembly and assembly.

• Axles and driveline: Internal service for the 181 FBI front, 194 RBI rear and 216 RBI rear axles, including standard and Trac-Lok differentials.

• Brakes and steering: Base brakes and all-wheel ABS, manual and power steering gears, power-steering pump testing, suspension service and wheel alignment.

• Electrical troubleshooting: System wiring diagrams, connector pin-outs, power and ground distribution, and separate LHD/RHD connector, ground and splice-location views.

• Cooling system: Leak and pressure testing, coolant circulation checks, water-pump and thermostat replacement, radiator service and accessory-drive belt diagnosis.

Chrysler prepared this material for professional automotive technicians engaged in daily repair work; the procedures assume service knowledge and appropriate shop equipment.

Engine Diagnosis and Internal Service

Compression and combustion-leakage tests support head-gasket, intake-leak and cylinder-sealing diagnosis. Oil-pressure and leakage checks provide further mechanical fault-finding procedures.

Internal repair sections cover cylinder heads, valves, camshafts, timing chains and sprockets, crankshafts, pistons and rings, oil pumps, seals and bearing selection. Inspection limits, clearances, lubrication diagrams, torque tables and special-tool listings support disassembly, fitting and reassembly work.

Fuel Delivery and Emissions Diagnosis

Pump pressure, capacity, amperage and leak-down tests address different aspects of fuel delivery. Component procedures cover the tank, pump module, filter/regulator, rails, injectors, lines and quick-connect fittings.

The OBD material provides DTC tables, monitor descriptions, state-display and circuit-actuation modes, and EVAP-system information. The international fuel section distinguishes leaded-fuel vehicles, which do not use oxygen sensors.

Transmission, Transfer Case and Clutch

The manual-transmission sections extend through seal replacement, geartrain and shift-mechanism teardown, inspection and reassembly, with diagnosis for hard shifting and transmission noise.

Automatic-transmission coverage adds road and stall tests, hydraulic-pressure checks, clutch-and-band air tests and cooler flushing. Torque-converter, valve-body, internal clutch and servo procedures are accompanied by band and cable adjustments and hydraulic schematics.

NV231 procedures include component inspection and shift-linkage adjustment. The clutch section covers the flywheel, disc, cover, release bearing and pilot bearing; its hydraulic master cylinder, slave cylinder and connecting line are serviced as a sealed assembly.

Axle Setup and Chassis Work

Driveline-angle and vibration checks lead into pinion-depth setting, bearing preload, ring-gear backlash and gear-tooth contact-pattern analysis. Factory tools include housing spreader W-129-B, pinion-yoke holder 6958 and suspension-bushing receiver 7932-1 (J-35581-1).

The 194 RBI pinion instructions warn that excessive tightening can damage the collapsible spacer or bearings; backing off the nut does not correct excessive preload.

Brake procedures include caliper and wheel-cylinder service, rotor and drum inspection, and conventional and scan-tool-assisted ABS bleeding. Suspension and steering sections cover coil springs, control arms, track bars, hub bearings, steering linkage and gear adjustments.

Electrical, Body and HVAC Service

Named wiring groups include Power Distribution, Fuel/Ignition Systems, Transmission Control System, All Wheel Anti-Lock Brakes, Airbag System and Air Conditioning-Heater. Connector pin-outs and illustrated connector, ground and splice locations make the wiring section useful for circuit repair rather than schematic reading alone.

Separate chapters cover battery, starting and charging diagnosis, ignition and sensors, the instrument panel, lamps, wipers, speed control, airbag components and Smart Key Immobilizer transponder programming. The airbag section explains how an off-center clockspring can fail during use.

Body procedures cover full and half doors, hard and soft tops, the windshield frame, stationary glass, seats, tailgate, bumpers and adjustment work. HVAC coverage includes performance diagnosis, leak checking, refrigerant recovery, evacuation and charging, compressor and clutch work, heater-core service and vacuum-control diagnosis.

Fuel, brake, airbag, refrigerant and under-vehicle work involves pressure, deployment, chemical and lifting hazards, so use the required safety equipment and follow the factory precautions for each system.

Compression-Test Specification Preview

For the 2.5L engine, the cylinder-compression specification is 827–1,034 kPa (120–150 psi), with a maximum difference of 206 kPa (30 psi) between cylinders. These figures accompany the compression and combustion-leakage tests used to investigate cylinder-sealing problems.
