Mazda 5 2007 Service Collection & Owner’s Manual (P/N 9999-95-005C-07)

The repair articles cover workshop diagnosis and mechanical repairs, while the technical guide explains system construction and operation. The owner’s handbook and navigation instructions address vehicle use, maintenance and operating controls.

Supplemental application limits: The additional Mazda5 factory documents contain red exclusions and revision notes that narrow their retained application to the LF engine and automatic transaxle configuration. Match these sections to their VIN and equipment requirements; the separate L8/LF/L3 engine book covers engine mechanical variants rather than additional complete vehicle applications.

Text Search, Bookmarks and Diagram Detail

Search and navigation: Text sections support PDF searching, but many labels within diagrams are not searchable. The owner’s PDF has bookmarks for the main handbook; its appended navigation instructions and the other 100 PDFs have no embedded bookmarks. Small circuit labels require zooming. Red revision marks cross out portions of the supplemental factory text and drawings.

The ZIP download contains 101 printable PDFs totaling 6,073 pages, including covers, introductory material, indexes and the appended navigation instructions. Publications split into chapter files are grouped in the table above.

Powertrain Repair, Module Diagnosis and Body References

The following selected topics outline the repair content rather than reproduce the complete contents. Further subjects include sunroof servicing and wiper/washer diagnosis.

• Engine repair: Step-by-step procedures for L3 engine removal, timing-chain and VVT work, cylinder-head service, internal inspection, assembly and final checks.

• Transmission service: FN4A-EL mechanical testing and overhaul, valve-body and solenoid work, clutch hydraulic service, and G35M-R removal and installation.

• Brakes and chassis: Brake bleeding, master-cylinder and caliper service, ABS configuration, EHPAS bleeding, suspension inspection, hub/bearing work and parking-brake adjustment.

• Restraints and security: Air-bag DTC diagnosis, seat-weight sensor calibration, SAS module configuration, instrument-cluster configuration and immobilizer registration or resetting.

• HVAC service: Refrigerant recovery, evacuation and charging, compressor and evaporator work, control-system diagnosis and component-specific service data.

• Body repair: Sliding-door and liftgate adjustment, window and mirror repair, panel replacement, weld locations, structural dimensions and corrosion protection.

• Electrical references: System wiring diagrams, connector and ground-location views, diagnostic charts, component-location drawings and automatic-transaxle hydraulic circuits.

The repair sections suit trained technicians with the required scan tools and workshop equipment; the owner’s handbook addresses vehicle operation and owner maintenance.

L3 Mechanical Work and Engine Diagnosis

Mechanical coverage extends to piston, connecting-rod and crankshaft inspection, balancer-unit setup and oil-seal replacement. The engine material distinguishes removal and installation work from internal disassembly, inspection and assembly.

Engine-management diagnosis includes DTC tables, freeze-frame and pending-code access, PID/data monitoring, simulation functions, KOEO/KOER self-tests, OBD-II drive modes and after-repair verification. Together with the component-location references, these procedures support tracing faults from a stored code to the relevant circuit or component test.

The L3 tool sheets identify engine support set 49 C017 5A0, camshaft alignment tool 49 UN30 3465 / 303-465, crankshaft TDC setting pin 303-507 and fuel-pressure gauge set 49 N013 1A0C.

FN4A-EL Overhaul and Driveline Service

The automatic-transaxle material covers the oil pump, clutch packs, control valve body, differential and transaxle case, including clutch-clearance selection and differential preload. Mechanical test tables connect line-pressure results, stall testing, shift delay and road-test symptoms with possible hydraulic faults.

G35M-R service and clutch hydraulics have separate repair articles. Drive-shaft disassembly, axle and bearing service, alignment data and steering-gear work are also included.

Module Configuration, Wiring and Structural Repair

Replacement-related procedures address ABS and SAS control modules, the instrument cluster, seat-weight sensors and immobilizer functions. Separate diagnostic articles cover TPMS, audio, HVAC, keyless entry and navigation, with M-MDS or equivalent equipment specified where required.

Representative references include the L3 Control System Wiring Diagram, its monitoring relationship chart, the FN4A-EL Automatic Transaxle Cross-Sectional View, the Forward Clutch/3-4 Clutch Hydraulic Circuit, EHPAS wiring and air-bag system wiring. Connector-routing and ground-point views provide additional circuit identification.

Bodyshop coverage adds panel weld counts, cut-and-join locations, sealing areas and underbody straight-line dimensions. It also addresses ultra-high-tension steel, plastic bumper and liftgate repairs, and body color codes.

Component Handling and Repair Precautions

FN4A-EL clutch instructions warn that overcompressing a seal plate can damage its edges and uneven piston installation can damage the piston seal. Drive-shaft work identifies transaxle oil-seal damage risks from the removal bar and sharp shaft edges; ABS instructions warn that unsuitable resistance testing can damage wheel-speed sensor circuitry.

Air-bag deployment work, brake and steering hydraulic service, refrigerant recovery, and powertrain or structural removal require the isolation, support, recovery and handling precautions stated in the manuals.

Owner Operation and Navigation

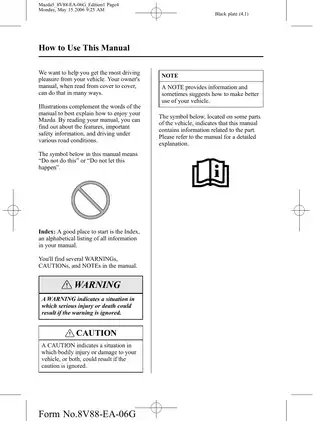

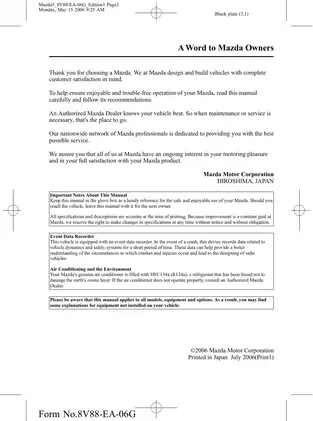

The owner’s handbook explains three-row seating, seat belts, LATCH anchors, air bags, keyless entry, immobilizer operation, transaxle controls, TPMS, climate and audio systems. Emergency starting and towing, scheduled maintenance, owner checks, tire information and vehicle specifications are included.

The appended navigation instructions cover destination entry, route guidance, address-book functions, voice recognition, navigation settings and operating troubleshooting.

A Preview of L3 Clearance and Injector Test Data

For L3 cylinder-head inspection, cold valve-clearance specifications are 0.22–0.28 mm at the intake and 0.27–0.33 mm at the exhaust.

The L3 fuel-injector resistance specification is 11.4–12.6 ohms at 20°C, providing an electrical-test reference alongside the mechanical inspection data.
